Heat Printer Mechanism JX-2R-01B
- Xiamen China
- T/T Credit Card PayPal
You May Like
Product Details
| Place of Origin | Fujian, China | Brand Name | Jingxin | |
| Model Number | JX-2R-01B | Type | Print Head | |
| Use | Other, Fujitsu | Printing Type | Other, Thermal printer |
Product Description
Specifications
1.ROHM thermal head2.Wide voltage range
3.Light weight
4.High printing speed
5.Cost-effective heat printer mechanism
1. Why choose us?

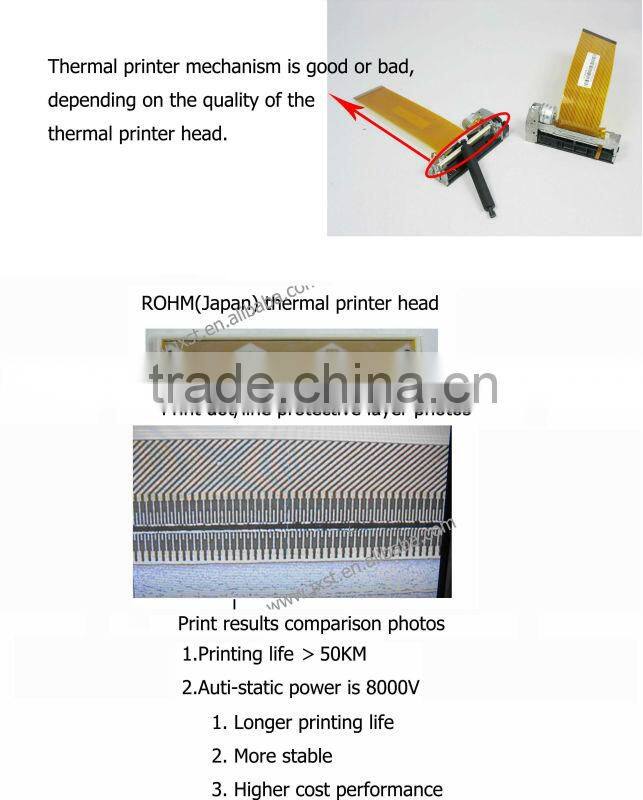

1) ROHM's thermal printer head.
2) Over 20 years' experience of engineers team.
3) Unique product design & obtained Chinese patents certificates.
4) Advanced Japan equipments.
2. Product basic information
Brand: Xiamen Jingxin
Name: Heat printer mechanism
Model: JX-2R-01B
Material: ROHM TPH, FPC, rack, drive, screw, platen, gear, spring and lead paper holder etc.
| Printing method: | Thermal dot line printing |
| Printing width: | 48mm |
| Printing speed: | 80mm/s |
| Printing life: | ≥50km |
| Motor voltage: | 4.2-8.5VDC |
| Paper cutting: | Manual |
| Path of paper traveling: | Perpendicular bend |
| Operating machine noise: | 60db (max) |
| Mass: | 40.5g |
| Size: | L=70mm,W=33mm,H=15.3mm,L(FPC)=125mm |
| Use of: | Portable printer/ POS payment terminals |

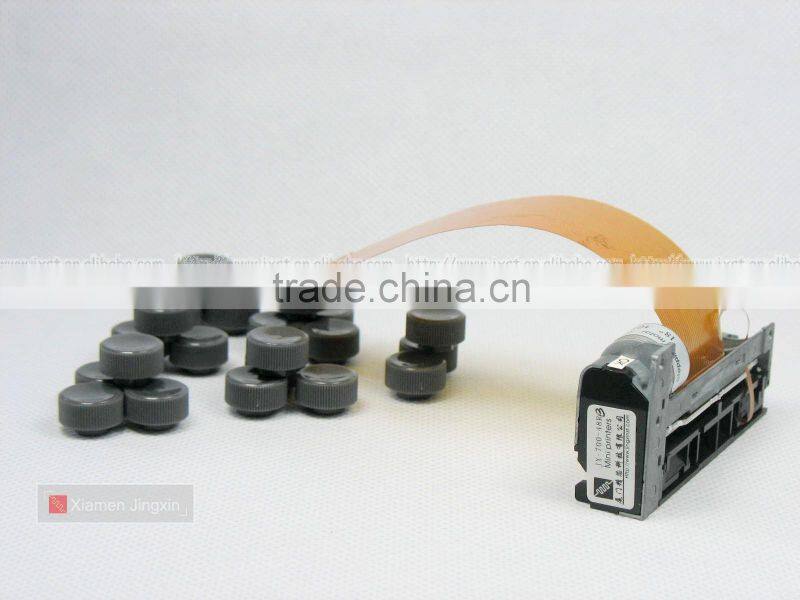

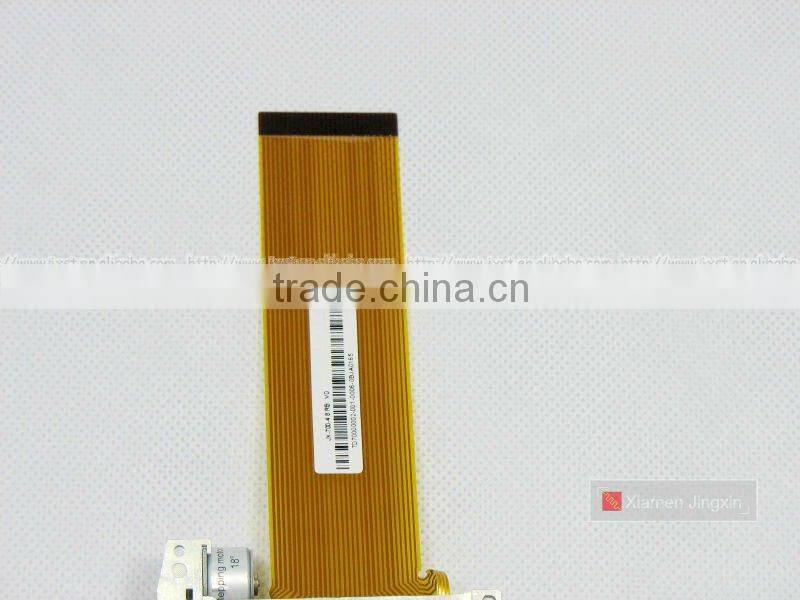

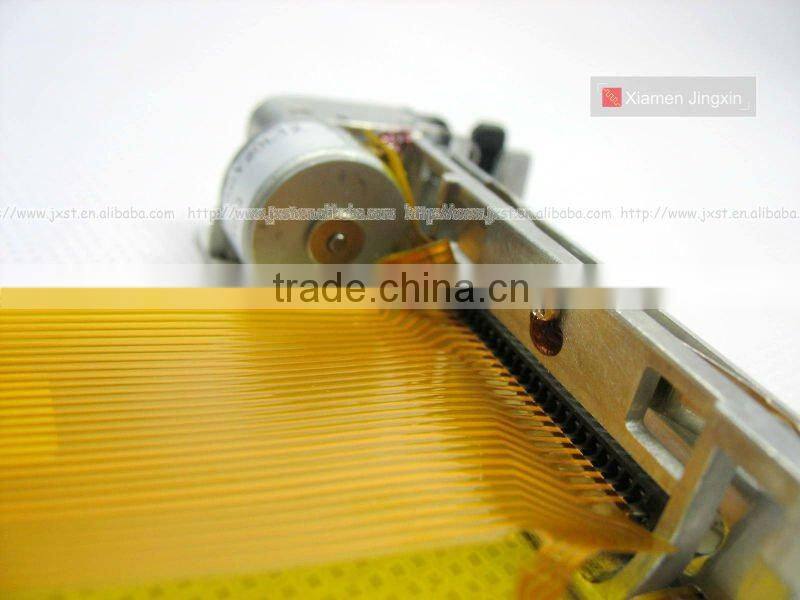

3. Products pictures
4. Certificates
1)
Certificate Standard: ISO 9001:2008
Number: CN-0212Q1127OROS
Issue Date: 13-Mar-2012
Expiry Date: 12-Mar-2015
2 )
Certificate Standard: ROHS
Number: SH9033426/CHEM
Issue Date: 18-Mar-2009
3 ) Patents of our company
5. Factory Views
