JX-2R-05X Thermal Printers Mechanism with metal main body
- 250 Piece / Pieces per Month
- Xiamen China
- T/T Credit Card PayPal
You May Like
-
80mm pos system supermarket printer mechanism JX-3R-01LS
-
2 inches high speed bluetooth thermal printer JX-2R-17
-
80mm mini bluetooth thermal printer head JX-3R-01RS
-
high speed mini mobile bluetooth thermal receipt printer JX-2R-17
-
1 inch portable bluetooth thermal printer mechanism JX-1R-01
-
1 inch mini thermal wireless printer mechanism JX-1R-01A
Product Details
| Place of Origin | Fujian, China | Brand Name | Jingxin | |
| Model Number | JX-2R-05X |
Product Description
Specifications
1.ROHM thermal head2.Wide voltage range
3.Compatible fujitsu FTP628MCL701
4. Metal body
5.Cost-effective
. Why choose us?
1) ROHM's thermal printer head.
2) Over 20 years' experience of engineers team.
3) Unique product design & obtained Chinese patents certificates.
4) Advanced Japan equipments.
2. Product basic information
Brand: Xiamen Jingxin
Name: JX-2R-05X Thermal Printer Mechanism with metal body
Model: JX-2R-05X
Material: ROHM TPH, FPC, rack, drive, screw, platen, gear, spring and lead paper holder etc.
| Printing method: | Thermal dot line printing |
| Printing width: | 48mm |
| Printing speed: | 80mm/s |
| Printing life: | ≥50km |
| Motor voltage: | 4.0-9.5VDC |
| Paper cutting: | Manual |
| Path of paper traveling: | Bend way |
| Operating machine noise: | 60db (max) |
| Weight: | 33g |

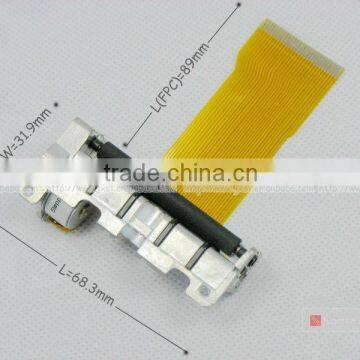

| Size: | L=68.3mm,W=31.9mm,H=18.8mm,L(FPC)=89mm |
| Use of: | Portable and desktop printer/ Handheld POS payment terminals |
3. Products pictures
4. Certificates
1)
Certificate Standard: ISO 9001:2008
Number: CN-0212Q1127OROS
Issue Date: 13-Mar-2012
Expiry Date: 12-Mar-2015
2 )
Certificate Standard: ROHS
Number: SH9033426/CHEM
Issue Date: 18-Mar-2009
3 ) Patents of our company
5. Factory Views
