Motherboard With Embedded X86 Os/ Mini-Itx With 170*170 (pcm5-928EM)

FOB Price

US$ 100 - 200 / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

1.mini-Itx 12V/5A power supply
2.RAM DDR2 SO-DIMM x1 , Up to 2GB
3.Intergraged Intel GMA950

System Specification
Processor	Onboard CPU n270(1.6Ghz)
BIOS	AMI Plug & Play BIOS – 8Mb SPI ROM
System Chipset	Intel ICH7-M+intel Atom N270
System Memory	1 x DIMM, Max 2GB DDR2 667/800
Graphic Interface	Integrated on Inte Atom N270,18-bit signal channel LVDS support VGA
Ethernet Controller	1x RJ-45, Gigabit Ethernet_RTL8111E
I/O Chipset	ITE 8718F/HX-L
Serial	4 x RS232(1xRS232/422/485), ports
USB	6 x USB ports, USB 2.0 compliant
Watchdog Timer	1~256 levels
Key Features	Support Intel Atom N270 , 4xCOM, 6xUSB

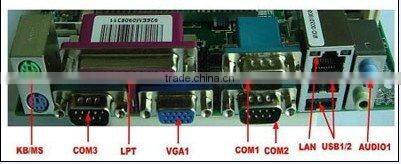

I/O Connectors
Front Side I/O	2 x USB Type-A Receptacle; 3x Com(Com1 support Rs232/422/485) 1xVGA; 1xLAN; 1xLPT; 1xPS/2; 1xMike in,mike out

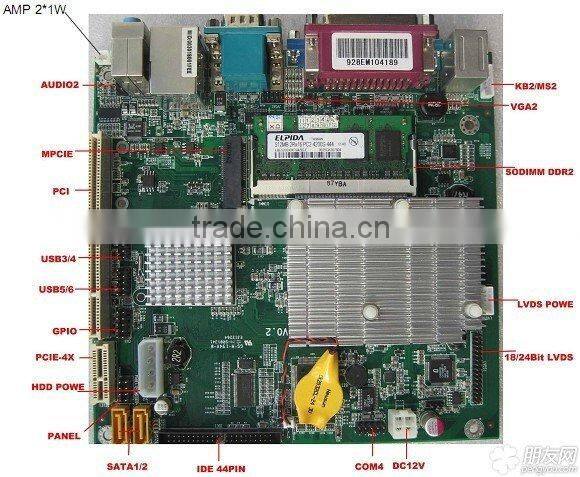

Onboard I/O	4xUSB Type-A Receptacle; 1xCom 1xRAM slot; 1x CF slot; 2x sata; 1xLVDS (24 bit)
Mechanical and Environment
Dimensions (L x W)	170x170 MM
Power Input	+12V DC IN (Lockable, Power Jack)
