Viewstar 60A 12V/24V/48V Automatic Recognition Solar Charge Controller

FOB Price

US$ 48 - 56 / Piece

1 Piece(Min. Order)

Port Shnaghai
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Hubei, China	Brand Name	hanf
Model Number	TK60D	Application	Solar System Controller
Rated Voltage	Other, 12v 24v	Maximum Current	60A

Product Description

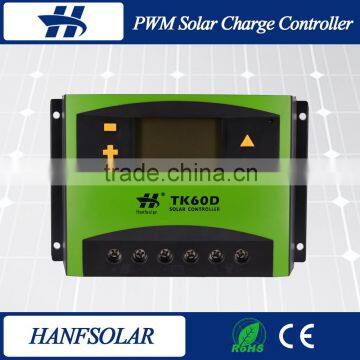

Viewstar 60A 12V/24V/48V Automatic Recognition Solar Charge Controller

Product Description

TK series is a new series of intelligent multi-purpose solar charge controller

It is equipped with explicit LED for you choice.While meeting functional needs,it also offers user-friendly

installation and operation.All in all,it is a popular high-efficient product.

Ⅰ :product parameters

Ⅱ : product details

Product size: 188 mm * 125 mm * 56 mm
1pc/color box,24pcs/ctn
Ctn size:545mm*425mm*175mm
CBM/ctn:0.047
G.W:20.2kg

Ⅲ :Features:

1.Vivid LED indicators show system battery capacity,charging and discharging state of battery

2.Protection functions such as overcharging,over discharging,overload and reverse connection.

3.PWM charging increases charging efficiency by 3% to 6%,compared with non-PWM charging.

4.The parameters of charging and discharging are preset,so no need to adjust the parameters.

(special parameters need to be advised in advance)

5.USB output function

IV :Technical data :

Model	40D	50D		60D	4048D	5048D		6048D
Input
PV voltage	≤50V				≤100V
Rated Charge Current	40A	50A		60A	40A	50A		60A
Output
System Voltage	12V/24V Auto				48V
HVD	16.00V×1/×2/×4(0.5V)
Rated Discharge Current	40A	50A		60A	40A	50A		60A
No-load Loss	≤13mA				≤15mA
Charge Loop Voltage Drop	≤0.17V		≤0.28V		≤0.17V		≤0.28V
Discharge Loop Voltage Drop	≤0.10V		≤0.10V		≤0.10V		≤0.10V
Charging Mode	PWM Multi-stage(bulk, absorption,float)
Float Charge Voltage	13.8(13V~15V)×1/×2/×3/×4
Absorption Charge Voltage	14.4V(13V~15V) ×1/×2/×3/×4
Duration of Absorption Charge	2hs
LVD	10.8V(10V~14V) ×1/×2/×3/×4
LVR	12.6V(10V~14V) ×1/×2/×3/×4
Load Working Mode	Regular Controller Mode Light Control with switch-off point at night Light control Mode
Light Control Voltage	5V(1V~10V) ×1/×2/×3/×4
Battery Type	GEL, SLD, FLD and USr(default)
Other
Man-machine interface	LCD,3 buttons
Heat Sink	AL alloy
Wiring	PCB terminal, ≤25mm2
Working Temperature	-20 ~ +55 °C
Storage Temperature	-30 ~ +80 °C
Working humidity	10% ~ 90%, No Condensation
Dimension	40A & 50A(18812548.5mm) 60A(18712556mm)
Net weight	562g			701g	564g			703g
IP Code	IP30

Main products

Product application

Company Information

About Us

FAQ

1 Q:Do you have your own factory? Can we visit?
1 A:Absolutely.You are always welcomed to visit our factory.

2 Q:How do you control the quality of the products?
2 A:Our factory has obtained ISO9001 certificate. Every process of the production is strictly controlled. And all the products will be inspected by QC before shipment.

3 Q:What certificate do you have?
3 A:We have CE,ROHS.

4 Q:What kind of payment do you accept?
4 A:We accept T/T, Paypal, Escrow, Western Union for samples’ order.

5 Q:How long the delivery time?
5 A:2-7 days for ex-stock orders.15-30 days for production.

6 Q:What kind of controller you mainly manufacturer?
6 A:We mainly produce PWM solar charge controller, MPPT solar charge controller.

7 Q:Can we print our company logo on product and package?
7 A:Yes,but quantity of order is required. And we also need you to offer the Trademark authorization to us.

8 Q:How long is the warranty period?
8 A:1 year warranty. If you order our brand products, there will be 2 years warranty.
