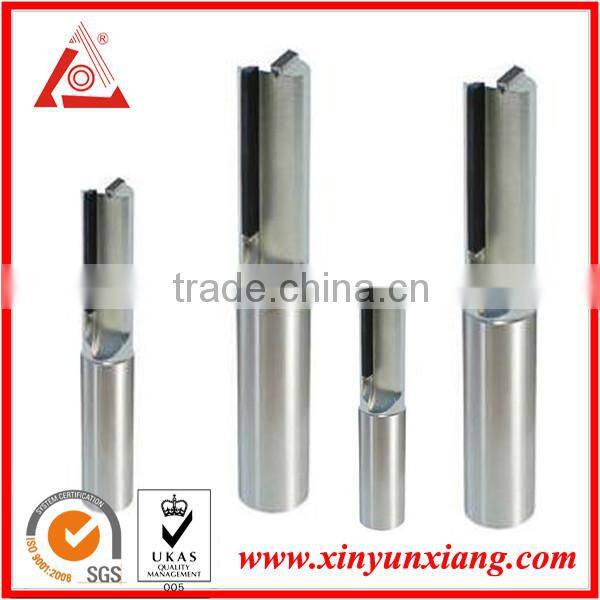

PCD Stright end mill
- Shenzhen
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | Luckgem, Luckgem | |
| Model Number | 12.7*12.7*25 | Condition | New | |
| After-sales Service Provided | No overseas service provided |
Product Description
Benefits
1. This stright bits can be used on CNC center,CNC engraving machines boring machine for MDF, solid wood, particle board etc.
2. Tunsten Carbide used is Ceratizit.
3. Life span is much more longer than standard type.
4. Panel edge is not easy to break
5.high hardness , high strength
6.Carbon steel body,Diamond or Slid carbide tipped
Specification

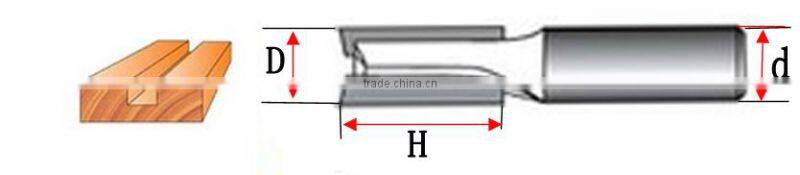

| Size | Shank Diameter(d) mm | Cutting Diameter (D) mm | Cutting height (H) mm |
| 1/2*1/4 | 12.7 | 6.35 | 20 |
| 1/2*5/16 | 12.7 | 7.96 | 25 |
| 1/2*3/8 | 12.7 | 9.52 | 30 |
| 1/2*1/2 | 12.7 | 12.7 | 30 |
| 1/2*5/8 | 12.7 | 15.9 | 30 |
| 1/2*3/4 | 12.7 | 19.05 | 30 |
| 1/2*7/8 | 12.7 | 22.20 | 30 |
| 1/2*1 | 12.7 | 25.40 | 30 |
| 1/2*1-1/8 | 12.7 | 28.60 | 30 |
| 1/2*1-1*4 | 12.7 | 31.75 | 30 |
| 1/2*1-3/8 | 12.7 | 34.90 | 30 |
| 1/2*1-1/2 | 12.7 | 38.10 | 30 |
| 1/4*1/4 | 6.35 | 6.35 | 20 |
| 1/4*5/16 | 6.35 | 7.96 | 25 |
| 1/4*3/8 | 6.35 | 9.52 | 30 |
| 1/4*1/2 | 6.35 | 12.70 | 30 |
| 1/4*5/8 | 6.35 | 15.90 | 30 |
| 1/2*1/2*1-1/4 | 12.7 | 12.7 | 31.75 |
| 1/2*1/2*1*1/2 | 12.7 | 12.7 | 38.10 |
| 1/2*1/2*2 | 12.7 | 12.7 | 50.80 |
| 1/2*2-1/2 | 12.7 | 12.7 | 63.50 |
| 1/2*1/2*3 | 12.7 | 12.7 | 76.20 |
| 1/4*1/4*1-1/4 | 6.35 | 6.35 | 31.75 |
| 1/4*3/8*1-1/4 | 6.35 | 6.35 | 31.75 |
un-standard sizes can be customized according to customer's requirement.

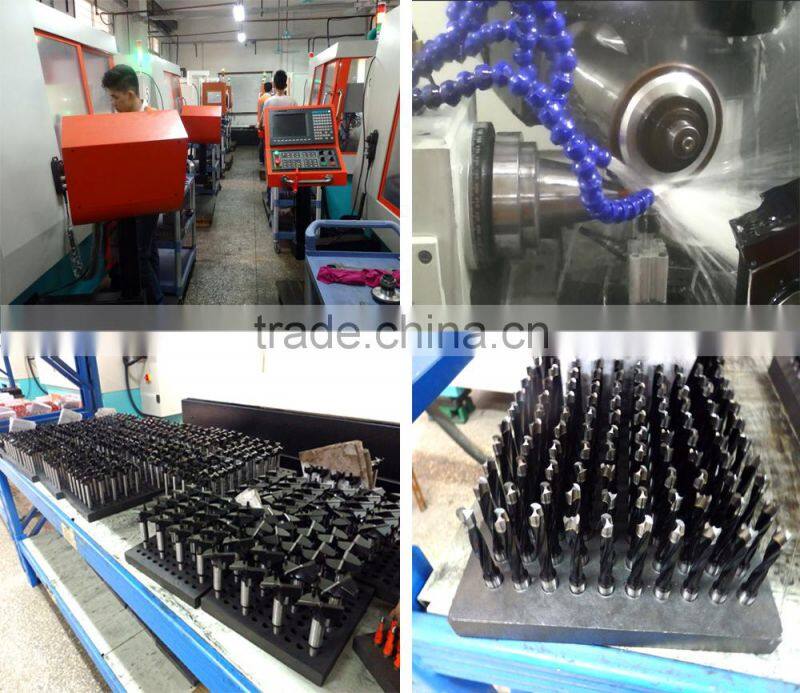

Shenzhen XinYunXiang Precision Cutting Tools Company is a high technical private enterprise established in 2000. We are specialized in not only safe, efficient, precision cutting tools but also the research and production of Tools systems. Our products are widely used in a range of fields, such as furniture, floor processing, building materials, PCB, cars, aerospace, etc. With years of continuous exploration and development, the company has a number of highly qualified management and research personnel, has accumulated abundant production experience, has introduced the world's most advanced production line and the most sophisticated means of test, to make sure every our product can meet with the ISO9001:2008 Management system certification of DAS organization in UK.
1. Factory Directly sales
2. Germany import machine ,High advanced
3. Export Raw maetrail (Taiwan CB- CERATIZIT and Luxembourg CERATIZIT)
4. High quality with competitive price
5. Wonderful service ( Pre-sale service and After sale service)
