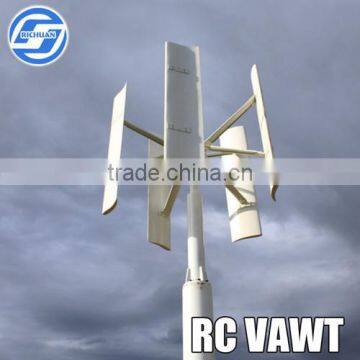

30KW magnet generator,wind generator,vertical wind turbine,magnet motor

Specifications

Product performance:

 Start rapidly under ultra low wind speed

   It can start generating power under very slow wind speed condition, wind speed

   3m / s ~ 25m / s are the generating range. More than 1/3 of the time in advance of

   the general wind power generation, the power generation efficiency has increased

   of 30%, which greatly improves the utilization of wind energy.

 Mute design multiple protection
   Super mute double design, with FRP rotor blades and airfoil, it's toughness strength

   is greatly improved, lighter weight, stronger tensile strength. Run more smoothly,

   greatly reduced the occurrence of crashing.


Anticorrosive and antirust durability
   Richuan generator has its unique internal design. It will work properly and smoothly

   under the arctic, high temperature, high humidity, sands blown even in the sea, with

    a high reliability. The life span is up to 20 years.

    1.One year warranty for whole system

 The permanent magnet generator:

Blades:

FRP, (Fiber Reinforced Polymer) acronym, the existing CFRP, GFRP, AFRP, BFRP so on.

Chinese in FRP refers GFRP. FRP composite material is a fiber material of the base material

according to a certain mixing ratio, after a special extrusion die, drawing the formation of

high-performance materials.Since the resin used in different varieties, so there are glass fiber

reinforced polyester, glass fiber reinforced epoxy , phenolic FRP said. Light and hard,

non-conductive, high mechanical strength, recycling less resistant to corrosion.

The inverter:

1.digital design, simple structure, powerful, stable and reliable

2.using annular isolation no-load loss of transformer, inverter with high efficiency

3.pure sine wave, automatic voltage regulator, output and frequency, waveform distortion rate ≤ 5%

4.strong overload capacity, 120% overload can work normally for 1 minutes; 150% overload can

   work normally for 10 seconds

5.high reliability; high stability; high shock resistance; low noise, noise≤ 40dB

6.input / output circuit complete isolation design, improve product stability

7.has over-voltage, under-voltage, overload, overheating, short circuit, lightning protection function

   and alarm function

Tower:

In plywood boxes:

Connection diagram:



CE certificate:
