China Richuan dynamo prices residential wind power generator system

 1.Low starting torque.

 2.Low start wind speed.

 3.Low speed permanent magnet generator.

 4.No vibration & low noise.

 5.All of our products confirm to CE.

 6.PWM constant voltage recharge function provides stable output.

 7.Reliable wind power system by multifunction controller.

 8.On-grid or Off-grid wind power system optional.

 9.2-year warranty for generator and 20-25 years service life.

10.Electronic brake and manual brake, optional.

11.High efficiency and Low mechanical resistance energy loss.

12. Special sealed wind turbines, moisture, sand and water proof.

Rated power

60KW

Max power

65KW

Output voltage

690V

Rated wind speed

10m/s

Rotor diameter

8m

Blade material

FRP

Start-up wind speed

3m/s

Work wind speed

3-25m/s

Rotation speed

60r/min

Number of blades

7

Turbine weight

3500kg

Tower height

18m

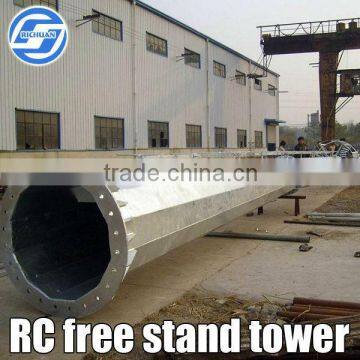

Tower type

Steel (Q235B)

Output controller system

Controller , Inverter

ON-GRID

Control system

            Controller

Rated output voltage of generator:AC690v

Rated output current:70A

way of protection:Manual,brake,unload.

Operating environment temperature:-10℃~40℃

Relative humidity:30%~90%,>90%(No condensation)

Operating environment height:<2000m

Protective level:IP44

Way of cooling:enforcement

Noise:30-40dB

Inverter

Output way of power:three phase/four lines

Rated power:100KW

Normal voltage:380v±3%

Normal frequency:50Hz±0.05

Waveform:pure sine wave

Distortion of total sinusoidal:linear load 5%,nonlinear load <8%

Dynamic load and voltage transient:<5%

Overload capacity:overload125% 2min,overload 150% 1min

Working temperature of environment:-10℃~40℃

Relative humidity:<90%

Relative humidity:<2000m(100m increase 1% decreases)

Way of cooling:enforcement air-cooled(temperature controlled)

Noise :50-65dB

1.Tower type and tower height can be changed as per your request.

2. Working voltage can be special requested.

3. For the details,please feel free to contact us.
