China factory Diamond Wire Saw For Steel
- Shanghai Shenzhen Ningbo Xiamen etc
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Jiangxi, China | Brand Name | HUISEN | |
| Model Number | HS-Diamond Wire Saw For Steel | Type | Power Tool Parts |
Product Description

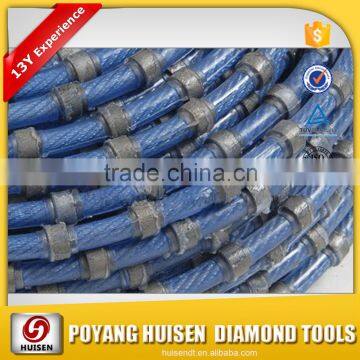

Diamond Wire Saw For Steel
Huisen profoessional factory offer Diamond Wire Saw For Steel
Diamond Wire Saw, Sintered wire saw, diamond wire, multi diamond wire saw fixed by Rubber, Plastic, Spring with Sintered Diamond Wire Saw Bead or Electroplated Diamond Wire Saw Beads, to be widely used for the Stone Quarry, Stone Block, Stone Slab, as the Granite, Marble, Limestone, Travertine, Sandstone, Basalt, Lava Stone etc, and Reinforce Concrete, application for the Quarry cutting, Block and Slab squaring and contouring, as well as special application of cutting reinforced concrete.
1:Easy Manipulation and Low Cost
2:Low power consume and less raw material waste
3:Flexibility,no limited for the size of work place
4:Strict control the quality of raw materials,
5:High temperature resistance, Corrosion resistance,Tensile properties
6:Automatic production ensures stable quality and performance.
7:Safe,high efficiency and environment protecting.
8:According to the usage difference,diamond wire saw mainly used for reinforced concrete cutting,for quarrying,for profiling,for slab cutting,for multi wire saw cutting.
Beads of diamond wire saw for marble quarrying could be ordered specially, other specification are avaliable upon request.
Specification and Performance Parameters for Diamond Wire Saw For Steel
| For Granite Quarrying | |||||||
| Identification | Specification | Reinforcement | Beads number | Cutting material | Line speed | Cutting speed | Wire life |
| HSGM15 | Dia 11.5mm | Rubber | 40/m | Hard granite | 18-22m/s | 2-4 m2/h | 8-10m2/m |
| Middle hard granite | 22-25m/s | 4-8 m2/h | 10-18 m2/m | ||||
| HSGM110 | Dia 11.0mm | Rubber+Spring | |||||
| Soft granite | 25-30m/s | 8-12 m2/h | 16-22 m2/m | ||||
| HSSM115 | Dia 11.5mm | Rubber | 40/m | Hard granite | 32-38m/s | 5-10 m2/h | 10-20 m2/m |
| HSSM110 | Dia 11.0mm | Rubber+Spring | Soft granite | 30-32m/s | 1-5 m2/h | 20-30 m2/m | |
| For Marble Quarrying | |||||||
| Identification | Specification | Reinforcement | Beads number | Cutting material | Line speed | Cutting speed | Wire life |
| HSMM115 | Dia11.5mm | Rubber | 40/m | Hard marble | 20-30m/s | 5-10 m2/h | 15-25m2/m |
| HSMM110 | Dia 11.0mm | 37/m | Middle hard marble | 20-35m/s | 10-15 m2/h | 20-35m2/m | |
| HSMM105 | Dia 10.5mm | 33/m | Soft marble | 25-35m/s | 15-20 m2/h | 30-50m2/m | |
| HSMM110 | Dia 11.0mm | Spring+Plastic | 30/m | Hard marble | 20-30m/s | 5-10 m2/h | 15-25m2/m |
| 30/m | Middle hard marble | 20-35m/s | 10-15 m2/h | 20-35m2/m | |||
| HSMM105 | Dia 10.5mm | 28/m | Soft marble | 25-35m/s | 15-20 m2/h | 30-50m2/m | |
PRODUCT APPLICATION: Mainly used in quarrying of different types of marble materials,also can be used in mable block squaring
| FOR BLOCK SQUARING | ||||||||
| Identification | Specification | Reinforcement | Beads number | Cutting material | Line speed | Cutting speed | Wire life | type |
| HSGS110 | Dia 11.0mm | Rubber | 40/m | Hard granite | 25-30m/s | 5-10m2/h | 7-9 m2/m | Granite squaring |
| Middle hard granite | 25-30m/s | 10-15m2/h | 8-15m2/m | |||||
| HSGS105 | Dia 10.5mm | plastic | 37/m | Soft granite | 25-30m/s | 15-20m2/h | 16-22m2/m | |
| HSMS110 | Dia 11.0mm | Rubber | 40/m | Hard marble | 30-40m/s | 10-20m2/h | 15-30m2/m | Mrable squaring |
| Middle hard marble | 30-40m/s | 20-25m2/h | 20-40m2/m | |||||
| HSMS105 | Dia 10.5mm | plastic | 37/m | soft marble | 30-40m/s | 25-30m2/h | 30-50m2/m | |
PRODUCT APPLICATION:Mainly used in all kinds of granite and marble blocks squaring and cutting etc.
| FOR PROFILING | ||||||||
| Identification | Specification | Reinforcement | Beads number | Cutting material | Line speed | Cutting speed | Wire life | Type |
| HSGP088 | Dia 8.8mm | Rubber | 40/m | Hard granite | 25-30m/s | 7-10m2/h | 7-9m2/m | Rranite profiling |
| Middle hard granite | 25-30m/s | 10-15m2/h | 8-15m2/m | |||||
| HSGP084 | Dia 8.4mm | Plastic | 37/m | Soft granite | 25-30m/s | 15-20m2/h | 16-22m2/m | Marble profiling |
| HSMP088 | Dia 8.8mm | Plastic | 37/m | Hard marble | 30-40m/s | 15-20m2/h | 20-30m2/m | |
| Middle hard mrable | 30-40m/s | 20-25m2/h | 25-35m2/m | |||||
| HSMP084 | Dia 8.4mm | 33/m | Soft marble | 30-40m/s | 25-30m2/h | 30-40m2/m | ||
PRODUCT APPLICATION:Mainly used in sizing and circular all kinds of granite and marble slabs,and some special shape surface processing etc.
| FOR REINFORCED CONCRETE | |||||||
| Identification | Specification | Reinforcement | Beads number | Cutting material | Line speed | Cutting speed | Wire life |
| HSCR115 | Dia 11.5mm | Spring+Plastic | 40/m | Normally reinforced | 20-30m/s | 2-6m²/h | 4-10m²/m |
| HSCR110 | Dia 11.0mm | Strengthening reinforced | 20-25m/s | 2-4m²/h | 2-4m²/m | ||
| HSCR105 | Dia 10.5mm | Steels or metal structure | 20-25m/s | 1-2m²/h | 1-2m²/m | ||
PRODUCT ANNLICATION:Mainly used in cutting reinforced concrete,other steel structure,and tearing down house,road,bridge and other buildings.
| Multi-Wire Saw Cutting | |||||||
| Identification | Specification | Reinforcement | Beads number | Cutting material | Line speed | Cutting speed | Wire life |
| HSMM115 | Dia 8.5mm | Plastic | 37/m | hard granite | 25-30m/s | 0.5-0.8m²/h | 6-10m²/m |
| HSMM110 | Dia 7.5mm | Middle hard granite | 25-32m/s | 0.6-1.2m²/h | 9-12m²/m | ||
| HSMM105 | Dia 6.5mm | soft granite | 25-32m/s | 1.0-1.6m²/h | 11-15m²/m | ||
PRODUCT APPLICATION :Suitable for various imported and China made multi-wire saw machine,be widely uesd for cutting granite blocks with different hardness,can also be used in marble block cutting.
