W Sharp Diamond Core Drill Bit Segment For Marble
- Shanghai Shenzhen Ningbo Xiamen etc
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Jiangxi, China | Brand Name | HUISENDT | |
| Model Number | HSGB-Diamond Core Drill Bit Segment For Marble | Type | Power Tool Parts |
Product Description

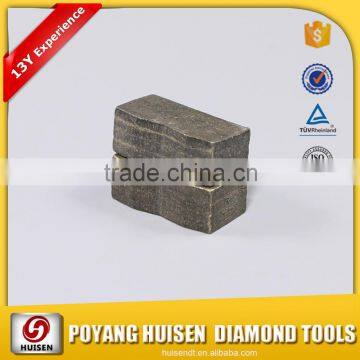

Diamond Core Drill Bit Segment For Marble
Product Details for Diamond Core Drill Bit Segment For Marble
Diamond segmentsThe segments are attached to the core by brazing with silver solder;
High-quality Diamond Segment Made from High-grade Diamond by Special and Advanced Techniques;
Segment for diameter 100mm to 3000mm blade;
Specifications supplied by customers are available;
High cutting efficiency and long life;
Forms:
M shape, K shape, Taper shape, Flat shape, T shape, U shape, etc.
Application for Diamond Core Drill Bit Segment For Marble
Diamond Segment can be produced for cutting granite, marble, asphalt, tile, concrete, fire-proof materials or for continuous polishing machine. Our diamond segments for large circular saw blades are always manufactured in sandwich design. No matter what the shapes, the aim is to obtain a good cooling and easy flush away the chipping. Diamonds and bond in the outer and inner layers are carefully designed to ensure cutting stability.
Our advantage for Diamond Core Drill Bit Segment For Marble
1. High percent of bond materials
2. High grade of diamonds
3. Over 13 years experence with hundreds of formula against different stones
4. Competitive price and stable quality
5. Strict quality control
6. Our products last long life and give a sharp cut
| Model Number | Inch | Diameter | Length | Height(Flat) | Height(Flat) | Height(type) | Segment No. | Use for |
| (in) | (mm) | (mm) | (mm) | (mm) | (mm) | |||
| HSGB300 | 12 | 300 | 38 | 3.0/3.2 | 10/12/15 | 10/12/15 | 21 | single or multi-blades |
| HSGB350 | 14 | 350 | 38 | 3.2/3.4 | 10/12/15 | 24 | ||
| HSGB400 | 16 | 400 | 38 | 3.6/3.8 | 10/12/15 | 28 | ||
| HSGB450 | 18 | 450 | 38 | 3.8/4.2 | 10/12/15 | 32 | ||
| HSGB500 | 20 | 500 | 38 | 4.4/4.8 | 10/12/15 | 36 | ||
| HSGB600 | 24 | 600 | 38 | 4.8/5.2 | 10/12/15 | 42 | ||
| HSGB800 | 32 | 800 | 22.5/24 | 6.6/7.4 | 12/15/20 | 11.5/12.5 | 70 | |
| HSGB900 | 36 | 900 | 22.5/24 | 7.0/7.8 | 12/15/20 | 80 | ||
| HSGB1000 | 40 | 1000 | 22.5/24 | 7.6/8.2 | 12/15/20 | 92 | ||
| HSGB1200 | 48 | 1200 | 22.5/24 | 7.8/8.4 | 12/15/20 | 92 | ||
| HSGB1400 | 56 | 1400 | 22.5/24 | 8.0/8.8 | 12/15/20 | 96 | ||
| HSGB1600 | 64 | 1600 | 22.5/24 | 8.4/9.2 | 12/15/20 | 108 | ||
| HSGB1800 | 72 | 1800 | 22.5/24 | 9.2/9.8 | 12/15/20 | 14/15 | 120 | |
| HSGB2000 | 80 | 2000 | 22.5/24 | 9.6/10.2 | 12/15/20 | 128 | ||
| HSGB2200 | 88 | 2200 | 22.5/24 | 13.6/14.2 | 12/15/20 | 132 | ||
| HSGB2500 | 100 | 2500 | 22.5/24 | 14.5/15.1 | 12/15/20 | 140 |
Details for Diamond Segment:
1) H logo for quality assurance
2) High grade of diamonds
3) High percent of bond materials
4) Precise segment size
5) Competitive price and stable quality
6) Over 13 years experence with hundreds of formula against different stones
What is the application of Diamond Segment?
It can be used in combination saw, single saw, mine saw and so on.
What is the Guarantees/Warranties?
What is the Production process?
All production equipment by the computer integrated digital control, every day before and after the use of a detailed examination and cleaning, and to check the marchine in time.
At the same time,our Quality Department will check each step very carefully.
Huisen is a multicultural company, not only we focus on the high quality of our products, but also we protect and care about our employees, pleasant and passionate working attitude is the guarantee for qualified products and we have achieved this in company.
Smile is the universal language in the world, we hope you can come to China and visit our company, we warmly welcome you with our sincere smile.
