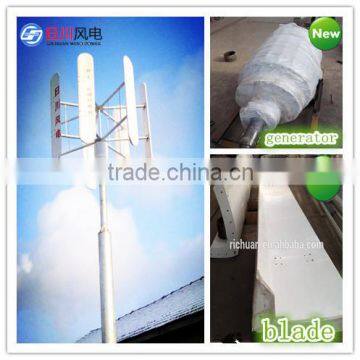

Wind Generator VAWT 10kw On Grid and Off Grid
- Qingdao port
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | RICHUAN | |
| Model Number | RC-VAWT10000 | Type | Wind Power Generator |
Product Description
Our company product and sale any kinds of small wind power equipment.300w-- 30kw power of wind turbines can provide household,small communities and small microwave stations,such as wind power power.The equipment adopts advanced computer integrated circuit to the automatic control of wind generator system, can run in various harsh climate and reliable automatic.
2.small vibration and tiny friction, stable rotation in higher speed
3.streamlined wind turbine body and blade outline design
4.Blades have 2 kinds ,300w-1kw for high-rigidity FRP materials and blades are dynamic-balanced
5.Noice level below 55dBaround the wind turbine tower
6.state of the art, workmanship and beautiful appearance
7.Use magnetic saturation technology, with 20years designed life;
8.Select high quality bearing, free to maintenance;
9.Anti-twist device, generator can whirl in each direction
10.Anti strong wind, the blade protect itself automatically,
11.Supply matched controller/inverter, make the system more stable.
Product advantages
• Magnetic saturation design
• Bearing import frm Tapan
• Pitch-controlled system
• Blades are casted ubto molding at one time,blance up to 99%
• low torque start-up technique
• 4 patents technology
Main Specification
• Low start-up wind speed : 3m/s
• Rated wind speed : 12m/s
• Safety wind tspeed : 35m/s
• Cut-in wind speed : 3m/s
Quanlity guaranty
• 5years free-warranty for generator
• CE,ighest quality manufacturing standards(ISO9001)
• Pitch-controlled system
• Strong wind resistance and high survival wind speed
Parameters
10000W hybrid solar wind power generator | |
Rated power | 10000w |
Max power | 12000w |
Wind rotor diameter | 5m |
Blade quantity | 7pcs |
Start torque | 71.62NM |
Star-up wind speed | 3m/s |
Rated wind speed | 12m/s |
Working wind speed | 3-35m/s |
Survived wind speed | 45m/s |
Rated rotate speed | 20 |
Working voltage | 240v |
Blade material | FRP strengthened |
Generator style | three phase |
Speed regulation method | Electromagnetic Braden+yawing |
Wind turbine main body | 600kg |
Advice tower height | 10m |
Advice solar power | 1000w-2000w |
Advice control panel | 2000W |
Advice inverter | 10KVA |
Advice battery | 150AH*30 |
Control system parameters
Micro-computer intelligence controller
| Type | 10KW-240Vdc |
| Wind turbine rated power | 10000w |
| Wind turbine max. power | 12000w |
| Battery | 240vdc |
| Function | Rectifier,charge, control |
| constant pressure voltage | >290 Vdc |
| 3-phase load voltage of the wind turbine | 300±5Vdc |
| Wind turbine recovery charging voltage | 280±5Vdc |
| Low-voltage of the battery | 200±5Vdc |
| PWM fuse | 63A |
| Charging fuse | 80A |
| Noise (1m) | <40dB |
| Cooling method | Forced air cooling |
| Type | ND220-10KD |
| DC input | Input rated voltage | 220 VDC |
| Input rated current | 22.7 A | |
| Input DC voltage range | 180-300 VDC | |
| AC input | Allow input voltage range | 240 VAC ± 15% |
| Input rated current | 45.5A | |
| AC output | Rated capacity | 10KV |
| Output rated power | 8kv | |
| Output rated voltage and frequency | 50Hz / 60Hz | |
| Output rated current | 42A | |
| Waveform distortion (THD). (Linear load) | ≤3% | |
| Crest factor (CF) | 3:1 | |
| Overload capacity | 120%, minutes 150%,second | |
| Inverter efficiency | 90% | |
| Working Environment | Dielectric strength | 1500VAC,1minute |
| Noise (1m) | ≤50dB |
Provided customized solution.
One-stop purcashing service
Quickly response for customer question within 24 hours
Provide free spare parts during warranty period
Online technical support
OEM
Qingdao Richuan precision Machinery Co,Ltd. is a manufacture enterprise which develops, manufactures and sells small and medium complete set of wind turbine.Normally we produce the vertical axis and the horizontal axis wind-driven generator.Our company has design department and system configuration team, thus we can provide power supply system solutions depending on various customers' requirement .Moreover, we have engineering department, our engineers can provide product's installation guidance and training to our customers.
