T8 Pink 8W 60cm SMD 5630 Price Led Tube Light 600mm

Specifications

 8W T8 600mm 2ft Samsung SMD 5630 led tube light 60cm

[1]Product Appearance

Specialty:

1, To make the Earth more green and the sky more blue, please use LED lights, LED tube light without UV, mercury and other harmful materials, built-in wide voltage power supply, input voltage AC100-240V, frequency 50 / 60Hz, constant current output, low power consumption, start speed, quake-proof, which belongs to the twenty-first Century recognized green lighting products;

2, Traditional fluorescent lamps using an alternating current, so it will produce 100-120 times strobe per second. LED lamps directly converted alternating current to DC, without stroboscopic, can protect eyes;

3, LED tube light has efficient conversion, can reduce the heating, so it is energy saving and has longer lifespan, which can completely replace traditional fluorescent lamp. The LED tube light power consumption is 1/3 below the traditional daylight lamp, and the lifespan is 10 times above traditional fluorescent lamp, can be used for a long time, and reduce maintain charge;

4, Safety and stable quality, can withstand high voltage 4KV, you can use it more assured;

5, Quiet and comfortable, suitable scope: Lighting housing, bus, supermarkets, shopping malls, office buildings, schools, factories and so on;

[2]Shape Structure

Shell Material: Aluminum Alloy+PC    Shell Color:Silvery white

Net Weight:0.2Kg

Unit:mm  ±0.5

[3]Parameter

[4]Diagram of degradation for Luminous

 1,The data above has been got at a temperature of 25 celsius degree and taking 1000 hours
running by a nonstop way.

2,Degradation of luminous flux of LED lamps depends on environmental conditions. The higher
the temperature, the longer the using time, the faster luminous flux drops.

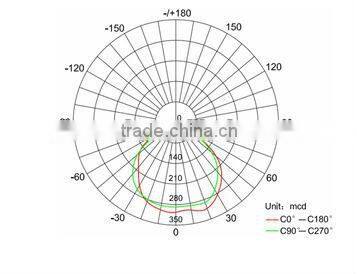

 [5]Photomatric Data

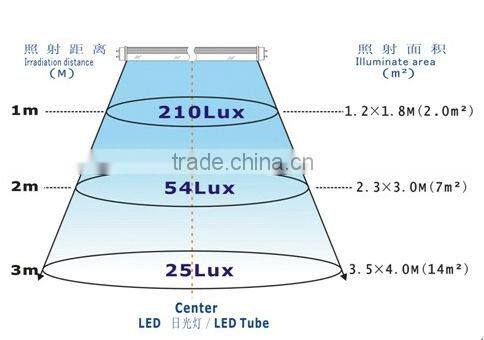

[6]Illumination Distance/illuminance/Irradiated Area

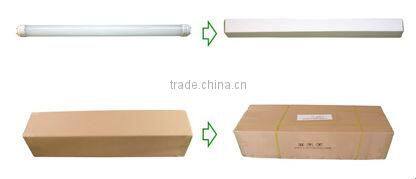

[7]Packing specification

Packing Dimension:( L)655×(W)375×(H)375mm  100PC/CTN  35Kg

[8]Using and installing instructions

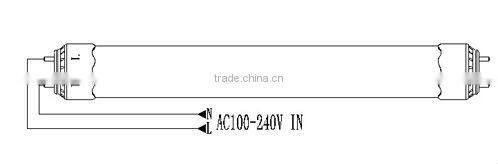

A. Conventional Installation

As the chart shows, Connect the tube with the working voltage 100V~240VAC(frequency 50/60 Hz)
from two end caps, , it can work after switch on.

B. Replacing conventional fluorescent tube

When replacing the traditional fluorescent lamp, please remove the starter firstly, then connect the input line to ”L”,
and install the tube directly into the bracket for using.

[1]Traditional fluorescent connection mode

[2]LED lamp connection mode

Attentions:

1. Only professional electrician can install the lamp, please check the lamp very carefully before installation.

2. Please install the lamp follow up the installation procedure, make sure the screw has been wrested very
tightly, the wires have been connected properly, .Please operate accordingly.
