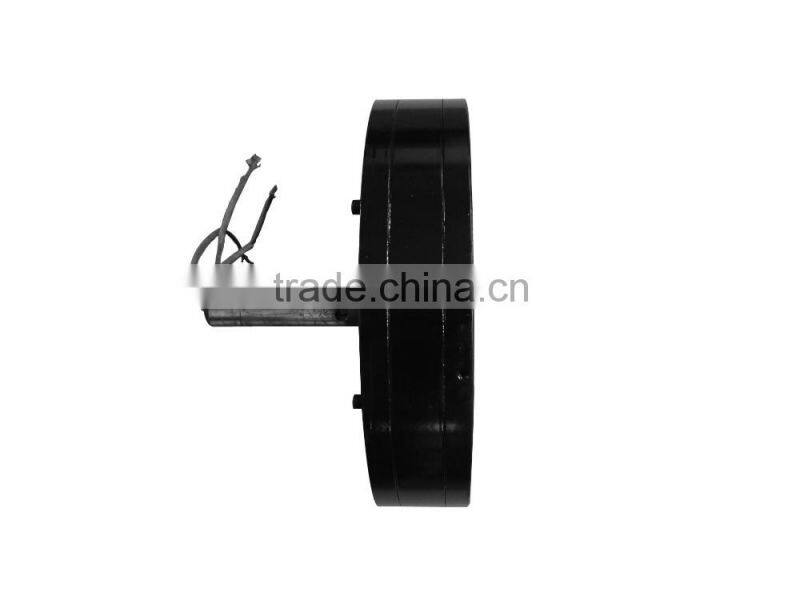

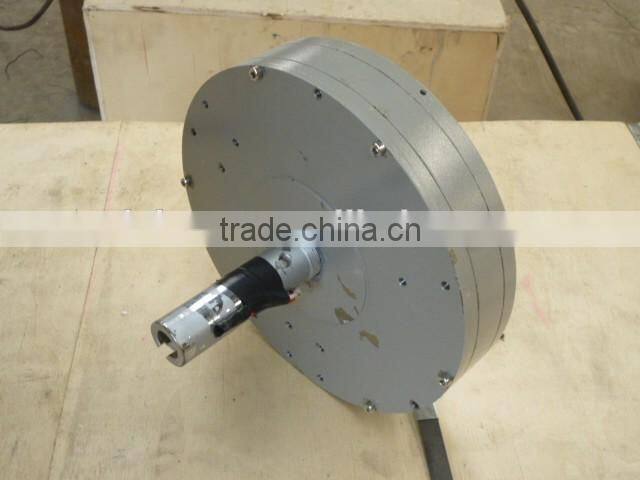

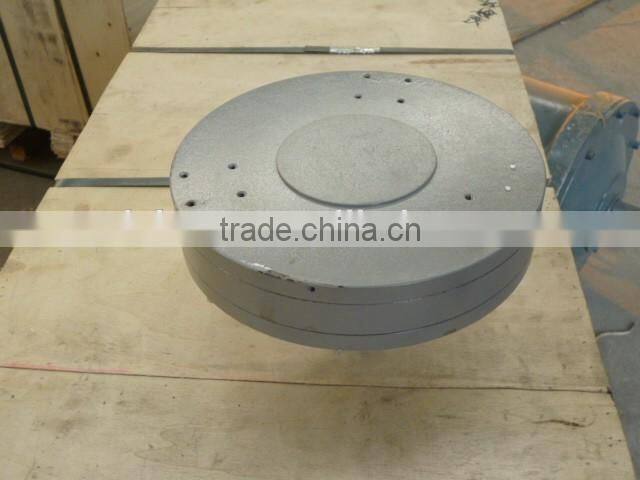

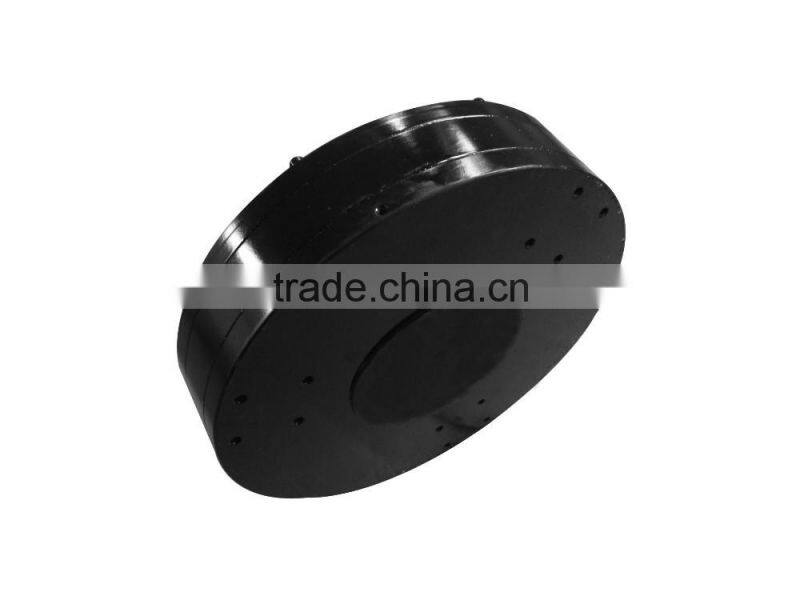

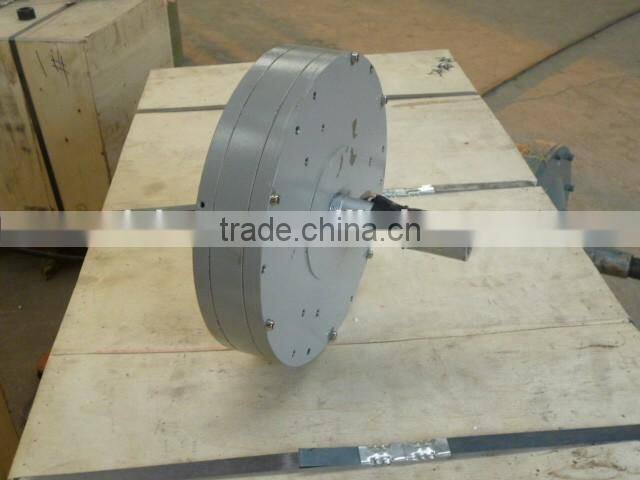

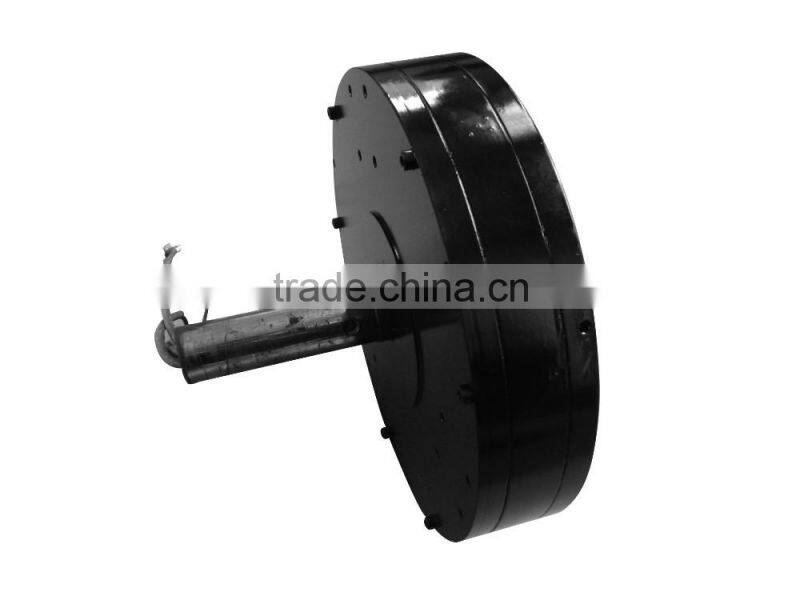

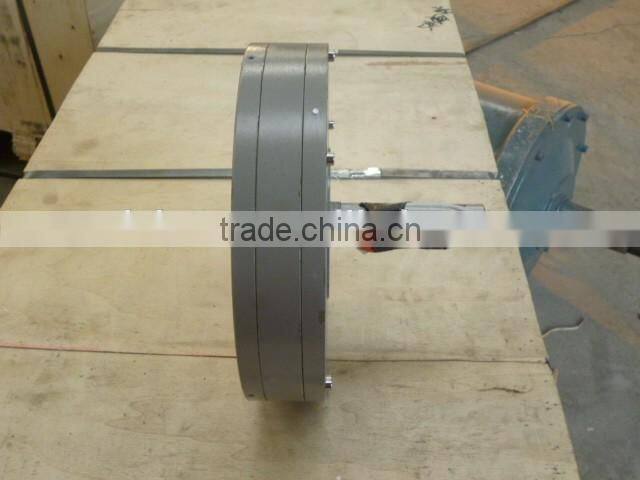

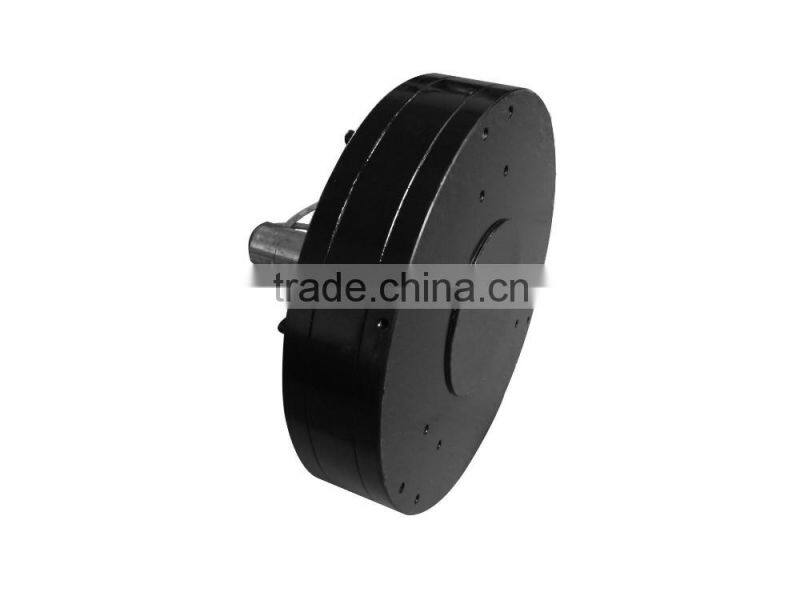

1000W/150rpm Coreless Disc Type Generator; Low RPM PMG (Permanent Magnet Generator)
- Qingdao
You May Like
-
5000W Coreless Disc Type Generator; Low RPM PMG (Permanent Magnet Generator)
-
Coreless Disc Type Generator; Low RPM PMG (Permanent Magnet Generator)
-
5KW Low RPM, PMG (Permanent Magnet Generator)
-
50KW Low RPM, PMG (Permanent Magnet Generator)
-
CE Approved Richuan 1kw 2kw 3kw 5kw 10kw Wind up Dynamo Generator
-
2015 Disc Coreless PMG ! Richuan 1KW Vertical Wind Turbine Permanent Magnet Generator
Product Details
| Place of Origin | Shandong, China | Brand Name | RICHUAN | |
| Model Number | RCVAD- 1KW | Type | Wind Power Generator |
Product Description
Product performance and advantages:
1. Generator Performance
Qingdao, Sichuan Precision Machinery Co., Ltd. disc hollow core low speed permanent magnet generator has a rated, low wind start, small size, low power consumption, light weight, compact, high efficiency and many other features.
1 No core, no hysteresis and cogging, low starting torque
2 No iron loss, high efficiency
3 Unique coreless winding technology design sophisticated precision coil
4 Using rare-earth permanent, multi-polar, small gap, high power density, high output power
5 Low-speed direct drive, no torque ripple
6 Compact, high-volume power ratio
7 Since no iron loss, low heat, temperature rise little
8 Simple turbine structure, easy to install
9 Brushless structure, maintenance-free
2. Use Range
10kw vertical axis wind turbines; diesel generator petrol class; hydroelectric
3. Performance parameters
No. | parameters | Unit | Data |
1 | Rated power | KW | 1 |
2 | Rated rotation | RPM | 150 |
3 | Rated voltage | V | 48VAC(Customized) |
4 | Rated current |
| 12 |
6 | Efficiency |
| >90% |
7 | Resistance (line - line) |
| - |
8 | Winding form |
| Y |
9 | Insulation resistance |
| 100Mohm Min(1500V DC) |
10 | Leakage Level |
| <5 ma |
11 | Starting torque | N/M | <0.5 |
12 | Phase |
| Three-phase |
13 | structure |
| outer rotor |
14 | stator |
| Air-core coil |
15 | rotor |
| Rare earth permanent magnet |
16 | Generator outer diameter | mm | 450 |
17 | Generators length | mm | 258 |
18 | Generator weight | kg | 48 |
19 | Shaft diameter | mm | 59 |
20 | Housing Material |
| Aluminum Alloy |
21 | Shaft material |
| Carbon steel |
22 | Shaft | NSK | Angular contact + deep groove ball |
