Home > Products > Generator > 10KW Silent Diesel Generator set KWD6500ETS Quality Choice

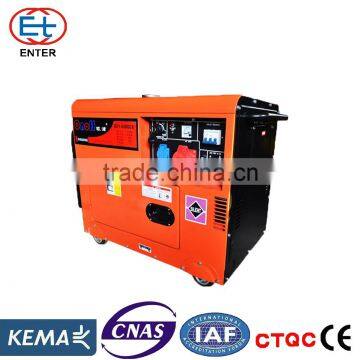

10KW Silent Diesel Generator set KWD6500ETS Quality Choice

FOB Price

US$ 480 - 580 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

*Radiator 40°C max, fans are driven by belt, with safety guard

*12//24V DC start motor and storage battery

*Brushless, self-excited, IP22/23, insulation H alternator

*Absorber to reduce vibration

*Dry type air filter, fuel filter, oil filter

*Main line circuit breaker

*Control system: Key start control panel as standard, digital auto start or ATS system is optional

*8 hours operation base fuel tank

*High efficient muffler to reduce noise

*Ripple flex exhaust pipe, exhaust siphon and flange etc.

*Genset type: open type or soundproof/silent type, or trailer type

* Maintenance and operation manual, quality certificate, etc.

*Rigorous testing must be done before delivery, including 50% load, 75%load, 100%load, 110%

and all protection function(over speed stop, high water temperature, low oil pressure, battery

charging fail, emergency stop)

You may like

Technical parameter

MAIN TECHNICAL DATA SHEET

GENERATOR SET
Genset model	GF-50
Prime power (KW/KVA)	90/112.5
Standby power (KW/KVA)	108/135
Frequency & voltage	230/400V, 50HZ
No. of Phase	3
Genset type	Silent/Sound proof
Reference Dimension & Weight (W*H, mm)/KGS	255011001800,1250KGS
DIESEL ENGINE
Engine brand & Model	HUAFA, HFR6105ZD
Rated output	90KW
Rated Speed	1500RPM
Engine Type	Four stork, in-line water cooled
No. of cylinder	4
Bore*stroke	105*125mm
Aspiration method	Trubocharged
Governor	Mechanical
Starting method	Electric starting
Cooling method	Forced water cooled
Lubrication method	Pressure & splash lubricating
Fuel consumption	258g/kw.h
ALTERNATOR
Alternator brand & model	Stamford/Leroy Somer/China reputed one
Type	Brushless & self-excited
No. of phase	3
Volatage	230/400v
Frequency	50HZ
Power Factor	0.8
Insulation Grade	H
Protection Grade	IP22/23
Altitude	≤1000m
