Rotary Silk Screen Printing Machine With UV Dryer

HFT-UV rotary silk screen printing machine,UV digital silk screen printing machine, cheap silk screen printing machine;cheap screen printing machine; digital silk screen printing machine; silk screen printer

1.Fuction

HFT-1-320 Reel type silk screen printing machine is used for printing on reel material of PVC, OPP, Dacron, Security mark, adhesive tape, etc.

The material transfer of the machine is controlled by servo motor, the main drive part adopted the pneumatic device, and the printing position is followed and controlled by photocell.The machine has the characteristic of high accurate chromatic, steady material-transfer, automatic counter and alarm, convenient adjust and compact structure, etc.

2. Main technical parameters

Printing speed                             10-100t/min

Max.Unwinding diameter              450mm

Max.Width of paper                      320mm

Max.Printing width                        300mm

Max.Printing length                      320mm

Main motor power                        1200w

Oven power                                 4100w

Atmospheric pressure                  4.5-6kg/cm2

3.3-D view of main part

4.What is the main advantage of this machine?

Controlled by PLC. It's EASY to operate.

5. Why choose Hongfat?

The best choice for turn on key offer.

5.1Hongfat can really help you to set up the machine from zero, no matter machine

production, installing, training for operator, maintenance, raw material supplier identify

and business convoy.

5.2 He can lend you English-speaking operator.

5.3 Some machine is 3 years’ guarantee.

5.4 English-speaking engineers have the experiences of serving more than 20 countries.

They are many company which is much bigger than Hongfat, they are

many company who can make good machine as Hongfat. Especially, when

we talk about machine, we like to say German machine is good. While after

they get your money, few of them can really be patience to set up your

business from Zero. Especially when your request seems out of their duty,

Especially the job is beyond the duty of machine seller.

If you have good experience already and just want good machines. Hongfat is one of

your choice. If you want to set up the coating factory from Zero, Hongfat is your only choice.

6.Machine guarantee?

2 years

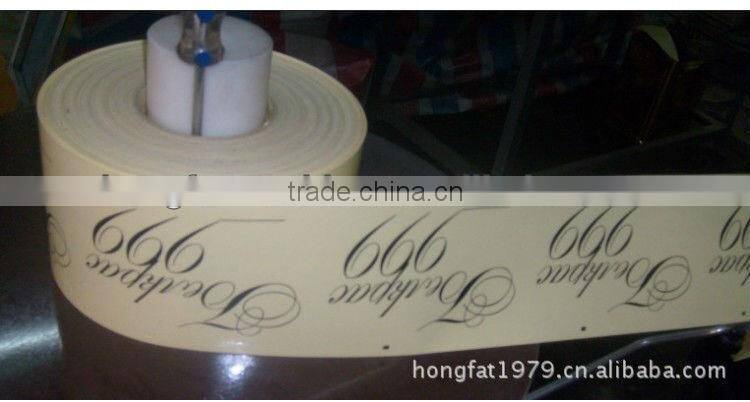

7.Sample produced by silk screen printing machine

8..Factory view and export loading

9.Fair in overseas
