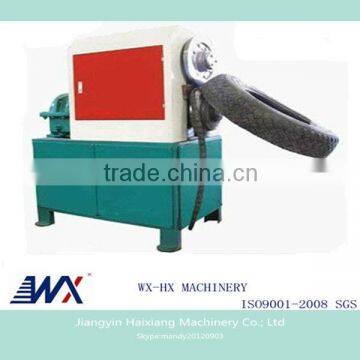

2013 Energy Saving Manual Operation Tire Cutting Machine/Tire Stripe Machine

Condition	New		Type	Other, Tire Machine, waste tire recycling micro machine
Tire Machine Type	Tire Recycling Machine		Place of Origin	Jiangsu, China
Brand Name	WX		Model Number	Q-1200
Voltage	380v		Power(W)	3kw
Dimension(L*W*H)	1.2*1.4*1.3m		Weight	600kg
Certification	ISO9001-2008,SGS		Warranty	lifetime
After-sales Service Provided	Engineers available to service machinery overseas

Specifications

1.11Years'experience
2Brand pulverizer,shredder,sifter,separator
3Lifetime warranty
4.Lowest price
5.ISO9001SGSCertification

2013 Hot Sale  Energy Saving Used Tire Cutting Machine



      We produce rough crusher, shredder,automatic tire cutter,bead-wire drawing machine,tire splitting machine,separator,screener,conveyer and all kinds of waste tire recycling machines,and with the strong technology we can accept custom made!



Tel: +86-510-66200163

cell phone: +86-151-6165-5901

Contact:Mandy Van

Skype:mandy20120903







Advantage:

1.11Years'experiences manufacturer



2.China expert on waste rubber pulverization



3.Brand pulverizer,shredder,crusher,screener,separator,grinder



4.Lifetime warranty,lowest price



5.ISO9001,SGS certification





  Construction & Principle:





 The basic principles for the selection of tire inner ring for the support system in the inner support frame. The support frame of the regulatory agencies will hold tight to the tire firmly supporting frames; get through the low speed gear transmission mechanism; cutting tool installed on the machine table panel, can be arbitrarily retreat knife. At low speed while moving the tire tool, cut into the tire, the tire can be smoothly cut. For a more smooth cutting and tool cooling, cooling water pumps will be supporting direct cutting point.



Usage:

  To cut the whole tire crown,tire sidewall,tire bead Construction and Principle:The aircraft from the rack, turn the body, supporting frames, tool bodies and other components. .



Technical Data:







Model	power(kw)	Revolving Speed(r/min)	Fitted Size	Handling capacity(tires/h)	Overall Size(m)	Weight(kg)
Q-1200	3	15	650-1200	30-60	1.2*1.4*1.3	600



Model		power(kw)	Rotate Speed(r/min)		Capacity(pcs/h)	Size of Output(mm)	The Greatest Thickness of cutting
40		4	16		15~25	25*25	50



Model		power(kw)	Rotate Speed of Main Axis(r/min)		Capacity(pcs/h)	Size of Input(mm)	Size of Output(mm)
80		4	240		0.5~0.8	25*25	25*25*35









Delivery time: 25-35 days after receiving 30% deposit.



Service: Provide Installation, maintenance and technical guidance for life.



Guarantee: free for One year



P.S: The quality guarantee is 12 months after finishing the trial run of machines which has been shipped to the buyer side. If any part (excluding easily damaging parts) is found defective in quality within warranty period, we would like to replace it for free. After warranty, spare parts can be replaced based on favorable price.
