20B/30B/40B/60B/80B pepper pulverizer

FOB Price

US$ 2,500 - 9,500 / Set

1 Set(Min. Order)

Port Shanghai
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Pulverizer
Product Type	Cosmetic	Place of Origin	Jiangsu, China
Brand Name	WX	Model Number	B
Voltage	380V	Power(W)	2.2KW,4kw,5.5kw,7.5kw,15kw,22kw,30kw
Dimension(LWH)	550400850,5506001250,6007001450,8009001550,9009001880,	Weight	85kg,180kg,250kg,360kg,550kg,850kg,1200kg
Certification	ISO9001	Warranty	1 year
After-sales Service Provided	Overseas service center available

Product Description

Specifications

1.Universal pepper pulverizer
2.Model:B
3.Size of input:6-12
4.size of output:4-120

skype:lisacheng50

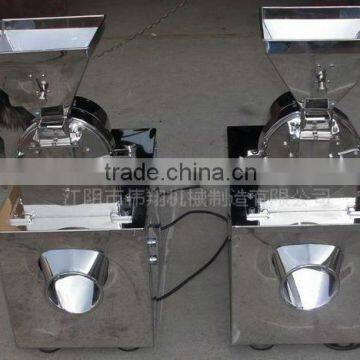

Model B Universal pepper pulverizer

Main Application:

Model B Universal Crushing Set is used in the industries of pharmaceutics,chemical,food and etc.

Operating Principle:

By means of relative motion between movable and fixed discs,material is crushed through impact and friction of the teeth and impact among the material.The machine is designed according to GMP standard and made of stainless steel.The advantage of it are simple structure,high production capacity and convenient cleaning.Currently it is the pretty ideal one among coarse crushing machines.

Nowadays, Jiangyin Haixiang Machinery Co.,ltd have customers both in China and abroad.Foreign customers such as Russian,East Europe,Middle East,South America,North America,East Asia,Southeast Asia, Africa,etc.

Model	Production Capacity(kg/h)	Spindle speed(r/min)	Feeding size(mm)	Crushing fineness(mesh)	Motor Power(KW)	Overall dimension(mm)	Weight
15B	10-50	6000	6	60-120	2.2	550×400×850	85
20B	60-150	4500	6	40-120	4	550×600×1250	180
30B	100-300	3800	6	40-120	5.5	600×700×1450	250
40B	160-800	3400	10	40-120	7.5	800×900×1550	360
60B	300-1000	2800	12	40-120	15	900×900×1880	550
80B	400-2000	2000	12	40-120	22	1100×950×1960	850
100B	500-3000	1500	12	40-120	30	1350×1000×2100	1200
