Nylon Expansion Joint Rubber

FOB Price

US$ 3.56 - 345.6 / Piece

5 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Henan, China		Brand Name	HUA YUAN
Model Number	JGD

Nylon Expansion Joint Rubber:

Product Description

Main install datas of Expansion Joint Rubber:

Nominal diameter (DN)		length	Flange thickness (mm)	Quatity of bolt n	Bolt hole diameter (mm)	Diameter of the central ring of the bolt (mm)	Axial displacement (mm)		Horizontal displacement (mm)	Deflexion angle (a1+a2)°
mm	inch	length	Flange thickness (mm)	Quatity of bolt n	Bolt hole diameter (mm)	Diameter of the central ring of the bolt (mm)	extension	compension	Horizontal displacement (mm)	Deflexion angle (a1+a2)°
150	6	180	16	8	23	240	12	20	14	15°
200	8	210	16	8	23	295	16	25	22	15°
250	10	230	17	12	23	350	16	25	22	15°
300	12	245	18	12	23	400	16	25	22	15°
350	14	255	18	16	23	460	16	25	22	15°
400	16	255	20	16	25	515	16	25	22	15°
450	18	255	20	20	25	565	16	25	22	15°
500	20	255	21	20	25	620	16	25	22	15°
600	24	260	24	20	30	725	16	25	22	15°
700	28	320	24	24	25	840	16	25	22	15°
800	32	340	25	24	30	950	16	25	22	15°
900	36	370	28	24	30	1050	16	25	22	15°
1000	40	400	29	28	30	1160	18	26	24	15°
1200	48	420	32	32	34	1380	18	26	24	15°
1400	56	450	30	36	34	1560	20	28	26	15°
1500	60	500	30	36	34	1660	20	28	26	15°
1600	64	500	30	40	34	1760	25	35	30	10°
1800	72	500	36	44	41	1970	25	35	30	10°
2000	80	550	36	48	48	2180	25	35	30	10°
2200	88	400	40	52	48	2390	25	35	30	10°
2400	96	610	41	56	48	2600	25	35	30	10°
2600	104	650	42	60	54	2810	25	35	30	10°
2800	112	680	45	64	54	3020	25	35	30	10°

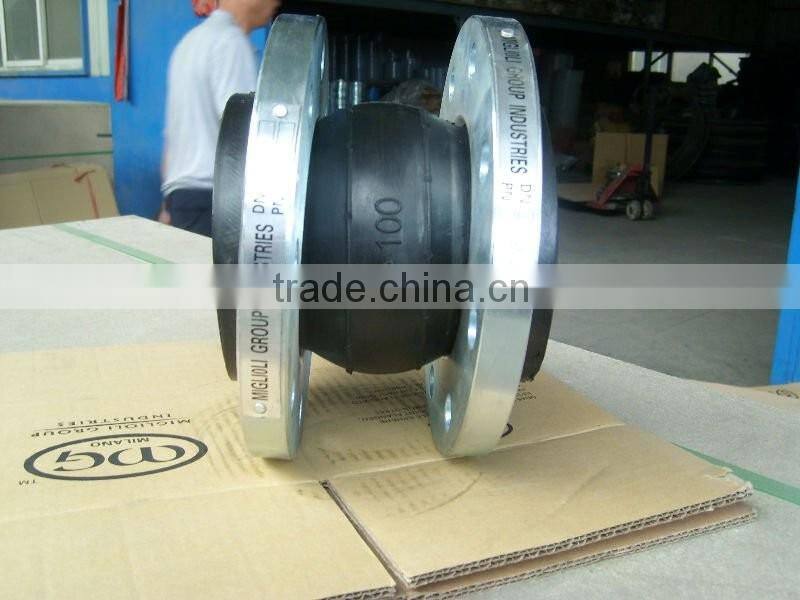

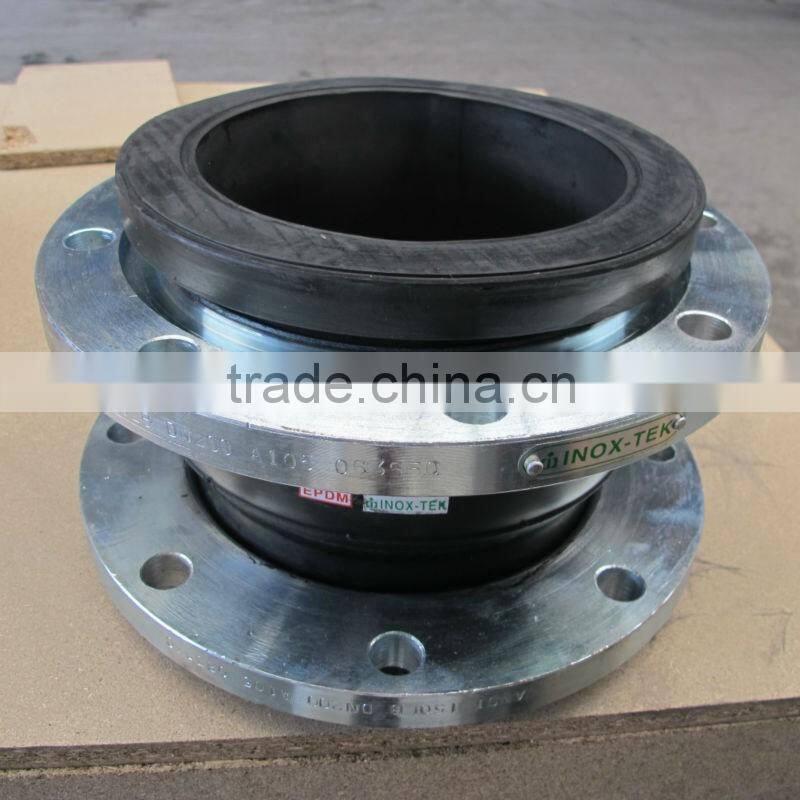

The details of Expansion Joint Rubber:

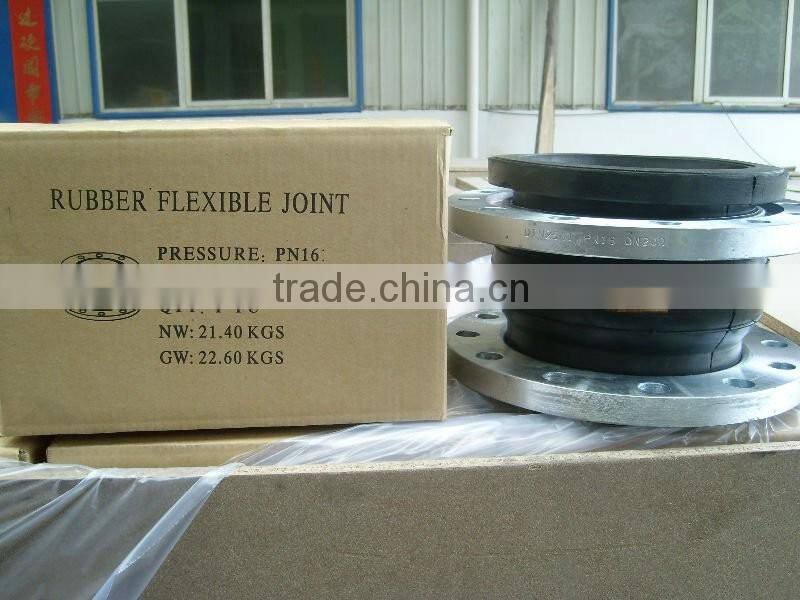

The process of packaging Expansion Joint Rubber:

Why choose us:

1.20 years experience in designing and manufacturing union expansion joint;

2. Our own patents and innovations

3. We can produce the cargos according to customers' drawings

4. ISO9000 verified

5. Better quality and competitive price

6. Min. order :1 piece for your testing

7. Reply your email within 24hours

We provide better service and products. we are expecting to cooperate with you and would develop with you hand in hand.

More information of Expansion Joint Rubber pls keep in touch with me:
