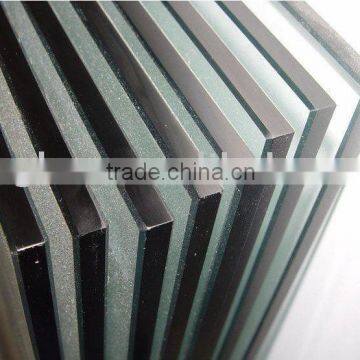

TG-01 Tempered glass for building

Specifications

Tempered Glass Feature:

1) Tempered glass is strong, has enhanced thermal resistance, and breaks into small cuboids fragments rather than irregular shards of glass and therefore is less likely to cause injury..

 2) Application: Tempered glass is used where strength, thermal resistance and safety are important considerations. Tempered glass is also used in buildings for unframed assemblies (such as frameless doors), structurally-loaded applications, household applications, like furniture glass, and any other application that would become dangerous in the event of a human impact. Some forms of tempered glass are used for cooking and baking.

 3) There are two different production lines of curved tempered glass in our company. We can accept order as your request. Just please do not hesitate to contact us.

4) Specification: a. Radius: min.1000mm; Arc of length: max 2400mm Height: max. 3660mm b. Radius: max. 450mm; Arc of length: max. 1000mm, min. 300mm Height: max. 2000mm, min. 300mm

You will see the processing quality..

Our Machinery :

1. Numerical Control Cutting Machine:

Max:8000mmX3000mm

Min:30mmX30mm

Thickness: 3-25mm

2. Three Tempered glass Machinery , two for flat tempered, one for curved tempered.

Flat tempered:

Max:8000mm X 2440mm

Min:300mmX300mm

Thickness:3-25mm

Curved Tempered:

Min curved radius:450mm

Max arc of length:2400mm

Min are of length:300mm

Max height:3660mm

Min height:300mm

3.Italian Bottero Processing Division:

Max:3210mmx1560mm

Min:Circle with diameter 50mm

4. Bevel Edge Machine:

Max:2500X5000mm

Min:80mmX80mm

5.Irregular Edge Machine:

Max: A circle which diameter is 2440mm

Min:80mmx80mm

6. Autoclave for Laminated Glass

Max:2400mmX6000mm

Min:300mmX300mm

Thickness of the glass:3-15mm

Thickness of the PVB:0.38mm/Multiple of 0.38mm

7. Tempered Glass Homogenizing Furnace:

Inside size:5460x1960x3000mm

Max size of glass:2500x5100mm

Thickness of glass:3-19mm

8. Insulated glass processing line (2 lines)

Max:2500mmX3500mm

Min:350mmX350mm

Thickness:3-15mm

Aluminum Spacer:6A 9A 12A

 Our sample project -- 2010 Guangzhou Asian Games Project:

Guangzhou Tower (Model) Plaza

Others:

Nissan 4S Shop Zhu Hai,Guangdong,
