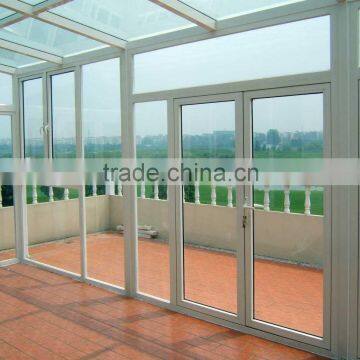

tempered glass used in windows and doors

Specifications

Specifications

Ice-cracked Glass

tempered glass is a type of glass that has increased strength on the surface by the physical or chemical treatment on the ordinary glass and increased the tensile stress inside the glass so that this kind of glass has increased the mechanical strength and the heat-resistant impact strength, so collectively called tempered glass which can also be classified into full tempered glass and half full tempered glass (also called HOT-REINFORCED GLASS) in terms of the different treatment degrees.

sky tiger glass co.Ltd. is a famous sole foreign investment enterprise, providing service for glass processing and engineering project which have good reputation in China.

Adopting traditional European glass techniques, gathering experts in glazing line and geting professional ideas from foreign consultants,

sky tiger is capable of providing all-around service of glass processing and glazing engineering.

sky tiger introduces in advanced managing mode which advocates enterprise culture of people-centered, constructing

company area network, implementing computerized management.

sky tiger brought in effective system of management from European glass industry, concentrating capable persons in the glass line and bringing in domestic and international advance technology.

sky tiger coated glass production line is imported from Germany LEYBOLD, tempered glass production line from Finland TAMGLASS, automatic cutting machine and automatic double edge grinding machine from Italy BOTTERO.

The company has qualified not only CCC safety certification of China and the ISO9001 quality system certification, but also BS6206 Tempered glass check standard of England and the AS/NZS2208 laminated, tempered, and insulated glass check standard of Australia. The various properties of products can suit to various requirements from national standard of Japan, America and Europe.

sky tiger is well in supplying all kinds of processed glass such as Soft coated reflective glass, plat & curved tempered glass, Low-emissive glass, house-ware glass, insulated glass, laminated glass, silk screen printed glass and other multiple processed glass.

We insist on thought of high technology & quality to operate and keep improving ourselves. We brought the most advanced international glass processing devices in and integrate all kinds of resources including technology, production, and management. We actively explore and adopt new tech, new art statement, new devices, and new material and qualified the ISO9001 quality management system certificate. Our goal is to develop a modern industry with high tech and productivity.

tempered glass is a type of glass that has increased strength on the surface by the physical or chemical treatment on the ordinary glass and increased the tensile stress inside the glass so that this kind of glass has increased the mechanical strength and the heat-resistant impact strength, so collectively called tempered glass which can also be classified into full tempered glass and half full tempered glass (also called HOT-REINFORCED GLASS) in terms of the different treatment degrees.

Full Tempered Glass Property

The intensity of tempered glass is 3-4 times of ordinary glass and the surface stress is more than 90MPa; when it is destroyed by external force the stress is instantly released subject to the reaction of the internal tensile stress, so the whole piece of glass completely becomes pellets with no sharp angles, which will greatly reduce the possibility of the body injury; and the Full Tempered Glass can resist the acute change of extreme cold and hot temperature.(The 5mm tempered glass approximately may bear 200 degrees temperature changes.)

Half Tempered Glass Property

The intensity of half tempered glass is 2-3 times of ordinary glass with the surface stress between 24 and 69MPa; when it was destroyed by external force, the crack starts to extend to side from where it is destroyed but most of parts of glass still keep in frame that avoids or reduces body injury; Half Tempered Glass is also characterized by advantages of the ordinary plate glass and the Tempered Glass, but with higher intensity than the ordinary plate glass and keeping the flatness between both of them without spontaneous explosion.

Application of tempered glass

Buildings need safety glass; windows and other parts of façade; glass bar and elevator; windows for vehicles and ships, Desks and displaying frame, inside decoration and furniture that easily breaks.

Features:

High flat: The greatest feature of Tamglass is the high degrees of flat. The tamglass production line brought from Finland can satisfy demands of coated glass, laminated glass, mould, furniture, electronic product, and skyline etc.Especially plat degree of semi tempered glass is very close to raw glass which can achieve plane effect.

Curved tempered glass:

Heated to levels just slightly below the softening temperature according to certain curved diameter , then immediately exposed to quick cold air that brings it back to low temperature

Product application:

The products are widely used in the exterior decoration projects of high-end buildings, such as, sunshade lighting roof, Sightseeing elevators and revolving restaurants, etc.
