Home > Products > New Products > QZ type 5-20t grab bridge crane

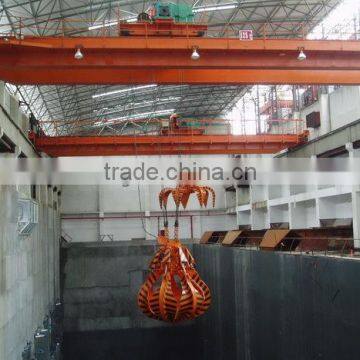

QZ type 5-20t grab bridge crane
US$ 5,000 - 20,000
/ Set
1 Set(Min. Order)
- Tianjin
- T/T
You May Like
Product Details
| Condition | New | Application | warehouse ,factory ,logistic | |
| Rated Loading Capacity | 5-20t | Max. Lifting Load | 20t | |
| Max. Lifting Height | 18m | Span | 10.5-31.5m | |
| Place of Origin | Henan, China | Brand Name | Kuangyuan | |
| Model Number | QZ | Certification | CE,GOST,SGS | |
| Warranty | 1year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
Grab bridge crane1. Lifting weight:5-20t
2. Top 3 in China crane industry
3. Complete after-sale service
QZ type 5-20t grab bridge crane
grab bridge crane brief Introduction:
QZ type grab bridge crane is the new generation product, the lifting capacity from 5 to 20t, and span from 10.5m to 31.5m.. This model applies the patent technology, it is widely used in factory, warehouse, logistics center, etc.
Advantages of grab bridge crane:
1) Reasonable structure
2) Favorable performance
3) Smooth starting and stopping
4) Safe and reliable traveling
5) Low noise, commodious cabin and good view
6) Convenient maintenance, excellent exchangeability for parts and components
7) Saves electricity
2) Favorable performance
3) Smooth starting and stopping
4) Safe and reliable traveling
5) Low noise, commodious cabin and good view
6) Convenient maintenance, excellent exchangeability for parts and components
7) Saves electricity
Safety feature:
1. Limit switch.
2. Overload stop device for hoisting.
3. Long bearing buffer for crane traveling.
4. Power faliure backup.
Technical parameters of grab bridge crane:
| Lifting and Travelling Mechanism | ||||||||||||
| Capacity/ Lifting Weight | T | 5 | 10 | 16 | 20 | |||||||
| Span | m | 10.5,13.5,16.5,19.5,22.5,25.5,28.5,31.5 | ||||||||||
| Lifting Height | m | 20 | 18 | 22 | 26 | |||||||
| Operation method | Cabin control,remote control | |||||||||||
| Speed | Lifting | m/min | 40.1 | 40.7 | 41.8 | 48.6 | ||||||
| Cross travel | 44.6 | 45.6 | 43.2 | |||||||||
| Long travel | 93.7 | 86.4 | 76 | 89 | 89 | 87.3 | 87.3 | |||||
| Lifting mechanism | type | Electric winch trolley | ||||||||||
| Working duty | A6 | |||||||||||
| Steel track recommended | 43kg/m | QU70 | ||||||||||
| Power supply | 3-phase,AC,380V,50HZ | |||||||||||
| Electric Parts | ||||||||||||
| Overload limiter | Included | |||||||||||
| Weight overload protection device | Included | |||||||||||
| Crane traveling limited switch | Included | |||||||||||
| Voltage lower protection function | Included | |||||||||||
| Motor | Heavy duty slide ring type, top quality in China | |||||||||||
| Gear and wheel | Manufacture by our own group, so the high quality could be controlled. | |||||||||||
| Anti-collision system | Included | |||||||||||
| Short-circuit device | Included | |||||||||||
| Under-voltage protection | Included | |||||||||||
| Motor overload protection | Included | |||||||||||
| Emergency stop system | Included | |||||||||||
| Ground protection | Included | |||||||||||
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe | |||||||||||
| Place of Origin: | Henan in China | |||||||||||
| Serial / Model No.: | QZ Model | |||||||||||
| Trademark / Brand: | KY | |||||||||||
| Packing: | Packing by woven plastic cloth, electrical parts and other parts packaged in high quality plywood crate | |||||||||||
| Minimum Order: | 1 Set/Sets | |||||||||||
