High Quality 3tons per Hour Waste Tyre Shredder / Tyre Recycling Plant
- qingdao
- T/T
You May Like
Product Details
| Condition | New | Type | Tire Machine | |
| Tire Machine Type | Tire Recycling Machine | Place of Origin | Shandong, China | |
| Brand Name | eenor | Model Number | all various | |
| Certification | BV |
Product Description
Waste Tyre Shredder / Tyre Recycling Plant:

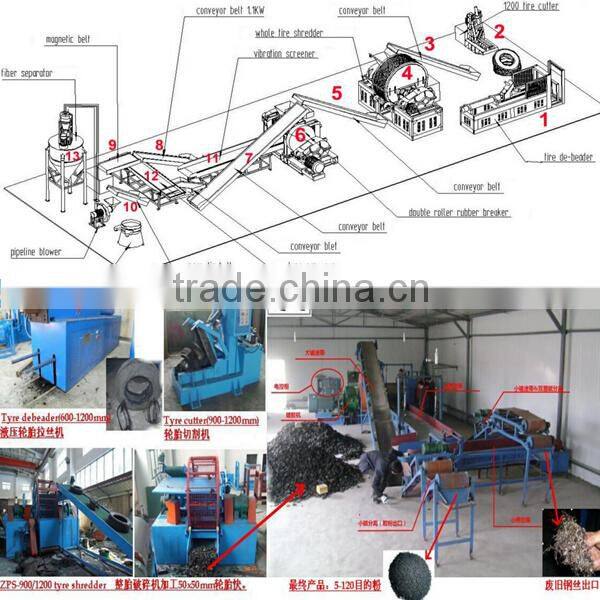

The working process:

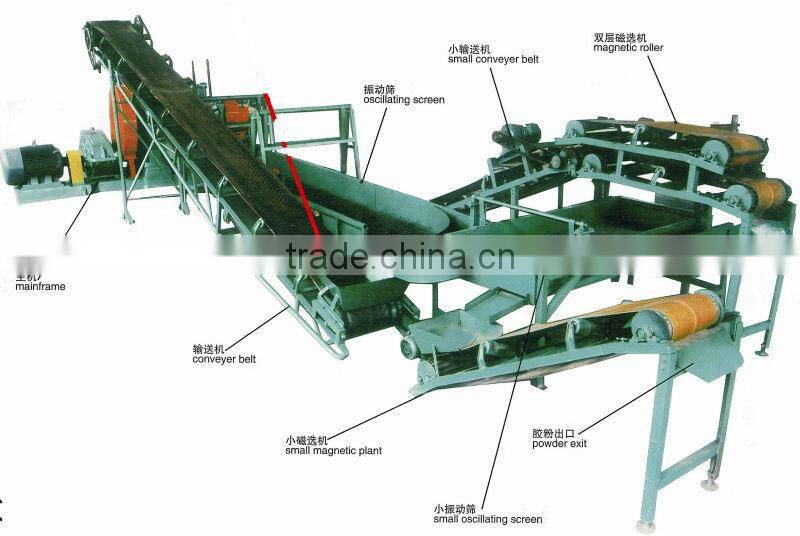

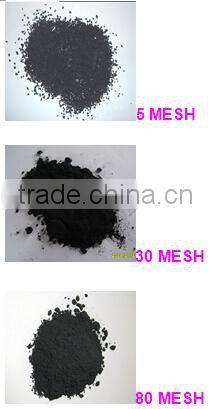

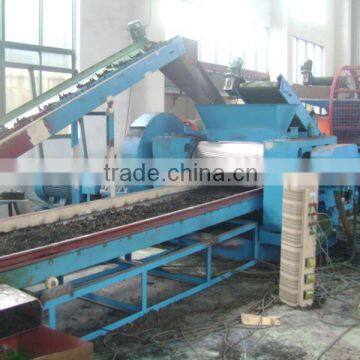

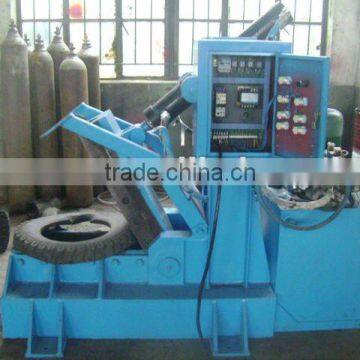

waste tyre -- tyre debeader -- tyre cutting machine -- whole tyre shredder -- big conveyor equipment -- rubber crusher -- big shaking screen -- small conveyor equipment -- magnetic separator -- small shaking screen -- fiber separator -- 5-30 mesh powder -- rubber fine grinder -- 40-120 mesh powder.

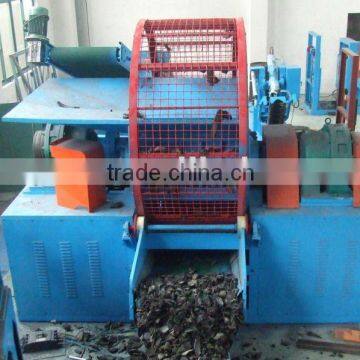

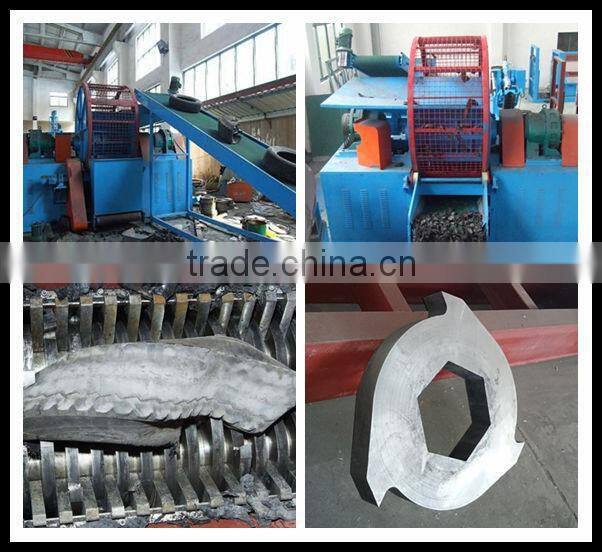

Technical details of tyre shredder:
Model | ZPS- 900 | ZPS-1200 |
Size of feeding | ≤900 mm whole tire | ≤1200 mm whole tire |
Discharging particles | ≤50*50 mm | ≤50*50 mm |
Motor powder | 37 kw x2sets | 45 kw x 2 sets |
Discharging motor | 2.2 kw | 3 kw |
Screen rotating motor | ||
Feed Conveyor | 1.5 kw | 2.2 kw |
Production capacity | 1000-1500 kg/hour | 1500-2000 kg/hour |
Cutter rotate speed | 16 r/min | 31 r/min |
Screener rotate speed | 6 r/min | 8 r/min |
Knife quantity | 18 pieces | 20 pieces |
Knife material | Alloyed steel | Alloyed steel |
Spindle diameter | 138 mm | 208 mm |
Shaft mode | double driver | Double driver |

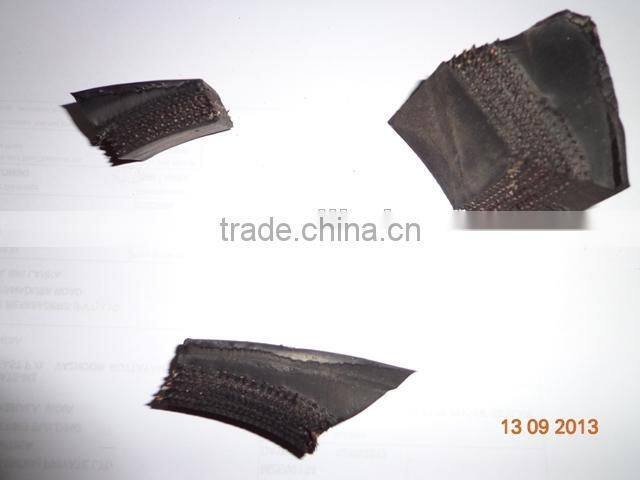

50x50mm blocks

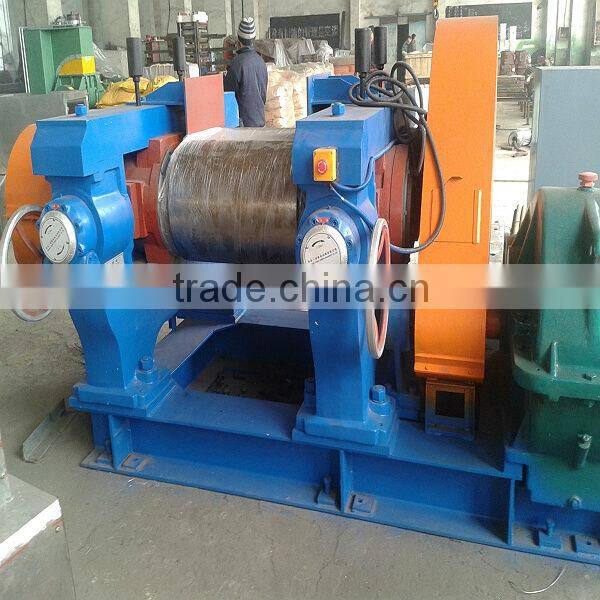

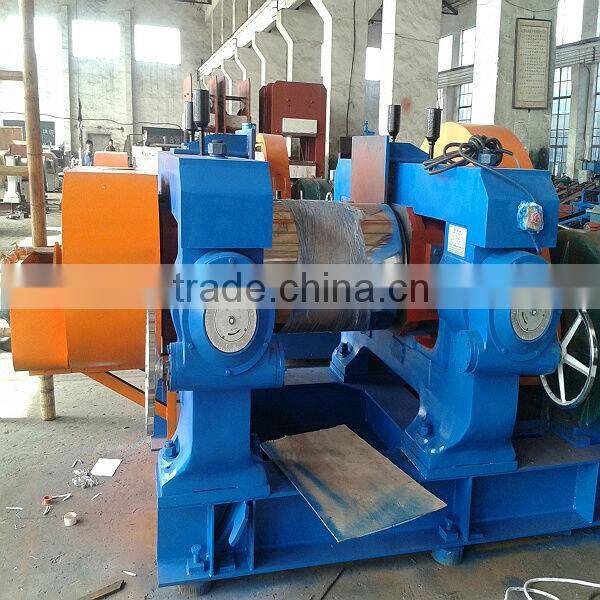

Technical details of tyre crusher:
Parameters/version | XKP-400 | XKP-450 | XKP-560 |
Front roll diameter | 400 | 450 | 560 |
Back roll diameter | 400 | 450 | 510 |
Roll length | 600 | 650 | 800 |
Front roll surface speed (m/min) | 17.32 | 23.2 | 25.56 |
Friction ratio | 1:1.38 | 1:1.38 | 1:1.30 |
Max. nip | 8 | 8 | 8 |
Feeding capacity per (kg) |
200-300 |
600-800 |
1500 |
Power(kw) | 45 | 60 | 75 |
Size(l*w*h) | 3950*1800*1780 | 4770*1846*1835 | 5064*2284*1978 |
Weight(kg) | 7000 | 12000 | 19000 |
Chracteristics:
1.Transmission with quality.
2.The rolls are made of chilled cast iron with wear-resistance hard surface.
3.The rollers are grooved.
4.The bored rolls can be cooled through inputting the steam and colling water.
5.The two rollers rotate with different speed ,so that rubber material can be processed
6.The Excellent crushing structure is open gear transmissions
7.The product has ISO9001 CE standard and SGS certification .

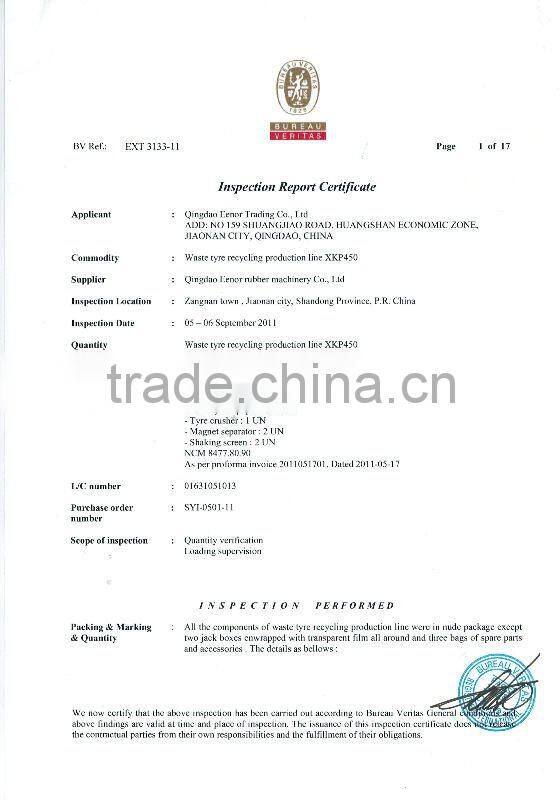

THE PRODUCTION LINE WAS PASS"BV" AUTHENTICATION:
