Product Details
| Place of Origin | Shandong, China | Brand Name | Jinchuan | |
| Model Number | SJY0.2-4 | Lift Mechanism | Telescoping Lift | |
| Lift Drive / Actuation | Hydraulic | Power | 45kw | |
| Rated Loading Capacity | 200kg | Min. Lifting Height | 4m | |
| Max. Lifting Height | 5.7m | Table Size | for one to two person | |
| Overall Dimensions | 1050*800*1430mm | Weight | 420kg | |
| Certification | CE ISO | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
goods lift/telescopic cylinder lift platform used in supermarket
To be one professional saler, I must give you some tips as follows:
1. if you like the lift platform, pls tell me the lifting height/weight and other information for the lift platform you want by trademanage/Skype/Email.
2. As we sign the contract, you need to tell me the nearest port to deliver the machine.
Skype:jinchuanlift
Email:jinchuanlift02/at/
duct description
Set cylinder lift lifting device is made of high strength cold drawn pipe hydraulic multistage nested structure, the new design, the single ladder anti-rotation, double ladder anti-rotation, vehicle type, tilting, a double speed drop system, the maximum elevation of 30 meters, stable lifting, safe and realiable, mobile and flexible, durable, suitable for hotels, hotel, bank hall, hall, shopping malls, high-altitude operation repair station sites and other small.
2.Parameter
| model | lifting weight(kg) | lifting height(m) | working height(m) | over dimention(mm) | supplier | total weight(kg) |
| SJT0.2-4 | 200kg | 4 | 5.7 | 1050*800*1430 | 220v | 420 |
| SJT0.2-6 | 200kg | 6 | 7.7 | 1050*800*1680 | 220v | 480 |
| SJT0.2-8 | 200kg | 8 | 9.7 | 1250*940*2080 | 220v | 580 |
| SJT0.2-10 | 200kg | 10 | 11.7 | 1250*940*2170 | 220v | 650 |
| SJT0.2-12 | 200kg | 12 | 13.7 | 1610*1120*2220 | 220v | 900 |
| SJT0.2-14 | 200kg | 14 | 15.7 | 1780*1470*2240 | 220v | 1075 |
| SJT0.2-16 | 200kg | 16 | 17.7 | 1780*1470*2420 | 220v | 1350 |
| SJT0.2-18 | 200kg | 18 | 19.7 | 1780*1470*2500 | 220v | 1430 |
| SJT0.2-20 | 200kg | 20 | 21.7 | 1780*1560*2650 | 220v | 1650 |
| SJT-0.15-22 | 150kg | 22 | 23.7 | 2900*1450*2250 | 220v | 2500 |
| SJT-0.15-24 | 150kg | 24 | 25.7 | 3000*1500*2250 | 220v | 2650 |
| SJT-0.15-26 | 150kg | 26 | 27.7 | 3100*1500*2300 | 220v | 2800 |
| SJT-0.15-28 | 150kg | 28 | 29.7 | 3200*1550*2300 | 220v | 3000 |
Jinan jinchuan hydraulic machinery co., LTD is a company specializing in the production of elevator and elevator, cllimbing trolley, three-dimensional garage and other professional manufacturers, is engaged in the production of more than 10 years, the use of alibaba platform for 4 years. We have our own r&d team and production team, sales team and after-sales service team, to the "integrity-based, scientific and technological innovation" for the purpose of "quality first, customer first" for the idea, career to struggle, to grow. Jinan jinchuan welcome you the presence! Can visit the factory, they need of choose and buy products into the factory, rest assured!

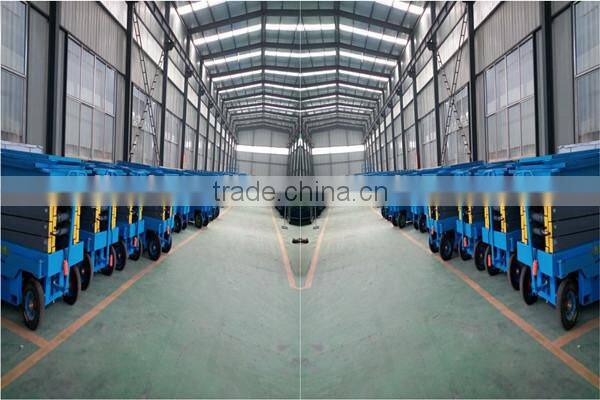

4.factory
5.certificate
6.customers
7.Payment
# 30% paid as deposit by T/T before production, the balance paid before shipment.
8.Warranty
# We provide 12 months for technology support, and we can provide 18 hours online service.
9.Contact us
# If you have any questions, pls feel free to ask me, you can contact me like this:
Skype:jinchuanlift
Email:jinchuanlift02/at/
