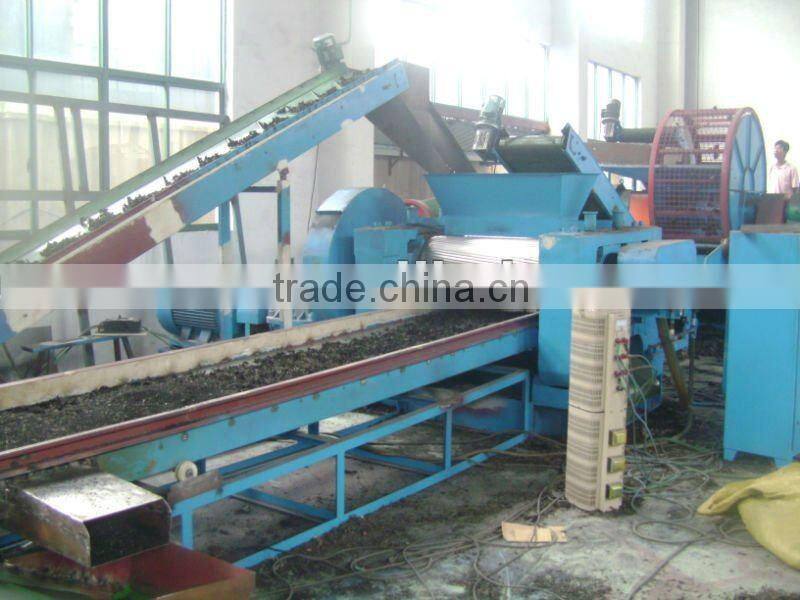

High Quality Tire Wire Extractor Equipment Machine Plant

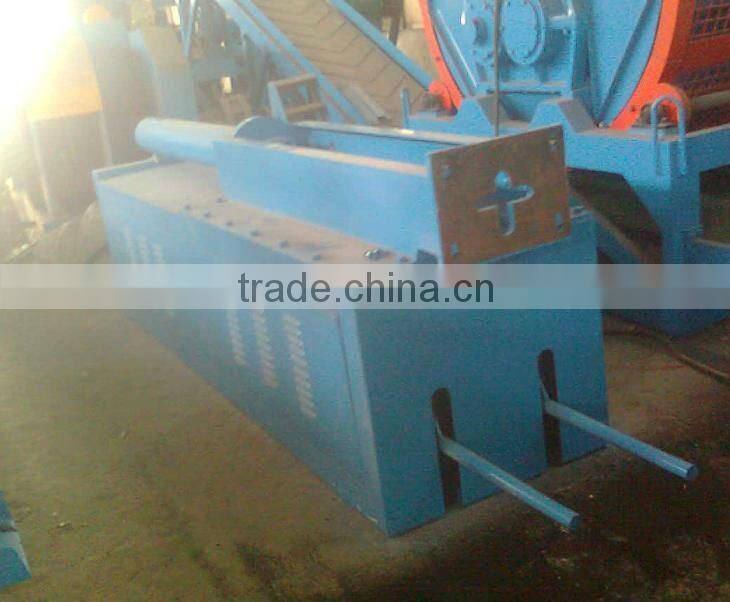

Tire/tyre debeader

The first step in tire recycling procession

Heavy duty body

Hooks and cross pulling die made of 45# steel, tempered and quenched

Equipped with protection device avoiding the dangers during working

Two series: hydraulic one and mechanic one

Easy to operate and change spare parts (hooks and cross pulling die)

Tire/tyre cutter

Cutting tires into pieces before shredding

Small tire pieces for easier processed in shredder

Knives made of YG-20 steel, long using time

Hydraulic control

One clamping cylinder and one cutting cylinder

Equipped with a roller platform to process big tires

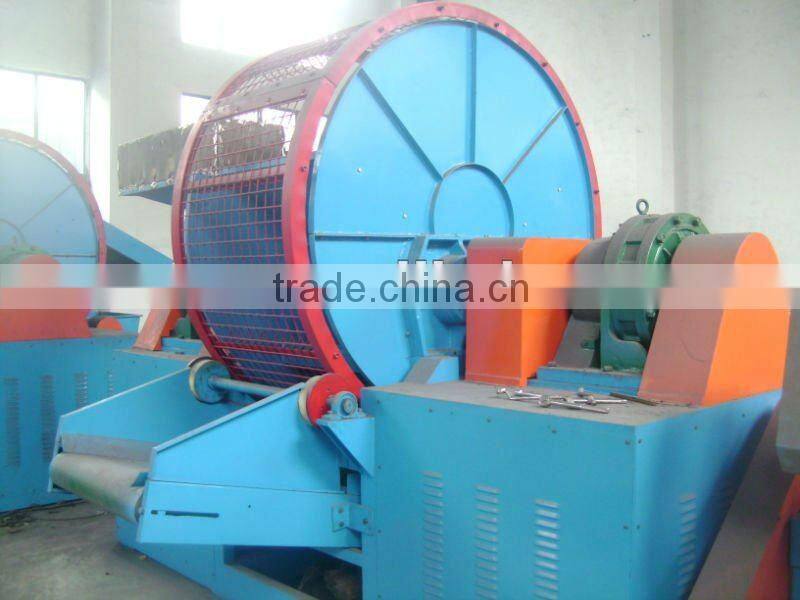

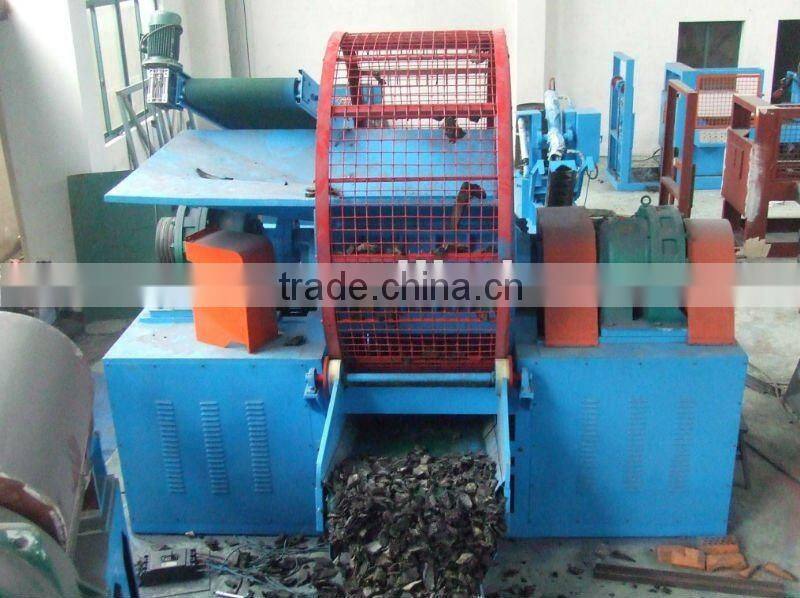

Tire/tyre shredder machine

Extremely precise tolerances between the cutting knives produce cleanly cut tire chips at low energy consumption.

The cutting knives made of high quality alloy steel can be re-sharpened and reused which increases the service life and reduces the operating cost.

The complete cutting chamber is lined with hard wear plates.

Large doors equipped for easy access into the cutting chamber.

Tire cracker mill/Rubber crusher

The shear and grinding between the two rollers will make waste tire chips into powder, steels and textiles

Roller body made of cast steel

Surface of roller made of alloy steel, can be welded when worn out

One flat surface roller and one teethed roller

Bottom made of cast iron

Emergency stop when overload

Distance between the two rollers can be adjusted.

Hard gear gearbox

Equipped with screening machine, magnetic separator and fiber separator, can get 99% purified rubber powder which separated from steel wire and fiber

Magnetic separator

Be used to separate steel wire from rubber powder.

Separated steel wire will be transferred to one place, easy to collect

Permanent magnet, no more power consumption

Fiber separator

After the rubber grinder, the nylon fiber will be grinded into fluff, with the centrifugal force, density difference, the fluff will be separated by the fiber separator. The spin fans inside the cyclone barrel driven by the motor throw the compounds to the wall, at this time, light fiber fluff will be upwards and fall down into the inside barrel, heavy rubber powder will fall down directly, so textile fiber will be separated.
