Home > Products > tyre curing press > jaw type precured tire tread machinery
jaw type precured tire tread machinery
- 200 Set / Sets per Month
- qingdao china
- T/T
You May Like
Product Details
| Condition | New | Type | Vulcanizer | |
| Place of Origin | Shandong, China | Brand Name | eenor | |
| Model Number | all various | Voltage | 220-500v | |
| Certification | ISO9001:2008 SGS | Warranty | one year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
1.high efficent2.hydraulic rubber press
3.tire retreading equipment
4.hot retreading...
jaw type precured tire tread machinery :
1. C structure
2.frame structure
3. slabside structure
Precured tread rubber hydraulic press is used to produce strip tread for renovation of all kinds of tires. It is suitable for cold renovation procedure of tires. Our company can supply three types of the
machine :C structure, frame structure, H Structure. We can design and manufacture other models according to the customer’s requirements. Please contact us if you are interested our products.
Item | XLB-Q5000*300*3 tyre tread vulcanizing machine |
Total pressure MN | 8.00 (800T) |
Hot plate size MM | 5000*300*60 |
Plate clearance MM | 200 |
Piston stroke MM | 450 |
Workig layer | 3 |
Piston number | 8 |
Piston diameter mm | 285 |

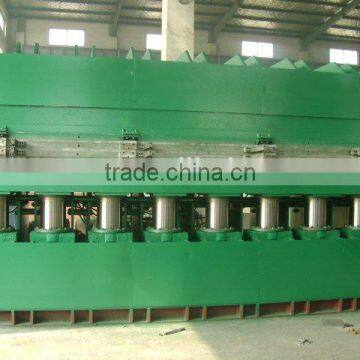

Structure form | Jaw type (As picture) |
Heating mode | Oil or steam heating |
Operation mode | Automatic PLC system. |
Motor power | 17kw + 5.5kw |
Open speed MM/S | 12-15 |
Close speed MM/S | 12-20 |
Worktable pressure MPa | 5.33 (53.3kg/m2) |
structure:Jaw structure |
Pressure:2130 ton |
Plate unit pressure:39kg/cm2 |
Plate size:12000×460×76mm |
Daylight:150mm |
Layer: 5 |
Plunger Diameter:φ330mm |
Piston stroke: 400mm |
Working fluid pressure:16.6Mpa |
Cylinder No.:15 |
Moter power:44kw |
Control System:PLC |
Over dimension:12200×1600×3900mm |
Total weight: 135000kg |
We supply many kinds vulcanizing press, standard and nonstandard. such as Rubber tiles vulcanizing press, Multi-unit vulcanizing press, Photoelectric plate vulcanizing press, Plate Vulcanizing Press(Jaw-type, Column-type, Frame-type) ,Auto Push-Out Mould Press,Conveyer Belt Vulcanizing Press etc.
Contact Us
- Qingdao Eenor Trading Co., Ltd.
- Contact namePANG KIMSUN Chat Now
- Phone0086-532-85176279,13589362337
- AddressNO 159, SHUANGJIAO ROAD, HUANGSHAN ECONOMIC ZONE,JIAONAN,CITY, Qingdao, Shandong
