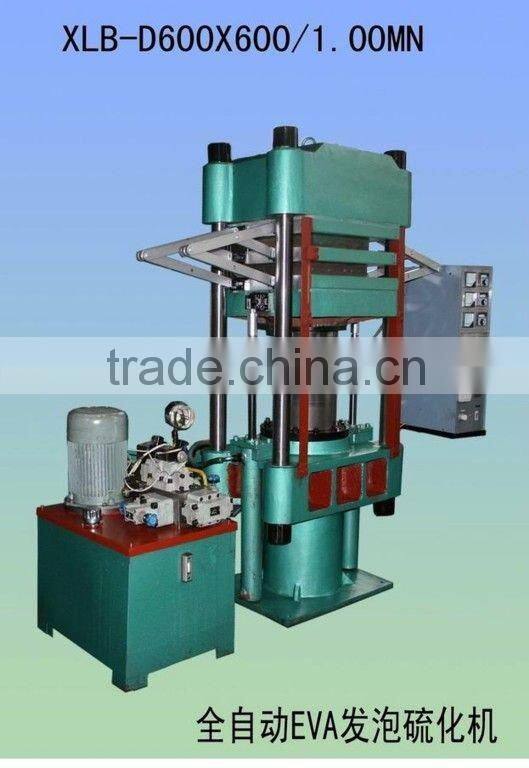

EVA Foaming Machine
- qingdao
- T/T
You May Like
Product Details
| Condition | New | Type | Vulcanizer | |
| Place of Origin | China | Brand Name | eenor | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
1. eva foaming machine passed the ISO9001.2. eva slipper machine are sold worldwide in more than 30 countries and regions.
EVA,/PVC Rubber Sheet Press Machine
Our company is a firm engaged in production enterprise, mechanism of rubber has more than 20 years of history.
Companies depend on the technical power, the strict scientific management expertise, product quality and good service, and won the majority of the customer's trust. many of the product is exported to the united states, canada, australia and india, indonesia and uzbekistan, etc.
Company management certification: ISO 9001:2000, ISO 17799, ISO 9001:2008, ISO 14001:2004, ISO/TS 16949
Our main products are plate vulcanizing press, two-roll mixing mill, rubber extruder, banbury intensive kneader, bale cutter, conveyer belt vulcanizing press, tyre reclaiming machines, rubber refiner, rubber cracker, etc. we especially specialize in the design and manufacture of the nonstandard products .
1Injection System
The measuring mechanism can use potentiometer to check and control the material quantity precisely.
The speedy injector movement is driven by linear-track and worm gear decelerator coordinating with brake motor. The speedy movement is controlled by transducer.
2Mould Clamping System
Equipped with hydraulic cushion equipment, it allows 2mm thickness difference between 2 moulds on one Mould station. It save mould correcting time. Adopt effcient vacuum system and fixed mould stroke 320mm.
3.Parameters:
Tyre | EVA foaming machine | |
Working pressure | MN(Ton) | 4.00 (400 tons) |
Plate size | mm | 1300x1000x60 |
Plate clearance | mm | 150 |
Working layer | 4 layer | |
Piston stroke | mm | 600 |
Plate pressure | Mpa | 3.10 |
Plunger diameter | mm | 600 |
Operation system |
| Automatic control |
Motor power | kw | About 7.5 kw |
Structure type |
| Frame structure |
*Price (FOB QINGDAO) | USD 26160.00 | |
Delivery time | About 30 days | |
rising speed | ≥40mm/s | |
Opening speed | 5 s | |
Heating mode | Steam or oil | |
Packing | Wood packing and exporting standard | |
1. The machine equipped with 2 sets synchronous device. plunger materinl: chilled alloy casting iron. Hardness : HR-70. | ||
| Contact | Mr. Gavin Ding Mobile: 0086 13583283100 |
Factory Name Address& Product | Qingdao Eenor Rubber Machinery Co., Ltd. Binhai Industrial Zone, Jiaonan, Qingdao, China We manufacture and export reclaimed rubber machine, tire recycling rubber powder production line, hydrulic vulcanizing press, rubber extruder, rubber strainer, rubber refiner, rubber tile vulcanizing press, rubber mat machine, conveyor belt production line, conveyor belt jointing press, V belt production line, rotary curing press, rubber kneader, rubber calender, rubber cooling machine, rubber hose production line and other rubber machinery. |
Skype, MSN, G-talk&Email | Skype: dingqinpeng MSN: dingqp <at> G-talk: dingqinpeng <at> Email: sales27 <at> |
