Home > Products > stationary dock ramp > Heavy Duty Stationary Hydraulic Edge Dock Leveler Loading Ramp

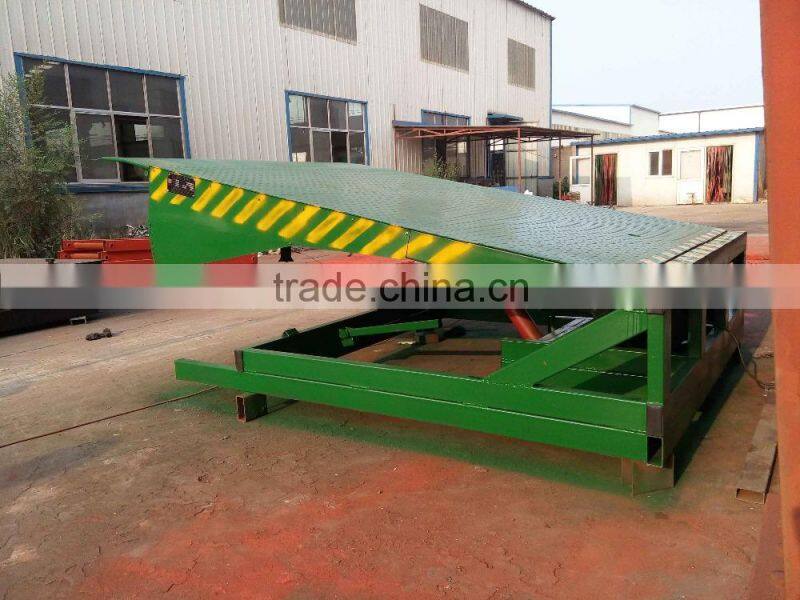

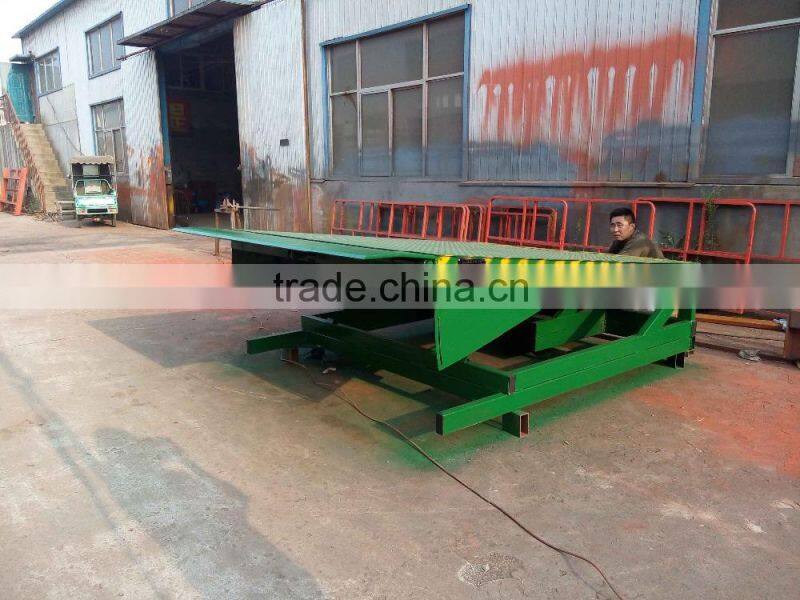

Heavy Duty Stationary Hydraulic Edge Dock Leveler Loading Ramp
- Qingdao
You May Like
-
Stationary Hydraulic Fixed Dock Ramp/container Loading Ramp
-
8T Hydraulic Stationary Dock Ramp for Container Unloading
-
4-12 Tstationary Loading Dock Ramps/ Dock Leveler for Forklift
-
10t Fixed Hydraulic Car Yard Ramps Lift for Truck
-
Hydraulic Electric Dock Leveler, Dock Ramp, Container Dock Leveler
-
Stationary Loading Dock Leveler/hydraulic Dock Ramp for Hot Sale
Product Details
| Place of Origin | Shandong, China | Brand Name | Jinchuan | |
| Model Number | DCQG | Lift Mechanism | Telescoping Lift | |
| Lift Drive / Actuation | Hydraulic | Power | 0.75kw | |
| Rated Loading Capacity | 8t | Min. Lifting Height | 0.5m | |
| Max. Lifting Height | 1.6m | Table Size | 2000*2000mm | |
| Overall Dimensions | 2000*2000*600mm | Weight | 1600kg | |
| Warranty | one year |
Product Description
Heavy Duty Stationary Hydraulic Edge Dock Leveler Loading Ramp Features:
1. The stationary yard ramp is operated easily with electricity and hydraulic power. It is classified to five kinds by carrying-weight capacity, such as 6T, 8T, 10T, 12T, 15T etc.
2. Stationary yard ramp also can according to different models and the loading process of the change in the car, automatically adjust the height.
3. Introduction of foreign advanced technology manufacturing hydraulic system, reliable.
4. This product according to the different needs of the users, in terms of dimensions does special design to withstand loads.
(4)The main technical parameters of hydraulic stationary truck unloading ramp :
Model | Lifting height(m) | Lifting weight(kg) | Platform size(mm) | Overall dimension(mm) | Power supply(kw) |
DCQG-4 | 0.5-1.6 | 4000 | Custom made | Custom made | 0.75 |
DCQG-6 | 0.5-1.6 | 6000 | Custom made | Custom made | 0.75 |
DCQG-8 | 0.5-1.6 | 8000 | Custom made | Custom made | 0.75 |
DCQG-10 | 0.5-1.6 | 10000 | Custom made | Custom made | 0.75 |
DCQG-12 | 0.5-1.6 | 12000 | Custom made | Custom made | 0.7 |
Related Products

Packing:
We always make the lift machine packed inner with wrap film and outer with plywood case. The plywood case is free of steaming kaori, and it is exempted from inspection products, save a lot of trouble in the process of export or import.
Shipping:
We generally quote FOB price.About the shipping ,we promise to deliver goods within 7 days after receive payment.If the quantity of machine is small,we will do LCL and FCL if your order is one container.The shipping price will adjust according to the shipping.
|
Jinan Jinchuan hydraulic machinery co., LTD is a collection research and development, production, sales in the integration of local industry company, for decades of production experience, has its own sales team and after-sales service team. Jinchuan since was established, taking the tenet of "honesty, science and technology innovation" and the concept of "quality first, users first", adhere to go today! Jinchuan will always be with full mental state to meet your arrival! Welcome!
Certificate:

Good service:
1. All the machines will be tested before shipment.
2. The total machine guarantee for 12 months.
3. 24 hours technical support-email, telephone or video online.
4. User-friendly English manual for machine using and maintaining.
5. Several sets wearing parts will be free for you.
1. Is your products customized?
Yes, because the working conditions are different, all our products are customized depending on
detail requirement! So if you give us more information about the lift capacity, span, lift height, power
source and other specials, we will give you a very quick quote!
2. What’s the information should I provide when inquiry?
Thanks for your question. The more information you provide, the accurate solution we can prepare for you! The information such as the lift capacity, span, lift height, power source or other specials you give us will be more appreciated.
3. How many operating methods for my selection?
The standard operating methods we provide is pendent controller with push buttons. Meanwhile, we
can also provide the remote control with push buttons and the cabin (space capsule seat) control with joystick. You can choose any of them, just tell us.
4. Do your side can provide other lift tools?
Yes, we can provide any kinds of lift tools such as lift, jib crane , grab, overhead crane,flatcar or other specials as your requirement!
