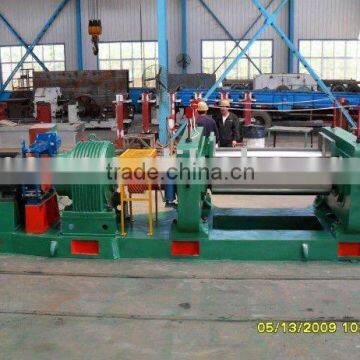

XK-450 Open Type Rubber Mixing Mill
- 200 Set / Sets per Month
- Qingdao
- T/T
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | Eenor |
Product Description
Specifications
1.mixing roll machine are sold worldwide in more than 30 countries and regions.2.mixing roll machine passed the ISO9001.
Good quality with reasonable price. Easy operation with convenient maintenance. Low labor intensity and low energy consumption.
USE:
This machine is mainly used in Rubber & Plastic Product factory for Natural Rubber Mixing(plasticating),Raw Rubber and Compound mixing,rubber warm-up mixing and pressing sheet.
Main features:
1) The roll adopts the vanadium titanium metal alloy chilled cast iron and its surface is hard and wear-proof. The internal cavity is processed to make temperature well proportioned on the roll surface.
2) The machine is equipped with an overload protection device to prevent the main components from being damaged.
3) The machine is also equipped with an emergency brake device. When an emergent arises, just draw the safety pull rod, and the machine will stop immediately. It is safe and reliable.
4) The transmission system adopts a hardened tooth-surface reducer, which has a compact structure with higher transmission efficiency, lower noise and longer service life.
5) The base frame is a whole framework, which is convenient for installation.
6) Stock bender for direct rubber sheet and knife to cut as your need to assemble.
7) Auto-lubrication sysytem for greese or oil and match bearing bush.
8) we have CE ,SGS,ISO 9001 certification.
Type | XK-150 | XK-250 | XK-300 | XK-360 | X(S)K-400 | X(S)K-450 | X(S)K-560 | |
Working diameter of rolls (mm) | Ø150 | Ø250 | Ø300 | Ø360 | Ø400 | Ø450 | Ø560 | |
Working length of rolls (mm) | 320 | 620 | 750 | 900 | 1000 | 1200 | 1530 | |
Working linear speed of front roll(m/min) | 8 | 15.1 | 15.1 | 16.25 | 18.65 | 24.5 | 27.7 | |
Max gap (mm) | 10 | 10 | 10 | 10 | 15 | 15 | 15 | |
Capacity per.batch(kg) | 1-2 | 10-15 | 15-20 | 20-25 | 18-35 | 25-50 | 50-65 | |
Driving motor power(kw) | 7.5 | 18.5 | 22 | 30 | 37 | 55 | 95 | |
Overall dimension (mm) | L | 1080 | 3400 | 3580 | 3940 | 4250 | 5200 | 6120 |
W | 796 | 1350 | 1550 | 1780 | 1850 | 2380 | 2280 | |
H | 1415 | 1500 | 1695 | 1740 | 1870 | 1770 | 2000 | |
Weight (kg) | 1100 | 3500 | 5205 | 5670 | 7600 | 13000 | 22000 | |
Notes | Bearing | Nylon bush grease LUB Copper sleeve oil LUB | Nylon bush grease LUB | |||||
Our motto: The honesty is the root, a promise is a promise.
