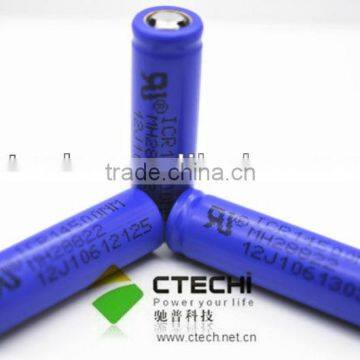

li ion battery cell ICR14500

Specifications

Model No.:ICR14500
Description: Li-ion rechargeable battery
Nominal voltage: 3.7V
Nominal capacity: 750mAh
ROHS

Cylindrical Rechargeable Li-ion Battery

Model ----- ICR14500

Nominal voltage--------3.7V

Weight -------Approx. 20.8g

 Capacity: C5mAh-------- 750mAh

Charging Voltage---------4.200±0.049V

Min. discharging cut-off Voltage--------- 2.75V

Max. Charging cut-off Voltage ---------- 4.20V

Diameter ------------- 13.9±0.2mm

Height----------- 50±0.5mm

Charging Term (20^oC):

Standard charging------ First at 350mA of current charged to 4.2V;

then by constant current to the minimum drain of 20mA

Speedy charging---- 750mAto 4.2V, then constant voltage to 20mA

Working Ambient(Suggested)

Stock Temp. (15-35°C)

Relative humidity (45-75%)

Air pressure (86-106Kpa)

Discharging------------ -20-60°C

Standard charging------------- 0-45°C

Relative humidity ------------- <93%

Air pressure------- 86-106kPa

Standard Testing Ambient (Except special requirements)

Temperature-------- 20°C±5°C

Relative humidity---------------- 65±20%

Other types of batteries as follows:

ICR26650, ICR18500, ICR18650, ICR18630, ICR17670, ICR17500, ICR17360, ICR16340, ICR14650, ICR16340, ICR14500, ICR14430, ICR14250, ICR10440, ICR10250, ICR10220 and so on.
