Fiber Braided Flexible Rubber Air Brake Pipe Assembly With SAE J1402 Standard
- NINGBO/SHANGHAI
- T/T Credit Card PayPal
You May Like
-
SAE J1402 Fiber Braided Flexible Rubber Air Brake Hose Tubing Assembly for Motorycle
-
1/8'' SAE J1401 Hydraulic Brake Hoses for Car
-
5/16" EN853 1SN Hydraulic Rubber Hose and NPT Fittings
-
1/4" SAE 100 R1AT Hydraulic Hose Assemblies
-
Hydraulic Hose Fitting Assembly
-
DOT Certificate 1/8'' SAE J1401 Hydraulic Automobile Rubber Brake Hose Assembly
Product Details
| Place of Origin | Zhejiang, China | Brand Name | paishun, paishun | |
| Model Number | Rubber Air Brake Hose, rubber brake hose |
Product Description

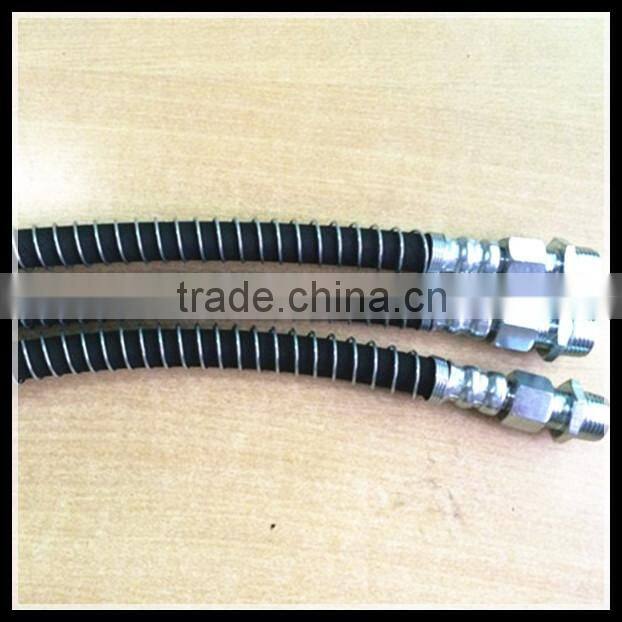

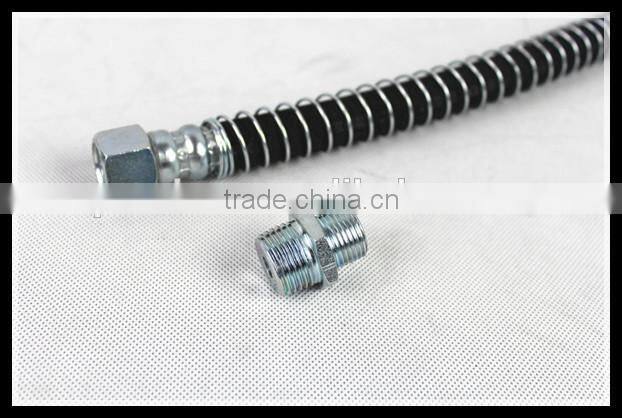

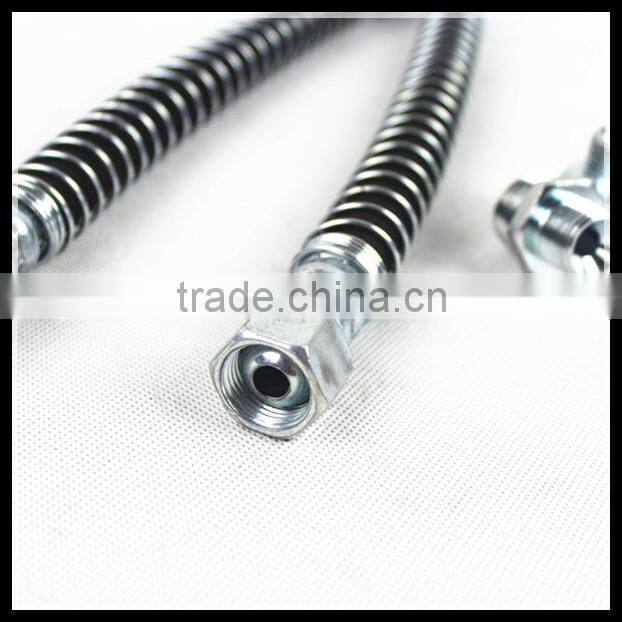

J1402 Rubber Air Brake Hose
Hose Construction
Inner Tube: Black, Smooth, NBR/SBR Rubber Compound.
Reinforcement: Synthetic textile yarns.
Cover: Black, smooth, abrasion, ageing
and weather-resistant CR rubber compound.
Applications:
Widely used in automotive air brake systems.
Temperature Range:
-40 °C (-40 °F) to + 93 °C (+200 °F).
Tolerances:
According to SAE J1402 – TABLE A
Technical Specifications:
Size | I.D. (inch) | I.D. (mm) | O.D (mm) | Wall(mm) | Wall Diff (mm) | W.P. Max.Mpa | B.P. Min Mpa |
5 | 3/16" | 5±0.2 | 14±0.3 | 3.50 | <0.3 | 1.1 | >12 |
6 | 1/4" | 6±0.2 | 15±0.4 | 4.50 | <0.3 | 1.1 | >12 |
8 | 5/16" | 8±0.2 | 15±0.3 | 3.50 | <0.3 | 1.1 | >12 |
10 | 3/8" | 10±0.3 | 17±0.4 | 3.75 | <0.3 | 1.1 | >12 |
13 | 1/2" | 13±0.3 | 23±0.4 | 3.50 | <0.4 | 1.1 | >12 |
14 | 9/16" | 14±0.3 | 23.5±0.4 | 3.80 | <0.4 | 1.1 | >12 |
16 | 5/8" | 16±0.3 | 24±0.4 | 4.00 | <0.4 | 1.1 | >12 |
With 10 years' experience, Passion Hoses are now exporting to Countries all over the world.
The main market is America, Britain, Australian, UAE, Canada , Brazil and so on.
Alice J
Sales Supervisor
Tel: +86-571-81023091
Mobile: +86-15968806735
Skype: paishun_ocean
Need the latest price? Please send message to Alice.
I will reply you immdiately.:-)
Have a nice day!
