Home > Products > HB MIni PABX > 8 Co Lines 64 Exts Factory Price Telephone Line Switch Pabx

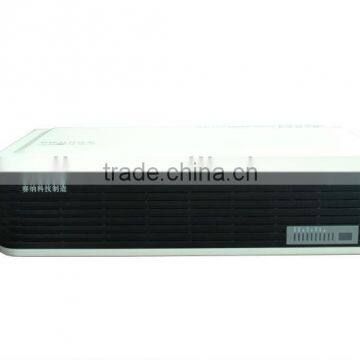

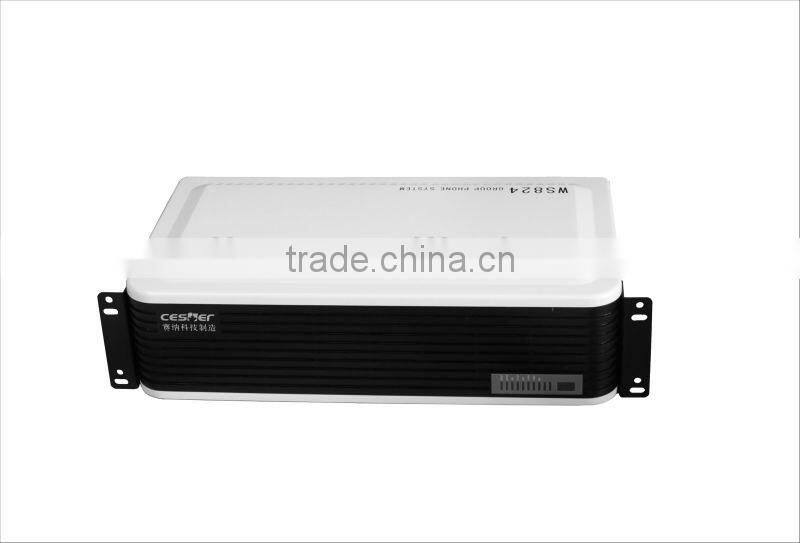

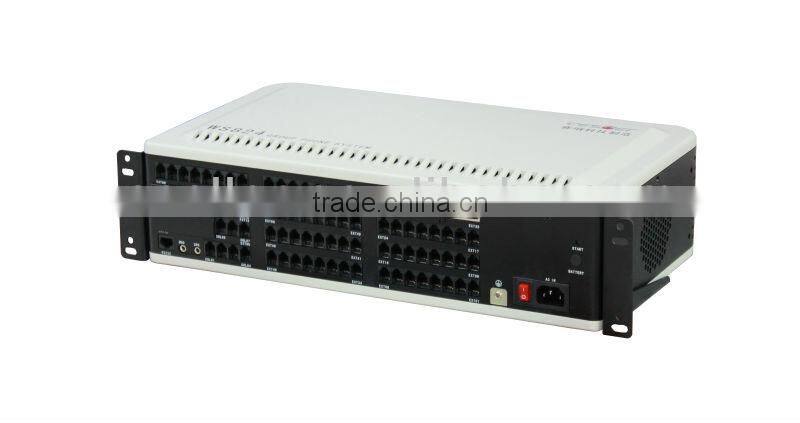

8 Co Lines 64 Exts Factory Price Telephone Line Switch Pabx
- Shenzhen or Hongkong
- T/T Credit Card PayPal
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | CE or OEM | |
| Model Number | WS824(9)i telephone switch pabx |
Product Description
Specifications
new factory facto price telephone line switch pabx1. Call on holding
2. Support key phone
3. 8 Co Lines 64 Exts
Model:WS824(9)i
Automatic Operator ServiceVIP Operator Service
IVR Selection per CPN
Login Authentication & GUIAdministrator account (1)Main Line (3 accounts)Extensions (30 accounts)
Busy Line Indicator
SIP / PSTN Trunking
Extension Calling
Extension RestrictionIntra-Network,
Local, Domestic, and International Calls Direct ,Inward Dialing Emergency
Call Manager/Secretary Functions
Music on Hold
Distinct Ringing
Location Free Extension Dialing
Incoming Call History
Outgoing Call History
Calling Detail Record
Real Time Extension Line Status
Busy/Idle Display Extension/ID Display Presentation Status
Call Transfer
Personal Ring-Back Tones
Call Rejection (Call Cancellation)Selective Call Rejection
Click-to-Dial
Three Way Calling
Phone Book Grouping (User group, FXO group, etc.)
Line Hunt Group (Serial & CircularHunt)
Name/Title Display
Outgoing Line Selection
Hot Line
Custom Dialing PlanLeast Cost Routing
Do Not Disturb
Call Waiting
Call Hold,Hot Line (Instant or Delay)
Speed Dial List (30/Line)
Caller ID Suppression
Outgoing Call BarringCaller ID (Name & Number)
Caller ID on Call Waiting
Specification Parameter
| Size | 430*240*124mm |
| Weight | 3kgs |
| FXx(PSTN) | 4/10 |
| FXO+FXS | 4/88 or 10/72 |
| CDMA/GSM | Optional |
| IP user | 100 |
| IP concurrent | 20 |
IP and Traditional voice concurrent channel | 4 |
| SIP trunk | 9 |
| LAN Port | 1 |
| SIP Protocol | YES |
| Record | Optional |

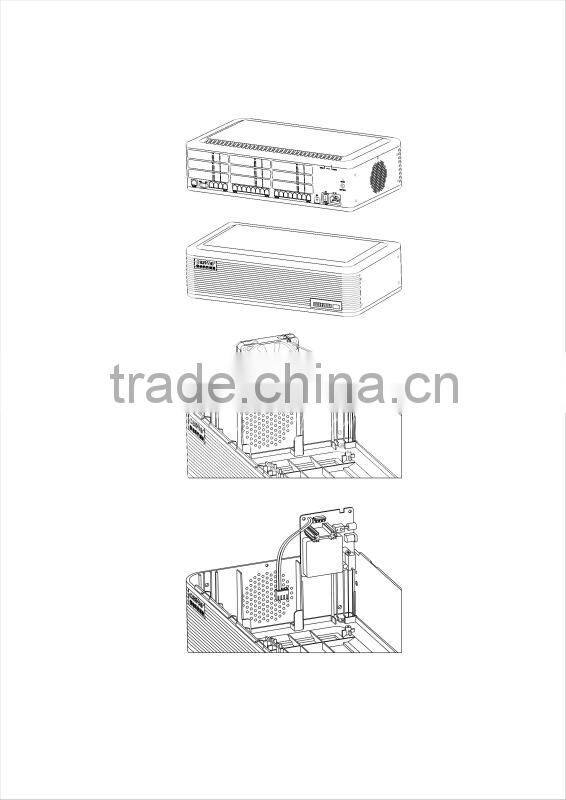

installation drawing
Power Supply
Power supply voltage: 110VAC or 220 VAC,50/60 Hz
Maximum power consumption: 30W
Cross-talk attenuation: >70db
Internal feeding voltage: +28VDC, 30mA
Internal ringing voltage:75VAC/50Hz
External line port voltage: <60VDC
External line port ringing voltage: 35VAC/25Hz or >35VAC/50Hz
Environmental Limits
Operating temperatures: 0°C to 45°C (32°F to 113°F)
Operating humidity: 10% to 95% without condensation
CABLE REQUIREMENTS
Feature phone: Maximum 100m(2 pairs twisted wire 0.5@)
Single line phone: Maximum 1,000m(1 pair twisted wire 0.5@)
Outgoing call: DTMF
Cross lose: > 70dBII
WS824(9)i-ip function board

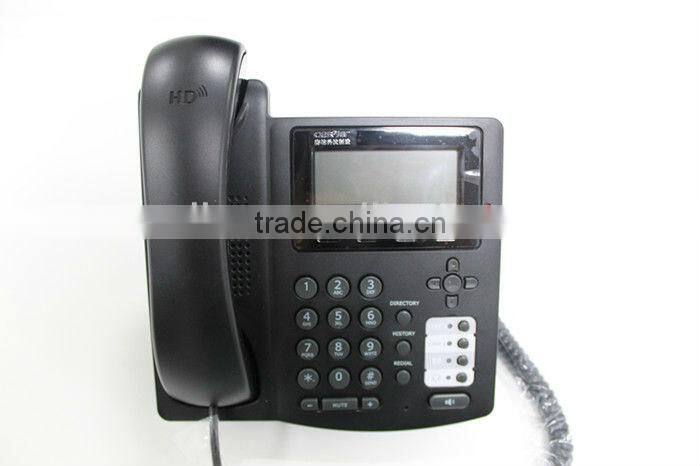

SIP Phone

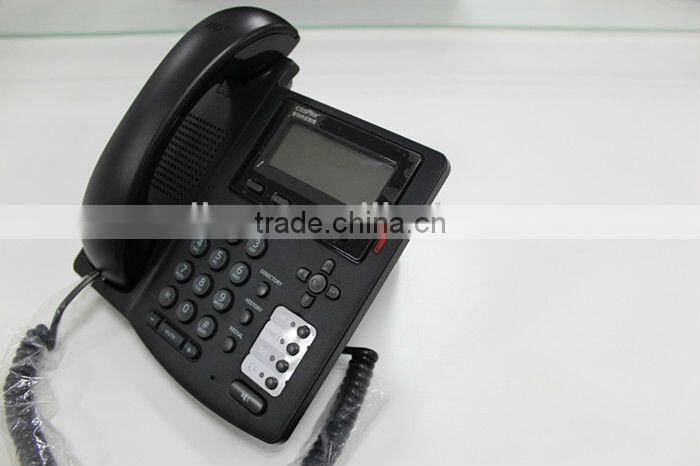

Special Key Phone
3S Billing Software
Shenzhen Cesller Technology Co.,Ltd,our headquarter lies in Canada. It is a hi-tech. Company, specializing in manufacturing, developing, selling of group-phone system and communication equipments. The managing idea is to provide continually communication products which joint global communication and synchronize to world communication.
Shipping to worldwide by DHL, FEDEX, TNT and UPS etc.
Lanny Welcome you to ask for price.
Skype: cesller
Contact Us
- Shenzhen Guowei Cesller Technology Co., Ltd.
- Contact nameLanny Liu Chat Now
- Phone86-0755-61363900-238
- Address4/F, Block A,Hainengda Science Park, No.3 Baolong 4th Road, Longgang District, Shenzhen, Guangdong, China, Shenzhen, Guangdong
