pbx 4-line telephone exchange with call recorder

Specifications

  pbx 4-line telephone  exchange with call recorder/ gsm gateway pbx

1.  Can be connected with12 key phones

2.  System programmed and monitored by key phone easily.

3.  Built-in 6 duration Out-Going Message.(9)F

4.  Built-in Caller ID function for intercom and outside Line number and number can be transferred display again and again.. An incoming call number can be displayed at 5 extensions at same time.

5. Economical Code  auto-route

6. Select a CO Line directly without dialing digit  “9”.

7.  Day/Night Service manually

8.  Flexible Extension Numbering

9.  255 groups Walking Account Code

10.  Manger/Secretary Call-group

11.  3-party Conference Call

12.  Hot Dialing

13.  Auto call back on busy

14.  Multi-answer Mode

15.  Call Forward

16  Setting Operator

17.  Extension lock

18.  Call Pick-up

19.Conversation Time Alarm

 20.Interrupt and disconnect an outside call

The machine has the expansion boards showed as the table:

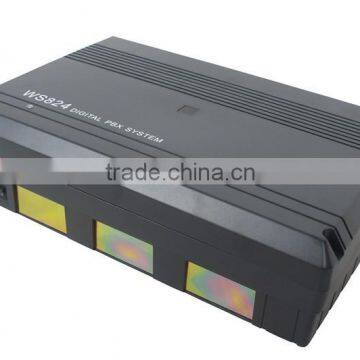

WS824(9)F Main Unit

Remarks:

(1)Power Supply Board:P01 board and P02 board: (1)Ground(2)75VAC/50Hz/100mA(P01 board)or 75VAC/525Hz/40mA(P02 board),(3)+5VDC/1A,(4)+32VDC.

(2)220VAC Power Cable

(3) Power Switch

(4) Cable between Power Supply Board and Mother Board

(5) ports oder from right to left

(6)2-4 ports can be  008A board

(7) 14-16 ports can be   008A board

(8) 2-16 ports can be 008C board

Specification

Power supply voltage: 11VAC or 220 VAC,50/60 Hz

Maximum power consumption: 80W(5A)

                          50W(9A)

Cross-talk attenuation: >70db

Operating temperatures: 0°C to 45°C (32°F to 113°F)

Operating humidity: 10% to 95% without condensation

Feature phone: Maximum 100m(2 pairs twisted wire 0.5@)

Single line phone: Maximum 1,000m(1 pair twisted wire 0.5@)

Connect with PC, connecting length:<30m

(1)Source of music:

Input impedance:600Ω

Input audio level:025Vpp-1Vpp

(2)Sound amplification output:

Output impedance:600Ω

Output audio level:025Vpp-0.4Vpp

(3)Battery backup supply:24VDC/7Ah
