CE approved mobile yard telescopic ladder DCQY-10
- 1500 Set / Sets per Month
- qingdao
- T/T
You May Like
-
gold quality mobile yard dock leveler DCQY-10
-
ISO/CE approved mobile hydraulic dock ramp 12ton 0.9--1.7m
-
ISO/CE approved mobile hydraulic dock ramp 10ton 0.9--1.7m
-
ISO/CE approved mobile hydraulic dock ramp 8ton 0.9--1.7m
-
ISO/CE approved mobile hydraulic dock ramp 6ton 0.9--1.7m
-
ISO/CE approved mobile hydraulic dock ramp 4ton 0.9--1.7m
Product Details
Place of Origin | Shandong, China | Brand Name | Jinchuan | |
Model Number | DCQY-10 | Lift Mechanism | Telescoping Lift | |
Lift Drive / Actuation | Hydraulic | Power | 2.2kw | |
Rated Loading Capacity | 10000kg | Min. Lifting Height | 0.9m | |
Max. Lifting Height | 1.7m | Table Size | 10500*1900mm | |
Overall Dimensions | 10500*2000mm | Weight | 2300kg | |
Certification | CE ISO | Warranty | 1 year | |
After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
CE approved mobile yard telescopic ladder DCQY-10

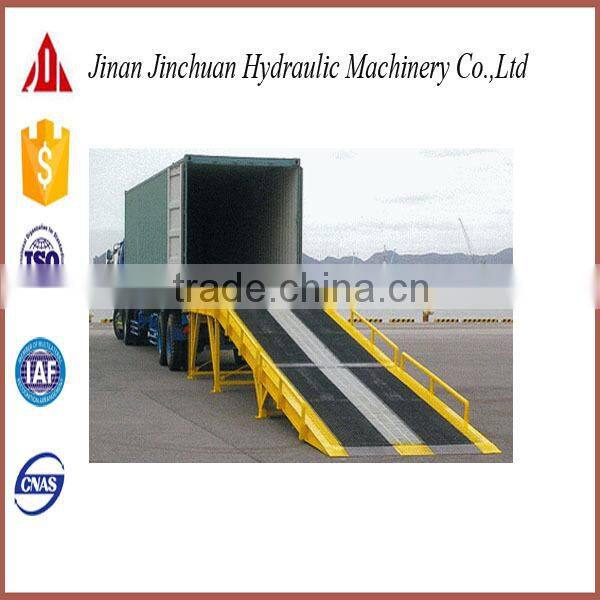

1. Product show:

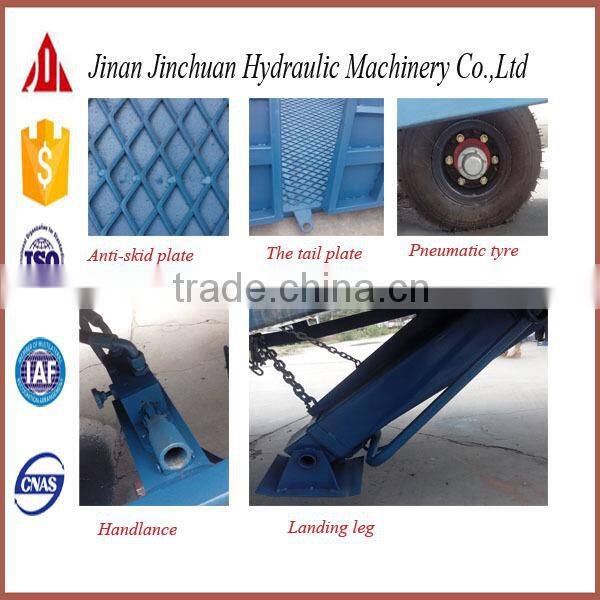

2. Fetures:
1). hydraulic drive, easy to operate and reliable operation.
2). lip connected with the long axis of the entire platform, high strength, good reliability.
3). the use of imported seals to protect the hydraulic system has excellent sealing performance.
4). the overall use of imported modular hydraulic station, good sealing and long service life.
5). high-intensity "U" shaped beam designed to ensure their long-running high-load without deformation.
6). the use of non-slip tread plate, so that the platform has a good anti-slip properties.
7). both sides of the fortification apron rolling pin to prevent accidental injury toes stretching platform.
8). features to protect maintenance personnel to enter Ramps internal maintenance safety rod.
3. Different models ramps:
Model | Lifting distance | Loading Capacity | Table Size | Weight |
DCQY6 | 0.9-1.7m | 6000kg | 10500*2000mm | 2300kg |
DCQY8 | 0.9-1.7m | 8000kg | 10500*2000mm | 2500kg |
DCQY10 | 0.9-1.7m | 10000kg | 10500*2000mm | 2600kg |
DCQY12 | 0.9-1.7m | 12000kg | 10500*2000mm | 2700kg |
DCQY15 | 0.9-1.7m | 15000kg | 10500*2000mm | 2900kg |
DCQY20 | 0.9-1.7m | 20000kg | 10500*2000mm | 3300kg |
4. More about ramps:
Jinan jinchuan company is a professional manufacturer for different models lift platforms and dock ramps. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in interior and exterior building decorations, workshops, docks, stations, supermarkets, halls, etc.
Our products are widely recognized and trusted by users and can meet continuously developing economic and social demands.
Factory rooms:
Certificate:
Customers:
Packing:
We always make the lift machine packed inner with wrap film and outer with plywood case. The plywood case is free of steaming kaori, and it is exempted from inspection products, save a lot of trouble in the process of export or import.
Shipping:
We generally quote FOB price. About the shipping, we promise to deliver goods within 7 days after receive payment.If the quantity of machine is small, we will do LCL and FCL if your order is one container. The shipping price will adjust according to the shipping.
1.Delivery time
Within 7- 12 working days after we receive the order.
2. Payment terms
T/T, L/C, other kinds, pls contact with us.
3. MOQ
Generally speaking, the MOQ is 1 set, Different products have different MOQ, pls contact with us.
4. Custom-made
Jinchuan lifts can be custom-made.
If you have any questions, pls feel free to ask me, I will answer you as soon as possible. You can contact by Skype or Email.
Skype: jinchuanlift
Email: jinchuanlift02/at/
