Hydraulic Warehouse Guiderail Goods Platform Lift With Competitive Price
- Qingdao
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
5 Tons High Quality Hydraulic Stationary Guide Rail Lift Platform SJG5T-10
-
5 Tons High Quality Hydraulic Stationary Guide Rail Lift Platform SJG5T-8
-
5 Tons High Quality Hydraulic Stationary Guide Rail Lift Platform SJG5T-4
-
High Quality Hydraulic Stationary Guide Rail Lift Platform SJG5T-12
-
High Quality Hydraulic Stationary Guide Rail Lift Platform SJG0.5T-4
-
Hot Sale Guide Rail Lift/Hydraulic Vertical Cargo Lift for Warehouse
Product Details
| Place of Origin | Shandong, China | Brand Name | Jinchuan | |
| Model Number | SJD | Lift Mechanism | Lift Chain | |
| Lift Drive / Actuation | Hydraulic | Power | 5.5Kw | |
| Rated Loading Capacity | 3~5Tons | Min. Lifting Height | 0m(level with the ground) | |
| Max. Lifting Height | 6500mm | Table Size | 2000*2000mm | |
| Overall Dimensions | 2300*2300*6800mm | Weight | 1000kg | |
| Certification | CE ISO9001 | Warranty | 12months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

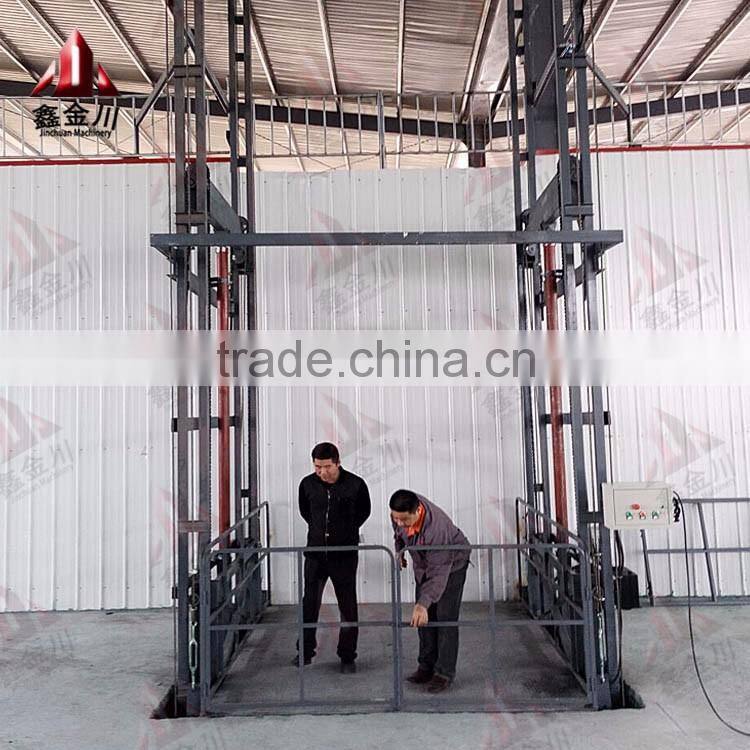

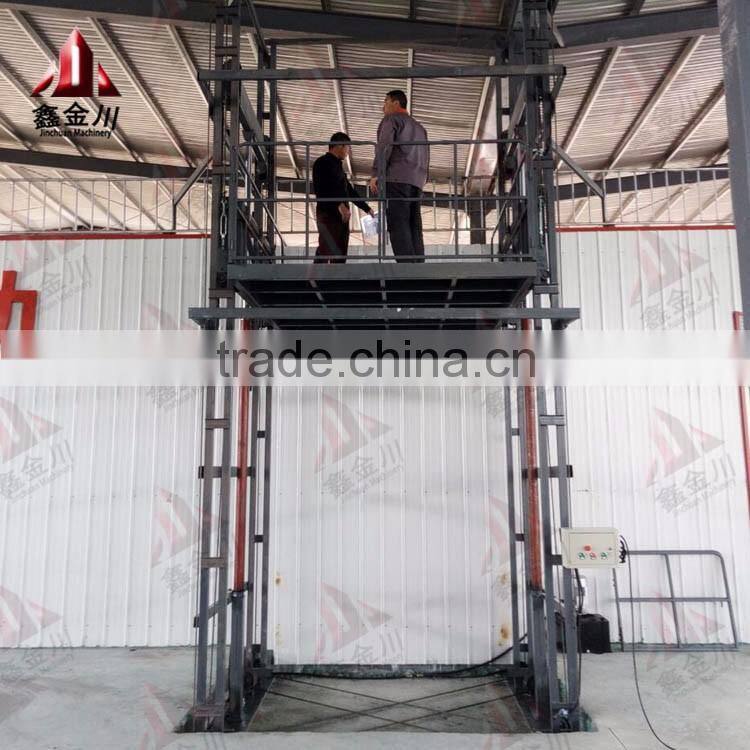

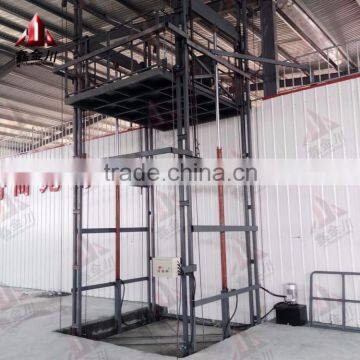

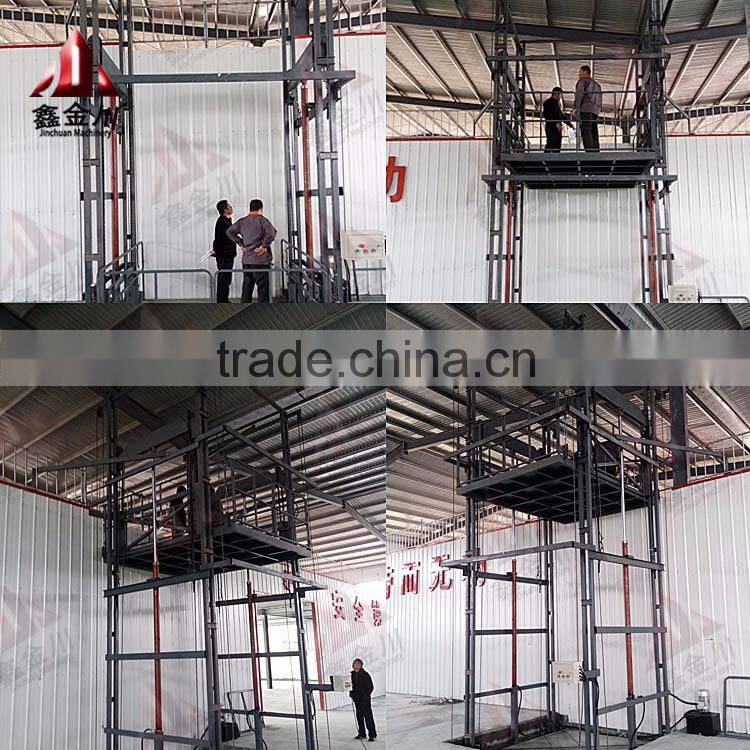

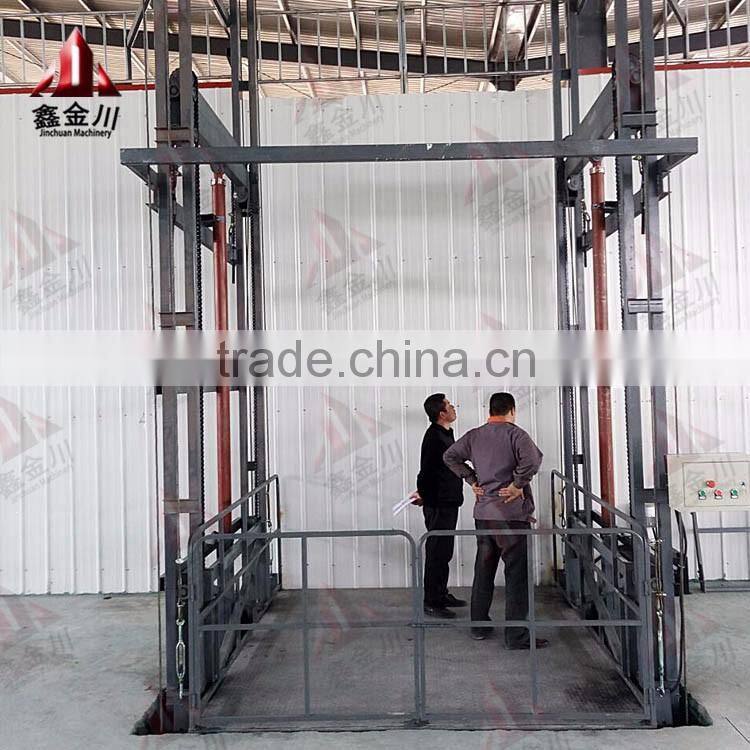

Hydraulic guide rail vertical lift
1. Introduction
Hydraulic cargo lift is widely used for transporting cargo or cars from ground floor to
upperfloors, which provides fast, efficient, convenient and safe access to mezzanines,
balconies, basements, and any levels in multistoried building. It can be installed indoor
and outdoor applications
2. Model list for reference(Customized serivice is Available.Need your demand working platform size,lifting height,load ,voltage,and the pit space )
| Model | Load | Platform size | Lifting height | Pit depth | Power |
| LRL 3-2.4 | 3T | 2.0*2.0M | 2.4M | 300 MM | 2.2 KW/380V |
| LRL 3-2.4 | 3T | 2.0*2.0M | 2.4M | 200 MM | 4 KW/380V |
| LRL 2-5 | 2T | 2.1*1.2M | 5.0M | 180 MM | 4 KW/380V |
| LRL 1-4.5 | 1T | 2.1*1.5M | 4.5M | 200 MM | 3 KW/380V |
| LRL 5-6.5 | 5T | 2.2*1.6M | 6.5M | 280 MM | 5.5 KW/380V |
| LRL 3-6.5 | 3T | 2.2*1.9M | 6.5M | 200 MM | 5.5 KW/380V |
( Note: the lift is customized according to Lifting Height, Load Capacity and Platfom size).
3. Detailed parts
The guide rail, cylinder, cross-beam, base support, wire rope wheel and horizontal
support were already fixed together, so the lift is easy to assemble and install.
4. Safety
Hydraulic cargo lift not only have all safety device of the traditional elevator, but also
have the special system:
(1). Spillover valve, it can prevent high pressure when the machine moves up.
(2). Manual emergency valve, it can go down to the nearest floor and open the door when meet an emergency.
(3). Manual pump, it can go down to the nearest floor and open the door when meet an
emergency.
(4). Pipe fracture valve, when the hydraulic system pipe fracture, it can cut down the
(5). Overload warning device. When the cargo on the platform is over the rated capacity of the lift, the warning light will work.
5. Application
Cargo lift transmit materials--in factories, warehouses, industrial plants, workshop, car showroom institutions-anywhere that products or supplies need to move from one level to another. provides fast, efficient,convenient and safe access to any levels in multistoried building. It economize on Manpower and improve work efficiency.
6. After sales
1. User-friendly English manual for machine installation using and maintenance.
2. One year warranty for whole machine without man-made fault;
3. We will send you parts for free if there are any non-human factors problem during warranty time
4. 24-hours technical support by email, telephone or other communication online.
5. We could reply you in 2 hours after received your any questions even on weekend and
holiday. Engineers are available to your country if necessary.
