2m 770lb hydraulic lifts for disabled people/hydraulic personal lifts/wheelchairs for elderly
USD $1,000 - $3,000
/ Set
1 Set(Min.Order)
- 895 Set / Sets per Month
- Qingdao
- T/T
You May Like
-
2m 770lb hydraulic home elevator lift/ vertical wheelchairs for elderly/disabled one man lift
-
hydraulic wheel chair lift for the disabled and the elderly
-
hydraulic home stair lift/hydraulic electric hydraulic stair lift/hydraulic lift for disabled wheelchair
-
the disabled barrier-free wheelchair lift platform /vertical lifts for disabled man
-
4m Customized Disabled Passenger Lift/250kg Capacity Handicapped Stair Lifts
-
1.5-7m hydraulic lifts for disabled people/electric lift for the disabled/wheelchair disabled lift
Product Details
| Place of Origin | Shandong, China | Brand Name | jinchuan | |
| Model Number | CJR-1.7 | Lift Mechanism | Lift Chain | |
| Lift Drive / Actuation | Hydraulic | Power | 2.2kw | |
| Rated Loading Capacity | 100-350kg | Min. Lifting Height | 60mm | |
| Max. Lifting Height | 1700mm | Table Size | 1200*1200mm | |
| Certification | CE iSO | Warranty | 1YR |
Product Description
Product Description

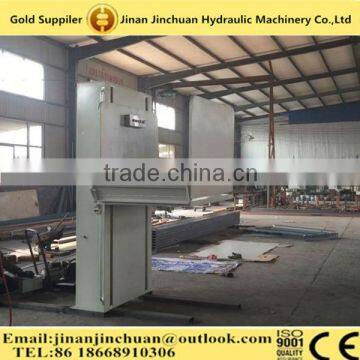

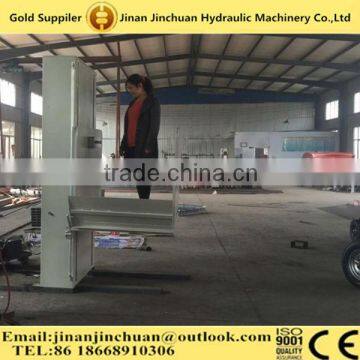

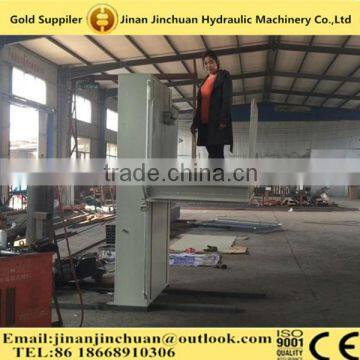

The wheelchair lift consists of a platform with high side walls, an upper landing gate, a platform mounted gate, a drive system and easy-to-use operating controls. Suitable for indoor and outdoor use.
Platform size | 1200mm(L)* 1200mm(W) | |
Max Platform Height | 1700 | |
Speed | 60mm/s | |
Load capacity | 150KG~350KG | |
Operate voltage | 24V | |
Power Output | 2.2KW | |
Power Input | 220V/50HZ (or customized for local power supply) | |
Drive System | Hydraulic | |
Control Mode | Inching Switch or Automatic | |
Drive Control | Self-resetting system | |
Overload | Protection Over current relay | |
Material of Platform | Checkered slip-proof aluminum alloy | |
Painting | Plastic electrostatic spraying | |
Working Condition | Both indoors and outdoors | |
Working temperature | From -10°~60°C | |
Installation | Non-pit installation, directly fixed to concrete floor (the concrete floor below the platform shall not be lower than the ground) | |
Control Device | Calling box (installed on the wall nearby) and remote controller(Extra optional) | |
Emergency Stop | The lifting and lowering process can be stopped immediately by pressing the emergency button. | |
Safety device | Safety Interlock | Lock the platform when it is out of control |
Emergency lowering | The platform can be lowered by opening hydraulic valve manually or rolling screw rod. | |
Local power is available at the working sites (220V etc)
1. Directly installed into the ground without pits and easy to operate.
2. The hydraulic system give passengers smooth and comfortable transportation.
3. Hydraulic overload protective organization.
4. Pump equipped single control solenoid valves to prevent the platform dropping if power failure.You can
open the manual dropped valve to lower the platform to the home position.
5. Operating voltage 24V safety to mankind.
Service:
We also supply spare parts and supply technical supporting all the time.(Spare parts: control button, travel switch, Oil cylinder seals and the wrench etc.)
1. Directly installed into the ground without pits and easy to operate.
2. The hydraulic system give passengers smooth and comfortable transportation.
3. Hydraulic overload protective organization.
4. Pump equipped single control solenoid valves to prevent the platform dropping if power failure.You can
open the manual dropped valve to lower the platform to the home position.
5. Operating voltage 24V safety to mankind.
Service:
We also supply spare parts and supply technical supporting all the time.(Spare parts: control button, travel switch, Oil cylinder seals and the wrench etc.)
