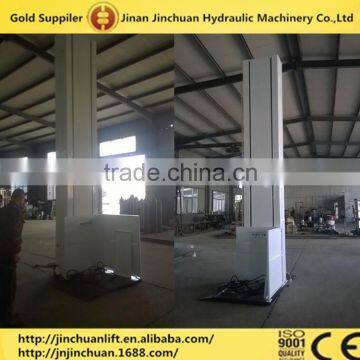

Electric Wheelchair Lift Disabled Wheelchair Lift Quality Choice
- 500 Set / Sets per Month
- Qingdao
- T/T
You May Like
-
High quality hydraulic lifts for disabled people/lift with no obstacle SJG0.25-6
-
High quality hydraulic lifts for disabled people/lift with no obstacle SJG0.25-3
-
High quality hydraulic lifts for disabled people/lift with no obstacle SJG0.25-1
-
Wheelchair home elevator Lifts / handicapped wheelchair lift for disabled people
-
Chinese factory supply the disabled wheelchair lift/vertical access wheelchair lifter
-
2016 Low Price Elevator Wheelchair Lift For Disabled folding ladder
Product Details
| Place of Origin | Shandong, China | Brand Name | Jinchuan | |
| Model Number | CJR-5.5 | Lift Mechanism | Lift Chain | |
| Lift Drive / Actuation | Electric Motor | Power | 2.2kw | |
| Rated Loading Capacity | 300kg | Min. Lifting Height | 0.3m | |
| Max. Lifting Height | 5.5m | Table Size | 1.2*1.1m | |
| Overall Dimensions | 6*1.25*1.15m | Weight | 1200kg | |
| Certification | CE ISO9001 | Warranty | 12 Months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Application:
The wheelchair elevator lift wheelchair stair lift outdoor wheelchair lift is a device to transport wheelchair or motorized scooter and individual from one floor to another. It allows user to move freely within a multi-floored building. It is widely used for home, indoor and outdoor of public building.
Customized product can be done as your request, please tell us load weight, lift height, and platform size, our engineer will design a suitable lift for you soon.
Technical Parameters:
Specification: | |
Model | SJG5.5-3 |
Load capacity | 300kg |
Max. Platform Height | 5500mm |
Platform size | 1200mm(L)* 1100mm(W) |
Dimension | 6000mm(L)*1250mm(W)*1150mm(H) |
Min Platform height | 100mm |
In and out | 180°in and out |
Self weight | 750kg |
Material | Stainless steel or aluminum alloy with Powder coating |
Power Input | 220V/50HZ/1PH/1.5KW |
Convenient operation design: | |
Drive System | Hydraulic |
Control Mode | Inching Switch |
Drive Control | Self-resetting system |
Calling device | Calling box (Located at ground and upstairs), remote controller (optional) |
Column switch | Two column switches, one is on the ground floor, one on the first floor |
Working temperature | From -10°~60°C |
Overload | Protection over current relay |
Automatic ramp | 75°ramp Range |
Working Condition | Both indoors and outdoors |
Installation | Non-pit installation, directly fixed to concrete floor |
Safety Device: | |
Safety Interlock: | Lock the platform when it is out of control |
Emergency Stop | The lift can be stopped immediately in case of any emergency |
Emergency Lowering | The platform can be lowered by manual down button in case of power failure |
Safety Sensor | The lift will be stopped immediately if the safety edge meets obstacles when going down. |
Auto-flap ramp | Turn up to max 75°and prevent the wheelchair outside |
Products Photoes:
