360 Degree Rotation Towable Buliding Cleaning Trailer Boom Lift
- qingdao
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
360 Degree Rotation Hydraulic Cleaning Trailer Boom Lift
-
360 Degree Rotation Compact Trailer Boom China Lift Platform
-
Made In China Ever Eternal Used Car Lift Car Handrail
-
Top End Used Hydraulic Home Garage Car Lift
-
Cheap Price China Quick Lift Car LIft Used Car Lifts
-
High Quality Used 4post Hydraulic Car Lift For Sale
Product Details
| Place of Origin | Shandong, China | Brand Name | JInchuan | |
| Model Number | GKT-12.5 | Lift Mechanism | Articulated Lift | |
| Lift Drive / Actuation | Hydraulic | Power | 2.2kw, Diesel engine &Battery machine | |
| Rated Loading Capacity | 200kg | Min. Lifting Height | 2m | |
| Max. Lifting Height | 14m | Table Size | 750*600mm | |
| Overall Dimensions | 5100*1950*2950mm | Weight | 700kg | |
| Certification | CE;ISO9001:2000 | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

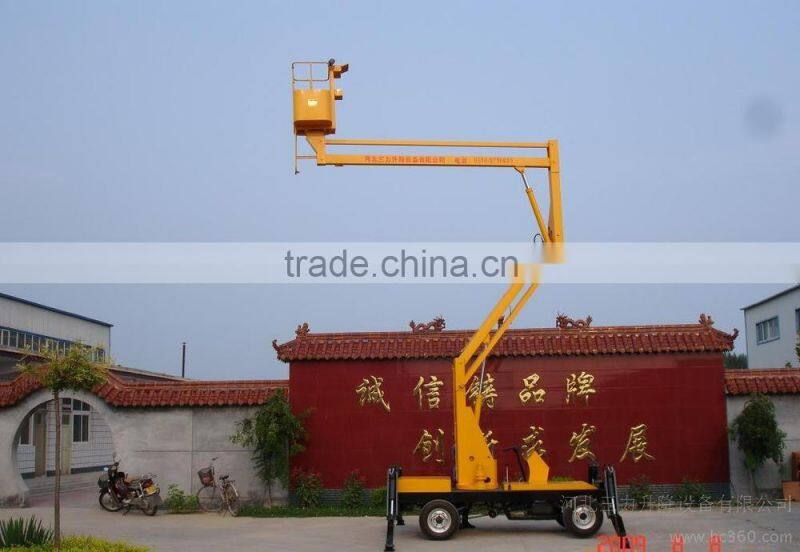

360 Degree Rotation Towable Buliding Cleaning Trailer Boom Lift
1. Introduce
---It is used for maintenance or aerial work, can also move a short distance..
--- One person drive and another person operate on the platform. trailer boom lift
---It can move upside and down automatically, be operated both in the up basket and down drive seat
2. Advantages
---Two sources of power:Storage battery and Diesel engine.And the storage battery works without noise.
--- With four full-automatic hydraulic legs,it can be more stable. trailer boom lift
---Boom rotation 360°, so it can work across the barriers. trailer boom lift
3. Model list
Model | GTZ-10.5 | GTZ-12 | GTZ-13 | GTZ-14 |
height(m) | 10.5 | 12 | 13 | 14 |
Platform height (m) | 9 | 10.5 | 11.5 | 12.3 |
Max.horizontal extent(m) | 3 | 3.4 | 4 | 4 |
Rotation | 360° | 360° | 360° | 360° |
Platform capacity(kg) | 200 | 200 | 200 | 200 |
Size (mm) | 3500×1700×2900 | 3900×1900×2600 | 3900×1950×3000 | 4800×2000×3100 |
Total weight(kg) | 1600 | 1900 | 2000 | 2200 |
Lifting speed(m/s) | 0.05-0.09 | 0.05-0.09 | 0.05-0.09 | 0.05-0.09 |
Work pressure(kpa) (Mpa) | 10 | 10 | 10 | 10 |
Travel speed(km/h) | 15-30 | 15-30 | 15-30 | 15-30 |
Wind-proof | ≤5 | ≤5 | ≤5 | ≤5 |

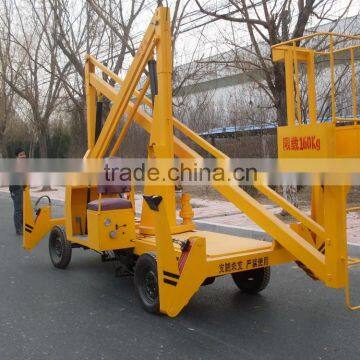

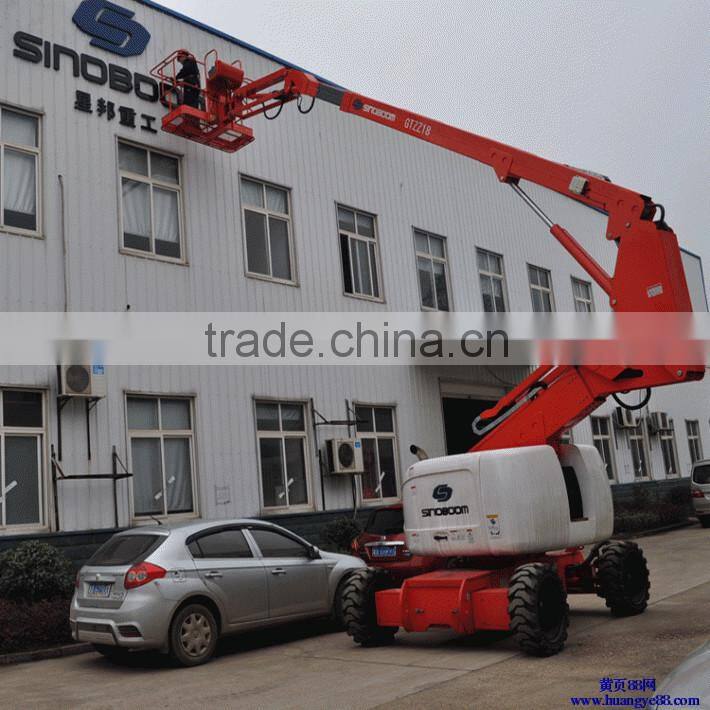

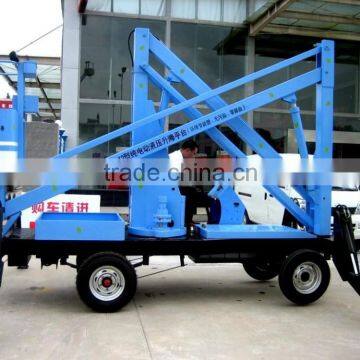

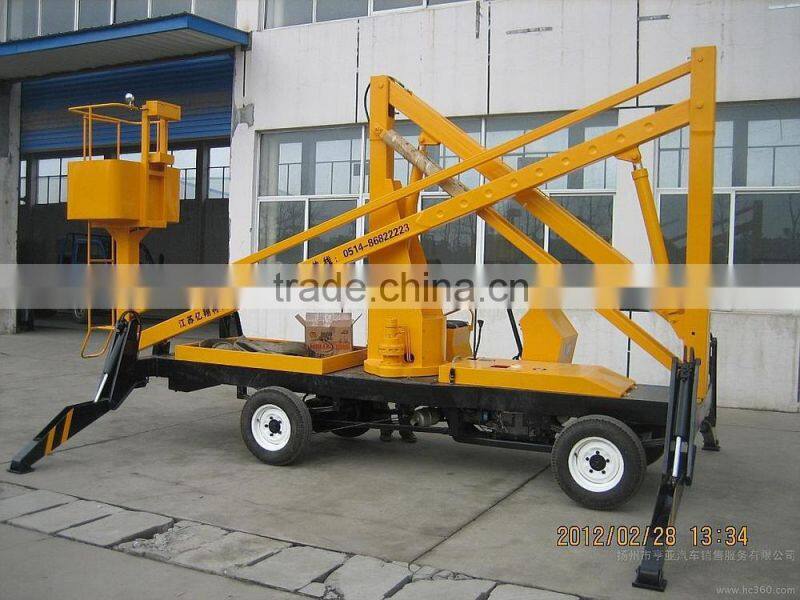

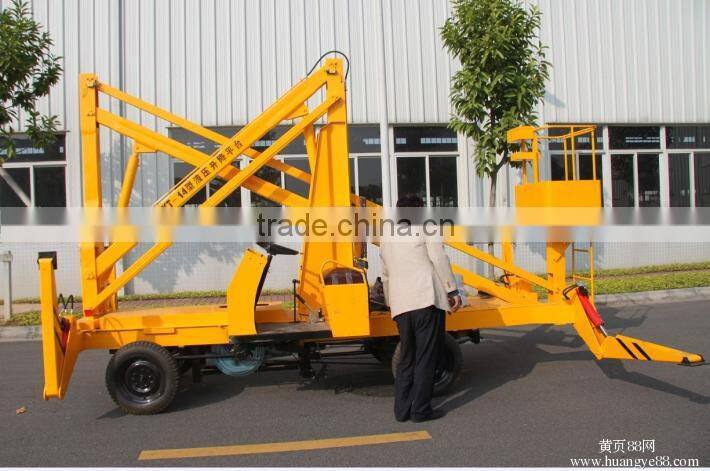

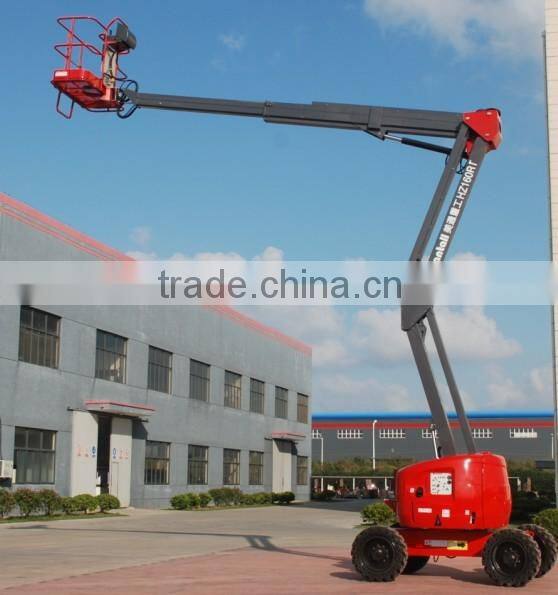

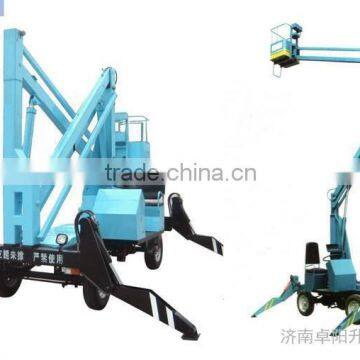

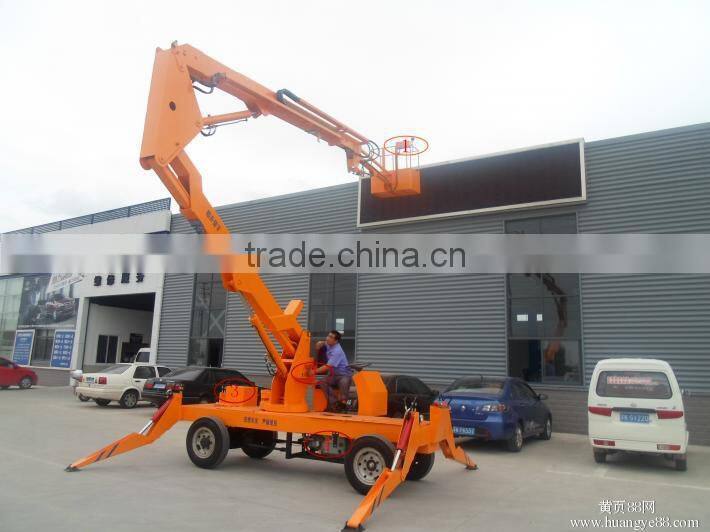

4. Here are some products display.
5. About our factory:
6. Contact us:
