Home > Products > Ceramic Fiber Module > ceramic fiber module for reformer

ceramic fiber module for reformer

FOB Price

Negotiable / Piece

100 Pieces(Min. Order)

Port QINGDAO

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Feature

Fireproof

Product Description

YAOXING ceramic fiber folded module was processed according to the fiber module structure size by special machine on the ceramic fiber needle blanket which was corresponding material.

In the course of processing, they should be maintained a certain proportional reduction,

to ensure that compressed to form a integer set without joint between ceramic fiber folded blanket

after ceramic fiber folded module have been built.

Owing to the ceramic fiber folded module expand differently.

Ceramic fiber folded module could be fixed to the stud

which in the steel board of industrial furnace by series of anchors.

Data Sheet

Classification Temperature	1050	1260		1400
Code	YXTX-189	YXTX-289	YXTX-389	TXTX-489	TXTX-589
Shrinkage on Heating (%)	950℃×24h ≤-3	1000℃×24h ≤-3	1100℃×24h ≤-3	1200℃×24h ≤-3	1350℃×24h ≤-3
Theoretical Density (kg/m3)	200±10
Shot Content (φ≥0.25mm)(%)	≤15
Theoretical Thermal Conductivity (W/m·k)	0.050-0.060(200℃)
	0.095-0.120(400℃)
	0.160-0.195(600℃)
Al2O3 (%)	≥44	≥45	≥45	52-55	38-40
Al2O3+SiO2 (%)	≥96	≥97	≥99	≥99	-
ZrO2 (%)	-	-	-	-	15-17
Al2O3+SiO2+ ZrO2 (%)	-	-	-	-	≥99
Fe2O3 (%)	≤1.2	≤1.0	≤0.2	≤0.2	≤0.2
K2O+Na2O (%)	≤0.5	≤0.5	≤0.2	≤0.2	≤0.2
Specification (mm)	300×300×200,According to your requirements
Package	Woven Bag/Carton
Quality Control System	ISO9001-2000 ,ISO14001-1996

Application

Furnace lines of various industrial furnace and heating equipment in metallurgy,

machine, construction and material, petrol-chemical and ferrous metal industry.

1.Oil heaters

2.Reformer

3.Forge furnaces

4.Process heaters

5.Preheating furnaces

6.Crude oil heaters

7.Fume incinerators

8.Tunnel kilns

9.Cracking Furnaces

10.Shuttle kilns

11.Annealing furnaces

Packaging & Shipping

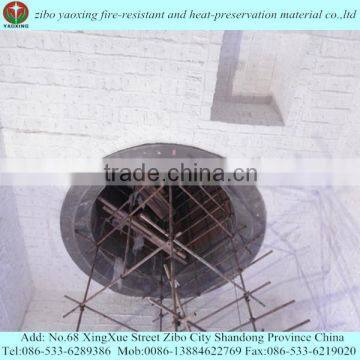

Tunnel Kiln Site

Construction

Our Services

Furnace Construction Experience

We are zibo yaoxing fire-resistant and heat preservation materials co., ltd.

is a professional team of furnace construction.

We have rich experience in construction of tunnel kilns,car furnace,

pit furnace,drop tube furnace,melting aluminium furnace cover,furnace door and so on.

And our ceramic fiber blankets,ceramic fiber modules,

refractory anchors and other related furnace refractory materials are exported

to Malaysia,Indonesia,Vietnam,Tajikistan and so on.

Even more important,we can provide you the professional instructor in your construction site.

So,choosing us is our best opportunity

to exchange the international experience of furnace construction with each other.

Sincerely hope we can have a pleasant cooperation in the future.
