ceramic fiber module for annealing furnaces
- QINGDAO
You May Like
Product Details
| Feature | Fireproof |
Product Description
YAOXING ceramic fiber folded module was processed according to the fiber module structure size by special machine on the ceramic fiber needle blanket which was corresponding material.
In the course of processing, they should be maintained a certain proportional reduction,
to ensure that compressed to form a integer set without joint between ceramic fiber folded blanket
after ceramic fiber folded module have been built.
Owing to the ceramic fiber folded module expand differently.
Ceramic fiber folded module could be fixed to the stud
which in the steel board of industrial furnace by series of anchors.
Data Sheet
Classification Temperature | 1050 | 1260 | 1400 | ||
Code | YXTX-189 | YXTX-289 | YXTX-389 | TXTX-489 | TXTX-589 |
Shrinkage on Heating (%) | 950℃×24h ≤-3 | 1000℃×24h ≤-3 | 1100℃×24h ≤-3 | 1200℃×24h ≤-3 | 1350℃×24h ≤-3 |
Theoretical Density (kg/m3) | 200±10 | ||||
Shot Content (φ≥0.25mm)(%) | ≤15 | ||||
Theoretical Thermal Conductivity (W/m·k) | 0.050-0.060(200℃) | ||||
0.095-0.120(400℃) | |||||
0.160-0.195(600℃) | |||||
Al2O3 (%) | ≥44 | ≥45 | ≥45 | 52-55 | 38-40 |
Al2O3+SiO2 (%) | ≥96 | ≥97 | ≥99 | ≥99 | - |
ZrO2 (%) | - | - | - | - | 15-17 |
Al2O3+SiO2+ ZrO2 (%) | - | - | - | - | ≥99 |
Fe2O3 (%) | ≤1.2 | ≤1.0 | ≤0.2 | ≤0.2 | ≤0.2 |
K2O+Na2O (%) | ≤0.5 | ≤0.5 | ≤0.2 | ≤0.2 | ≤0.2 |
Specification (mm) | 300×300×200,According to your requirements | ||||
Package | Woven Bag/Carton | ||||
Quality Control System | ISO9001-2000 ,ISO14001-1996 | ||||
Furnace lines of various industrial furnace and heating equipment in metallurgy,
machine, construction and material, petrol-chemical and ferrous metal industry.
1.Oil heaters
2.Reformer
3.Forge furnaces
4.Process heaters
5.Preheating furnaces
6.Crude oil heaters
7.Fume incinerators
8.Tunnel kilns
9.Cracking Furnaces
10.Shuttle kilns
11.Annealing furnaces

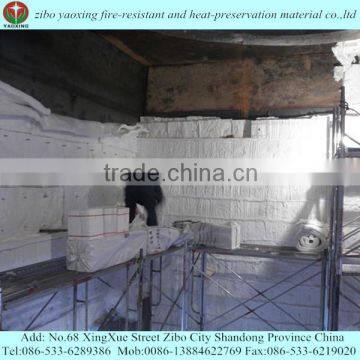

Tunnel Kiln Site
Construction
Furnace Construction Experience
We are zibo yaoxing fire-resistant and heat preservation materials co., ltd.
is a professional team of furnace construction.
We have rich experience in construction of tunnel kilns,car furnace,
pit furnace,drop tube furnace,melting aluminium furnace cover,furnace door and so on.
And our ceramic fiber blankets,ceramic fiber modules,
refractory anchors and other related furnace refractory materials are exported
to Malaysia,Indonesia,Vietnam,Tajikistan and so on.
Even more important,we can provide you the professional instructor in your construction site.
So,choosing us is our best opportunity
to exchange the international experience of furnace construction with each other.
Sincerely hope we can have a pleasant cooperation in the future.
