hydraulic vertical single mast electric aluminum alloy one man telescopic lift for sale

FOB Price

USD $1,900 - $2,700 / Set

1 Set(Min.Order)

Supply Ability 200 Set / Sets per Month
Port Qingdao/Shanghai
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China	Brand Name	jinchuan
Model Number	SJYL0.1-10	Lift Mechanism	Telescoping Lift
Lift Drive / Actuation	Hydraulic	Power	0.75/1.1kw
Rated Loading Capacity	100kg	Min. Lifting Height	800mm
Max. Lifting Height	10000mm	Table Size	550*550mm
Overall Dimensions	15008702300mm	Weight	480kg
Certification	ISO9001	Warranty	12months

Product Description

Specifications:

Single Aluminum-alloy-mast Lifts are made up of high grade aluminum profile and equiped with the universal wheels, easily pushed around to the designated sites,beautiful structure,compact mainbody,light weighted,safe and reliable;The control panels are available on the lift platforms and ground, it is mainly used for the installation and maintenance of the narrow spaces such as star hotels,modern workshops,business hall,hotels,lobby,restaurant,railway stations,exhzibition hall and shopping malls, it is a good helper for the equipment maitenance,paint decoration; Easily go through the regular doors and elevators,of low energy consumption, no pollution, do no damage to the grounds.The lifting height ranges from 3m to 10m and lifting capacity varies from 100 to 150kg.The power sources could be 220V,380V or chargeable battery.

Models:

Item		SJYL0.1-6	SJYL0.1-8	SJYL0.1-10
Capacity(kgs)		100
Min.Lifting height(m)		1.98	1.98	2.3
Max.Lifting height(m)		6	8	10
Working Height(m)		7.5	9.5	11.5
Platform size(m)		0.55*0.55	0.55*0.55	0.55*0.55
Overall dimension(m)		1.260.81.98	1.40.851.98	1.50.872.3
Net weight(kg)		380	450	480
Power	Current	AC
	Voltage	220
	Kilowatt	0.75/1.1
	Phase	2
Main material		High strength aluminum alloy
Frame materail		High strength steel
Oil cylinder		Accurate grinding hydraulic oil cylinder
Power supply		Italian joint venture pumping station
Control mode		Using control pane and control box,all ok!

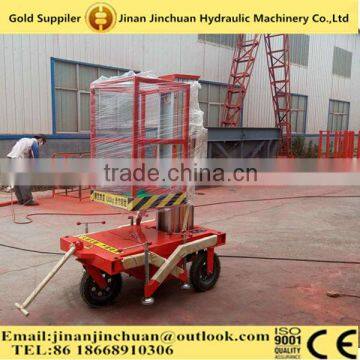

Pictures show:
