Fruit mixer machine

Place of Origin	Henan, China		Brand Name	SENHE
Model Number	MM21898		Voltage	220/380v
Warranty	one year		After-sales Service Provided	Engineers available to service machinery overseas
Condition	New		Certification	CE,ISO9001

Specifications

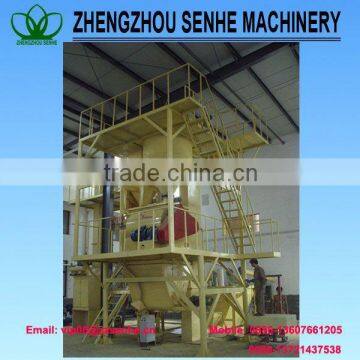

Dry mortar plant
Dry mixed mortar ribbon machine
Weightless twin shaft paddle mixing machine

 Usage of MM21898 Fruit mixer machine:

 building materials and feedstuff



-----------------------------------------------------------------------------------------------------------------------



-----------------------------------------------------------------------------------------------------------------------





Types of MM21898 Fruit mixer machine:



1.Dry mixed mortar ribbon machine



Advantage



1,Running smoothly



2,High speed. Only 5-10 minutes per batch



3,Mixed uniformity



4,Small residual amount.



5,Easy to operation ,2-3 people can make it.



6,Low cost. Small investment, high efficiency.







Features:



Good dispersion: the equipment totally solves the problems like low uniformity caused by the proportional weight of material and dead space. It adopts the structure stirred by three spirals, dispersing all kinds of short fiber.



Wide usage: it can meet the needs to produce dry mix mortar of different performance requirement
Small investment: it bears advantage like the low price, small investment and apparent effectiveness.



Easy and convenient usage: the machine occupies small area, easy operation, and low energy consumption producing 5-8t per hour.



Long life: the easy injured part of the equipment adopts components of high strength wear-resistant steel which guarantee its useful life.







Technical Parameter



Model	WZ300	WZ500	WZ1000
Power	2.2kw	5.5kw	7.5kw
Elevator power	1.5kw	2.2kw	2.2kw
Capacity	300kg/batch	500kg/batch	1000kg/batch
Mixing time	5-10min	5-10min	5-10min





-----------------------------------------------------------------------------------------------------------------------

-----------------------------------------------------------------------------------------------------------------------



2.Weightless twin shaft paddle mixing machine



Advantage



1,Low power consumption



2,Less wear and tear
3,Quick discharging of mixture
4,Easy to clean



Features:



Twin shaft paddle mixing machine has a strong and efficient features and short mixing time, the design of the mixing time of 3 minutes, to 1:1000 put the proportion of uniformity greater than 95%; horizontal cylinder body two stirring shaft constant velocity anti-to the rotation axis of special angle of the blade to ensure that the material radial, circumferential and axial to shed movement, to form a composite cycle, to achieve uniform mixing within a very short time.



Discharge form
The form of the material of the flap valve pneumatic (manual), arc valves are closely embedded in the barrel, flush with the inner wall of material accumulation, and mixed dead space phenomenon; standard open the door a small door, large door openings to the tube side of the discharge clean and fast, less residue.







Two blade
To reduce the cost of equipment, the replacement of wearing parts, the paddle blades can be made into two type, a removable small leaves in the leaf base pad may direct replacement of worn blades, economic and efficient.







Blade and cylinder gap
Paddle blade and the cylinder wall clearance directly affect the mixing effect, as well as the material body material residues; my company product leaves the cylinder gap control in the 3 ~ 5mm.
