Screw terminals electrolytic capacitor 400V 10000uF
- NINGBO
- Credit Card
You May Like
-
B41560 B41580 B43310 B43330 B43564 B43584 Electrolytic Capacitor with screw terminals
-
B41560 B41580 B43310 B43330 B43564 B43584 Aluminum Electrolytic Capacitor
-
B41456 B41458 B41550 B41570 B41554 Electrolytic Capacitor with screw terminals
-
B41456 B41458 B41550 B41570 B41554 Aluminum Electrolytic Capacitor
-
Electrolytic capacitor Snap in capacitor 400V
-
Electrolytic capacitor Snap in capacitor 450V
Product Details
| Place of Origin | China | Brand Name | AnXon Aluminum electrolytic capacitor | |
| Model Number | CD135 Aluminum electrolytic capacitor | Type | Aluminum Electrolytic Capacitor | |
| Application | General Purpose | Package Type | Through Hole | |
| Capacitance | 10000UF Aluminum electrolytic capacitor | Rated Voltage | 450V, 400V, 350V, 250V, 200V, 160V, 100V, 80V, 63V, 50V, 35V, 25V, 16V | |
| Operating Temperature | -40C ~ +85C |
Product Description
Screw terminal aluminum electrolytic capacitor 400V 10000UF, Screw type Large can aluminum electrolytic capacitor 400V, 400V 10000MFD Bolt type Electrolytic Capacitor, 10000UF 400V 85C 2000 hours electrolytic capacitor offered by AnXon Electronic

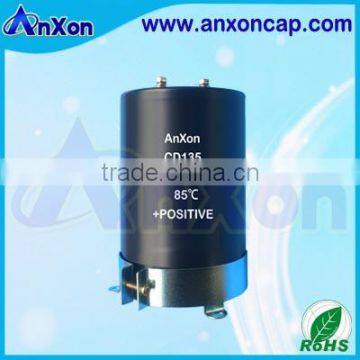

Screw terminals electrolytic capacitor 400V 10000uF
Rated Spec: | 400V 10000uF, 400V 10000MFD |
Tolerance: | M, ±20% |
Type: | Screw terminal, Large can, Bolt type |
Load life : | 2000 hours at 85C |
Operating Temperature: | -40C ~ +85C |
Size / Dimension(ΦD×L): | D: 90mm, L: 157mm |
Our Advantage :
1. Short lead time, quick delivery
2. Low cost price , great quality
3. 100% convinced by world class customers
4. Custom case size capacitor available
Screw Terminal Large Can Aluminum Electrolytic Capacitor Application Guide
• UPS, Industrial power supply
• Frequency converters, Wind power converters
• Switch-mode power supplies
• Solar inverters
• Professional power supplies
Aluminum Electrolytic Capacitors with screw terminals 10V, 16V, 25V, 35V, 50V, 63V, 80V, 100V, 160V, 200V, 250V, 350V, 400V, 450V
400V Informations
Series | Spec. | Cap Code | Dimension(mm) | Load life | |
D | L | ||||
CD135 | 400V 330UF | 331 | 36 | 53 | 85C 2000 hours |
400V 390UF | 391 | 36 | 83 | ||
400V 470UF | 471 | 36 | 83 | ||
400V 560UF | 561 | 36 | 83 | ||
400V 680UF | 681 | 36 | 100 | ||
400V 820UF | 821 | 36 | 100 | ||
400V 1000UF | 102 | 51 | 75 | ||
400V 1200UF | 122 | 51 | 75 | ||
400V 1500UF | 152 | 51 | 96 | ||
400V 1800UF | 182 | 51 | 96 | ||
400V 2200UF | 222 | 51 | 120 | ||
400V 2700UF | 272 | 64 | 96 | ||
400V 3300UF | 332 | 64 | 115 | ||
400V 3900UF | 392 | 64 | 130 | ||
400V 4700UF | 472 | 77 | 115 | ||
400V 5600UF | 562 | 77 | 130 | ||
400V 6800UF | 682 | 77 | 155 | ||
400V 8200UF | 822 | 90 | 157 | ||
400V 10000UF | 103 | 90 | 157 | ||
400V 12000UF | 123 | 90 | 196 | ||
400V 15000UF | 153 | 90 | 236 | ||
