Home > Products > Hydraulic Breaker > JISAN BRAND Excavator Hammer
JISAN BRAND Excavator Hammer
- yantai/ qingdao
- T/T Credit Card
You May Like
-
Excavator Hammer / Rock Hammer With 140 mm Chisel
-
Large Hydraulic Breaker/ 44-100tons Excavator Hammer
-
Hydraulic Breaker Excavator Hammer/top Type Hydraulic Breaker/top Bracket Hydraulic Breaker
-
JISAN BRAND Hydraulic Excavator Hammer Suitable for Various Excavator
-
JSB3500S JISAN BRAND Excavator Jack Hammer Hydraulic Breaker
-
New Design Excavator Demolition Jack Hammer
Product Details
| Place of Origin | Shandong, China | Brand Name | JISAN | |
| Model Number | JSB series |
Product Description
JSB series breakers are compatible with various brand of excavators include: DOOSAN,KOMATSU,CAT,SNAY ,HYUNDAI R ,BOBCAT,CAT PALLET ,VOLVO ,KOBELCO ,KATO ,KUBOTA ,JCB,CASE ,GEHL ,Liebherr,ZOOMLION,YUCHAI,LG etc.
We have side type breaker ,top type breaker and box(silent) type breaker for your choice.
Fig 1 The side type of excavator hammer

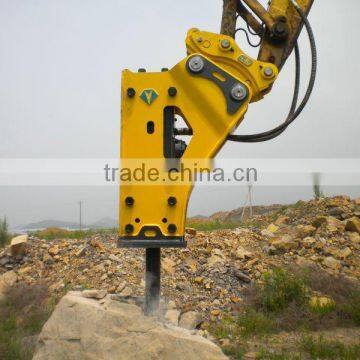

Fig 2 The top type of excavator hammer
Fig 3 The box type of excavator hammer
The features of excavator hammer
-less noise
-well heat-treated tool
-piston features powerful impact force and longer stroke
-accumulator less stress to hydraulic components as absorbing pressure fluctuation
-main valve internal control valve system is more efficient by 10% to 15% than other breaker’s valve, stays cooler and makes the breaker quick and harder-hitting
-Cushion damper absorbs repercussion from hammering and increases carrier endurance
The parameters of excavator hammer
THE SPECIFICATIONS OF SIDE TYPE BREAKER | ||||||||
ItemModel | Unit | JSB100S | JSB200S | JSB400S | JSB400S | JSB600S | JSB800S | JSB900S |
Suitable Excavator | ton | 0.8-2.0 | 1.2-3.0 | 2.0-4.0 | 3.0-5.5 | 4.0-7.0 | 7.0-14.0 | 11.0-16.0 |
Chisel Diameter | mm | 40 | 45 | 53 | 68/70 | 75 | 85 | 100 |
Total Weight | kg | 70 | 80 | 165 | 254 | 264 | 486 | 853 |
Overall Length | mm | 920 | 1100 | 1190 | 1347 | 1528 | 1920 | 2260 |
Operating Pressure | kg/cm2 | 90-120 | 90-120 | 90-120 | 110-140 | 110-160 | 120-170 | 150-170 |
Required Oil Flow | L/min | 15-25 | 15-25 | 25-50 | 25-45 | 30-45 | 45-85 | 80-120 |
Impact rate | bpm | 800-1400 | 700-1200 | 600-1100 | 500-900 | 500-800 | 400-700 | 400-700 |
Hose Diameter | inch | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 3/4 | 3/4 |
THE SPECIFICATIONS OF SIDE TYPE BREAKER | ||||||||
ItemModel | Unit | JSB1200S | JSB1600S | JSB1900S | JSB2800S | JSB3500S | JSB4500S | JSB5000S |
Suitable Excavator | ton | 15-18 | 19-26 | 19-26 | 27-38 | 28-40 | 36-45 | 40-55 |
Chisel Diameter | mm | 120 | 1350 | 140 | 150 | 155 | 165 | 175 |
Total Weight | kg | 1300 | 1679 | 1898 | 2455 | 2650 | 3753 | 3910 |
Overall Length | mm | 2530 | 2695 | 2810 | 2895 | 3152 | 3310 | 3400 |
Operating Pressure | kg/cm2 | 150-170 | 160-180 | 160-180 | 160-180 | 160-180 | 160-180 | 160-180 |
Required Oil Flow | L/min | 90-120 | 120-160 | 130-170 | 150-190 | 170-220 | 200-300 | 210-290 |
Impact rate | bpm | 400-700 | 400-700 | 400-600 | 350-500 | 250-400 | 250-350 | 200-350 |
Hose Diameter | inch | 1 | 1 | 1 | 1 | 1.25 | 1.25 | 1.25 |
The excavator hammer will be packaged with plywood pallet or case enclosed all hoses
- One year warranty for main machine of excavator hammer
- One-stop service
The service of excavator hammer
Please visit our website: ()
JISAN HEAVY INDUSTARY
JISAN is modernized excavator attachment manufacturer. We are specialized in R&D, production and sale a wide range of excavator front-end attachments such as hydraulic grapple, hydraulic hammer,quick hitch, hydraulic grab bucket, hydraulic compactor, ripper,hydraulic breaker etc. As an original manufacturer, we are able to offer you an attractive price and high quality products.
Our products are widely used for earthmoving ,building demolition,mining,paving road,landscape planting,scrap,dispose waste,sub grade compaction etc.
JISAN HEAVY INDUSTARY is striding toward the world first-class enterprise. We are looking forward to establish closed business relation with you on the multiple benefits basic.
Why us?
Attractive price
Professional sale force
Superior quality
Prompt delivery
Intelligence technical team
