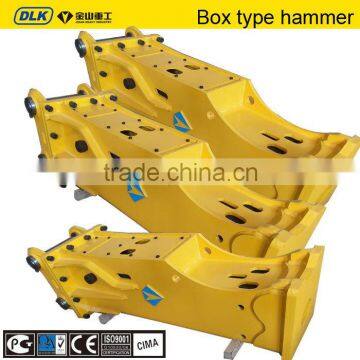

Heavy duty box silent type jack hammer for 35tons of excavator
- Yantai/Qingdao or any port of China
- T/T Credit Card
You May Like
-
Hot sale box silent rock hammer for excavator 21 tons
-
box silent type excavator rock breaker for 21tons carrier
-
7-14tons excavator box silent type jack breaker hammer
-
Box silent type rock hammer breaker for excavator 4-7tons
-
Box silent type 4ton excavator hydraulic rock breaker hammer
-
CE box silent type mini excavator hydraulic rock breaker
Product Details
| Place of Origin | Shandong, China | Brand Name | jisan | |
| Model Number | JSB2800 |
Product Description
Heavy duty box silent type jack hammer for 35tons of excavator
Chisel diameter: 150mm
Hose diameter: 1 inch
Specification data reference
Item / Model | Unit | JSB200S | JSB400S | JSB600S | JSB800S | JSB900S |
Suitable Excavator | Ton | 1.5-3.0 | 3.0-5.5 | 4.0-7.0 | 7.0-14 | 11-16 |
Chisel Diameter | Mm | 45 | 68/70 | 75 | 85 | 100 |
Impact Rate | Bpm | 700-1200 | 500-900 | 500-800 | 400-700 | 400-700 |
Total Weight | Kg | 90 | 254 | 264 | 486 | 853 |
Overall Length | Mm | 1270 | 1347 | 1528 | 1920 | 2260 |
Operating Pressure | Kg/cm2 | 80-100 | 110-140 | 110-160 | 120-170 | 150-170 |
Required Oil Flow | L/min | 15-25 | 25-45 | 30-45 | 45-85 | 80-120 |
Hosepipe Diameter | Inch | 1/2 | 1/2 | 1/2 | 3/4 | 3/4 |
Item / Model | UNIT | JSB1600S | JSB1900S | JSB2800S | JSB3500S | JSB4500S |
Suitable Excavator | Ton | 19-26 | 19-26 | 27-38 | 28-40 | 40-65 |
Chisel Diameter | Mm | 135 | 140 | 150 | 155 | 165 |
Impact Rate | Bpm | 400-700 | 400-600 | 350-500 | 250-400 | 250-350 |
Total Weight | Kg | 1679 | 1898 | 2455 | 2650 | 3753 |
Overall Length | Mm | 2695 | 2810 | 2895 | 3152 | 3310 |
Operating Pressure | Kg/cm2 | 160-180 | 160-180 | 160-180 | 160-180 | 160-180 |
Required Oil Flow | L/min | 120-160 | 130-170 | 150-190 | 170-220 | 200-300 |
Hose Diameter | Inch | 1 | 1 | 1 | 1.25 | 1.25 |
Hydraulic Breaker Standard Accessories as follows:
1) Chisel × 2 pcs
2) Hydraulic oil Hose × 2 pcs
3) General Tool with Tool Box × 1 set
4) Manual Book in English × 1 pc
5) Nitrogen Gas Charging Kit with Hose & Gas Cylinder × 1 set
1. Standard export package by poly-wood case
2. Loading port from Qingdao or any port of China
1. 14 months warranty after delivery
2. Enough stock for wear parts
3. Competitive maintenance cost
4. High efficiency after-service respone
