9-12-8D Centrifugal Fan/blowers/ventilator Factory Ventilation Blower Fan
- Shanghai
- T/T D/P D/A Credit Card
You May Like
-
9-12-7.7A Centrifugal Fan/blowers/ventilator/industrial Roof Exhaust Fan
-
9-12-7.1D Centrifugal Fan/turbo Fan Blower/ventilator
-
9-12-6.8A High Pressure Centrifugal Fan/blower Fan Motor/ventilator
-
9-12 High Pressure Centrifugal Industrial Fan for Cupola Furnace
-
Boiler Induced Draft Fan 4-2x79 Centrifugal Fan
-
4-79 Duct Impeller Fan/exhaust Blowers/centrifugal Fan
Product Details
| Electric Current Type | AC | Blade Material | Other, Steel Plate | |
| Mounting | Free Standing | Place of Origin | Jiangsu, China | |
| Brand Name | JN | Model Number | 9-12-8D | |
| Power | 30-55 Kw | Voltage | 380V/440V/3KV/6KV | |
| Air Volume | 2996-7133 CMH | Certification | CCC |
Product Description
9-12-8D Centrifugal Industrial Fan/blower fan
9-12 Centrifugal fans are specially produced for cupola furnace. It meets the blowing performance demand of cupola furnace whose melting rate is 1-7L/h.It is also used to blow for all kinds of furnaces and smithery furnace. It can also be used to convey non-corrosive, unnatural and non-adhesive gas. The medium should be less than 80 deg C and there should be dust or hard granulated matters no more than 150mg/m³.
The main technical parameters:
Model(No.) | Rotation Speed (r/min) | Power (Kw-P) | Volume Flow (m³/h) | Total Pressure (Pa) |
6.8A | 2930 | 15-2 | 1700-2620 | 11590-12000 |
18.5-2 | 3080-3540 | 12140-12120 | ||
22-2 | 4000-4460 | 11980-11740 | ||
7.1A | 2900 | 15-2 | 2074-2658 | 12347-12661 |
18.5-2 | 3000-3242 | 12807-12896 | ||
22-2 | 3826 | 13024 | ||
30-2 | 4410-4990 | 12935-12739 | ||
7.7A | 2900 | 22-2 | 2349-3010 | 14543-14887 |
30-2 | 3671-4332 | 15171-15319 | ||
37-2 | 4993-5654 | 15220-14985 | ||
45-2 | 6315 | 14583 | ||
8D | 2950 | 30-2 | 2996-3824 | 16216-16528 |
37-2 | 4651 | 16931 | ||
45-2 | 5478-6306 | 17096-16931 | ||
55-2 | 7133 | 16729 | ||
9D | 2970 | 45-2 | 4295 | 20803 |
55-2 | 5481 | 21202 | ||
75-2 | 6667-7853 | 21719-21931 | ||
90-2 | 9039 | 21719 |
...
Certificate:ISO9001:2008

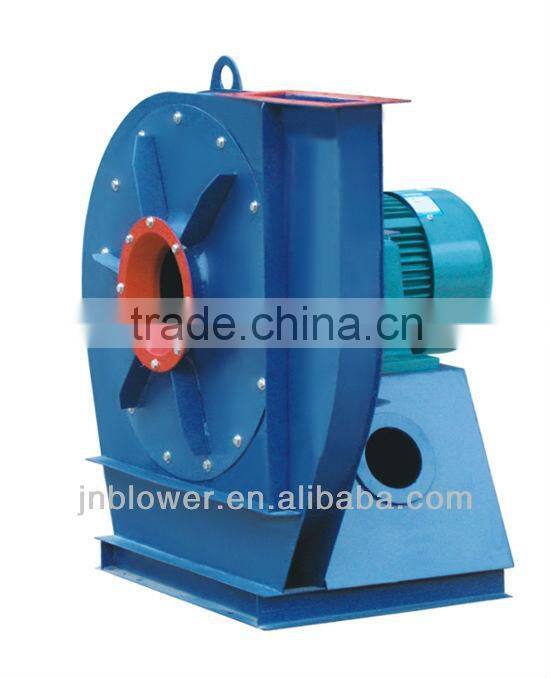

9-12 centrifugal fan product pictures:
Our factory and outgoing pictures:
