Inclined Circulation Fan / Air Condition Blower / Air Ventilator 3.5S
- Shanghai Ningbo
- T/T L/C D/P D/A Credit Card
You May Like
-
GXF series Inclined circulation fan/Building fan/circulating fan capacitor
-
DCBF-800 backward curved counter centrifugal fanindustrial extractor fans commercial extractor fans
-
DCBF-710 backward curved counter centrifugal fan air intake fan axial air extractor fan
-
DCBF-630 backward curved impeller fan air intake fan axial air extractor fan
-
DCBF-560 backward curved impeller fan air intake fan axial air extractor fan Quality Choice
-
DCBF-500 backward curved impeller fan commercial extractor fans air extractor fan
Product Details
Electric Current Type | AC | Blade Material | Cast Iron | |
Mounting | Free Standing | Place of Origin | Jiangsu, China | |
Brand Name | JN | Model Number | GXF-3.5S | |
Power | 0.18 KW | Voltage | 220V/380V/440V/415V/600V | |
Air Volume | 908-2725 CMH | Speed | 910 r/min | |
Certification | CE, Other, CE, ISO9001:2008 | After-sales Service Provided | No overseas service provided |
Product Description

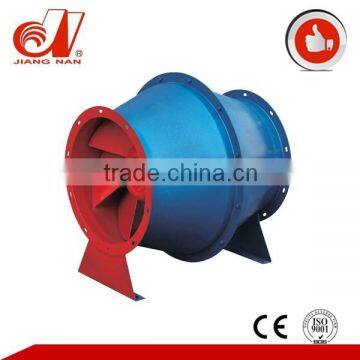

Inclined Circulation Fan/Air Condition Blower/Air Ventilator 3.5S
GXF Diagonal Flow Fan has a drum-shaped structure, whose small suction and discharge nozzle size accelerate the speed of the air flow. Compared with the common axial fans with the same size, GXF Diagonal Flow Fan has a larger volume and a higher pressure coefficient than other fans. Therefore, the product is especially suitable for pipeline installation of a small space, in places like the mining industry, hotels, museums, sports venues for pipeline pressure, the air supply and exhaust, it also used for ventilation in general buildings and tall buildings with the gases temperature between -20oC to 80oC and the dust content and
solid content no more than 100mg/m³.
Machine No. |
Motor Power Kw |
Rotation Speed r/min |
Volume Flow |
Pressure Pa |
Pressure Pa |
3.0F | 0.25 | 1400 | 864-2592 | 179-125 | ≤64 |
3.5S | 0.18 | 910 | 908-2725 | 107-75 | ≤59 |
3.5F | 0.37 | 1400 | 1372-4116 | 243-170 | ≤67 |
4.0S | 0.25 | 910 | 1356-4068 | 139-97 | ≤67 |
4.0F | 0.75 | 1400 | 2048-5163 | 318-222 | ≤76 |
4.5S | 0.37 | 910 | 1931-4862 | 177-131 | ≤68 |
4.5F | 1.1 | 1400 | 2916-5832 | 403-308 | ≤77 |
5.0S | 0.75 | 910 | 2648-6676 | 218-152 | ≤71 |
5.0F | 2.2 | 1420 | 4000-10084 | 498-347 | ≤80 |
6.0S | 1.5 | 960 | 4576-11441 | 312-233 | ≤75 |
6.0F | 5.5 | 1450 | 6912-17425 | 717-500 | ≤84 |
7.0S | 3 | 960 | 7266-18168 | 427-318 | ≤77 |
8.0S | 7.5 | 960 | 10846-21697 | 558-427 | ≤81 |
Product Photos:
Certificate:CE, ISO:9001
Company information:
Wuxi luoshe Jiangnan Fan Factory was established in 1997,located in Wuxi City,Jiangsu Province,China,is a ventilation equipment as the center, Research and development,production,sales and service as and integrated enterprise.
After more than 10 years development,at present in the factory with CNC plasma,sheet metal,metal stamping,shear,maohan and dynamic balance,general and numerical control equipment and precise measuring and test equipment. The company has professional technology r&d team,using computer aided design,can provide clients with various ventilation requirements.In line with the principle of quality first,we run our products through a series of rigorous tests,and passed the ISO9001:2008,CE international quality system authentication.Since the establishment of the company,products are widely recognized by the market,win a good reputation.We have received "Jiangsu Province quality products","Jiangsu Famous enterprise","contract trustworthiness enterprise","Jiangsu quality service prestige AAA advanced units", the many honors.
The Jiangsu Fan as always adhering to the "quality first,the customer is supreme,the good faith is gold,service by enterprise core idea,keep pace with the Times,strengthen the brand construction consciousness,positive market with synchronous,keep out newer and better products,together with our customers and create great achievements!
Our factory and outgoing pictures:
1.Price Term:FOB,CFR,CIF.
2.Port of Loading:Shanghai.
3.Payment Term:30% T/T in advance,70% balance against B/L copy.
4.Delivery Time:15-25 days after receiving your deposit.
Welcome to inquiry,we will provide you best service!
