Best Quality Products SINOTRUK HOWO Concrete Mixer Truck for Sale

FOB Price

US$ 35,000 - 45,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China		Brand Name	SINOTRUK HOWO
Model Number	ZZ5257GJBM3847C		Gross Vehicle Weight	25000

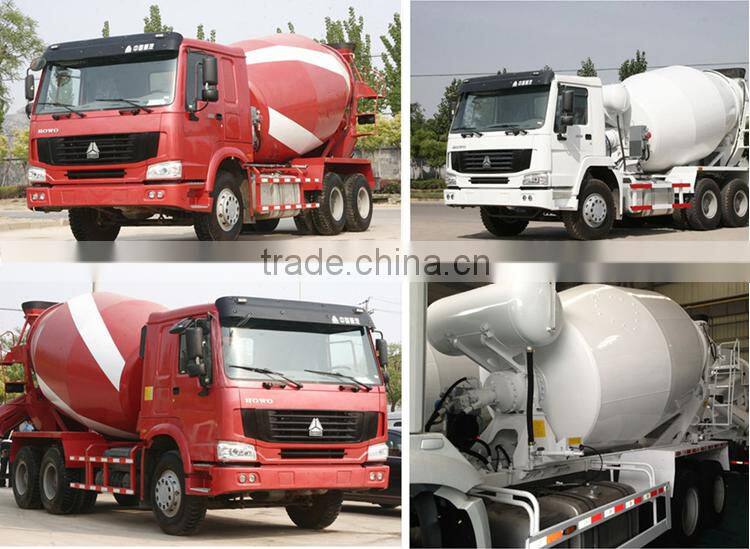

Best quality products SINOTRUK HOWO concrete mixer truck for sale

Product Description

Vechcile information list
Truck brand	HOWO
Truck model	ZZ5257GJBM3847C
Total mass	25000	Tanker volum	8m3
Rated mass	11750	Vechicle size	9040×2496×3850
Curb weight	13120	Cabin seat	2
A/D angle	16/24	F/R hang	1500/2365,1500/2340
Axles	3	Wheel base	3825+1350,3800+1400
Axles loading	7000/18000/18000	Max speed	90,102
Chassis information list
Chassis model	ZZ1257M3847C
Tyre quantity	10	Tyre size	11.00-20
Leaf spring quantity	9/12	Front track	2022,2041
Fuel type	Diesel	Rear track	1830/1830
Standard	Euro II
Engine model	WD615.95	Displacement/power	9726ml/250kw
MIN Groundclearance	314mm
Rated specific	Max speed	78km/h
	Economic speed	62km/h
	Maximum climbable gradient ( % )	70
	Minimum turning diameter ( m )	17
	Maximum torque ( N*m ) / speed ( r/min )	1390/1200-1600 1650/1200-1500
Transmission	HW 10-speed ,10 forward speed, 2 reseve speed
Frame	300mm
Feeding speed	M3/min≥ 3
Unloading speed	M3/min≥ 2
Discharge reside rate	%< 0.5
Water supply model	Air pressure water supply
Delivery time	25 days after receiving the payment
Warranty	12 months, from the date of supply.
Package	Bulk
Remark	Concrete mixer tanker: 8M3 charge rate 58.7% Hydraulic Pump& motor: REXROTH Decelerator: PMP (Italy) Chassis: HOWO

If the above is the truck you need , please wheeldown to the bottom of this page to Send Inquiry to us now.

Or you can Chat with Our Sales Specialist which on the right direction of your current screen.

Of course You also can follow below tips to choose the best truck for your project.

Choose your truck
<10tons		Driving Model:4x2 Engine:65hp,90hp,110hp,115hp,130hp, 160hp,190hp Gearbox: Manuel Transmission Tire:8.25,9.0,10.0 payload:1-10t >>>>>Learn more

15tons to 25tons		Cabin:L2000, Long Cab,with one bed Engine: 266hp,290hp,336hp Gearbox:Manual Transmission with 10 forwards and 2 reverses Tire:1200R20 Radial tire, 12R22.5Tubless tire Hydraulic System:Middle lift or front lift Box Length:4.8-5.4m >>>>>Learn more

25tons to 40tons		Cabin:HW70 without sleeper HW76 with one sleeper Engine: 266hp,290hp,336hp,371hp Gearbox:Manual Transmission with 10 forwards and 2 reverses Tire:1200R20 Radial tire, 12R22.5Tubless tire Hydraulic System:Middle lift or front lift Box Length:4.8-5.6m >>>>>Learn more

Tips to build your truck body
Transport medium	Floor(mm)	Side(mm)
Soil or Stone	8	4
Construction Waste	10	6
Big Ore	12	8
Coal	6	4
clay	8	4
Grain or Chemical fertilizer	6	4
