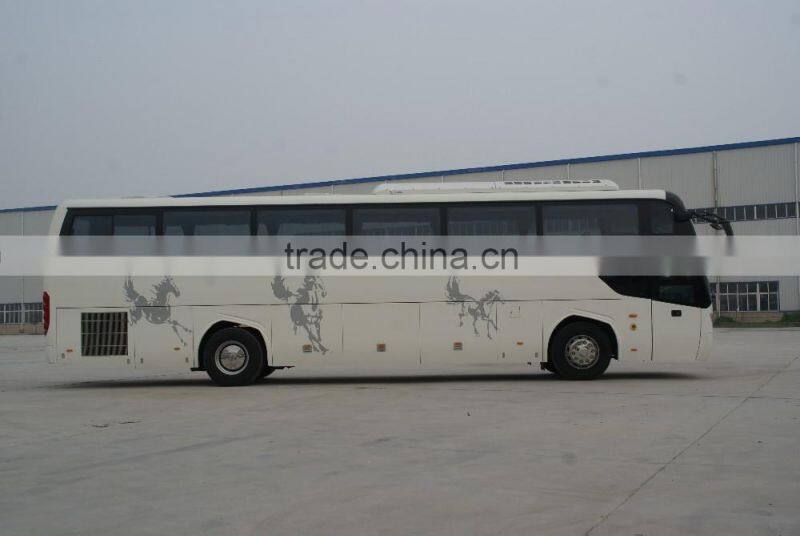

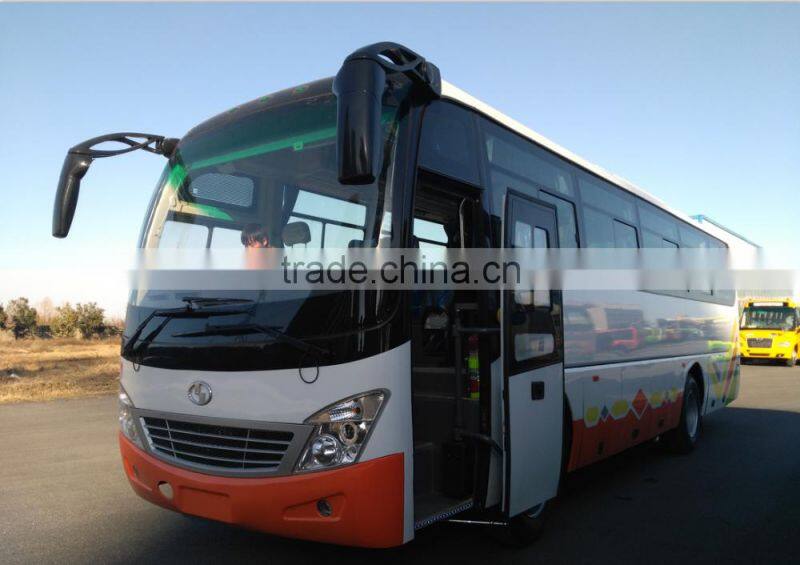

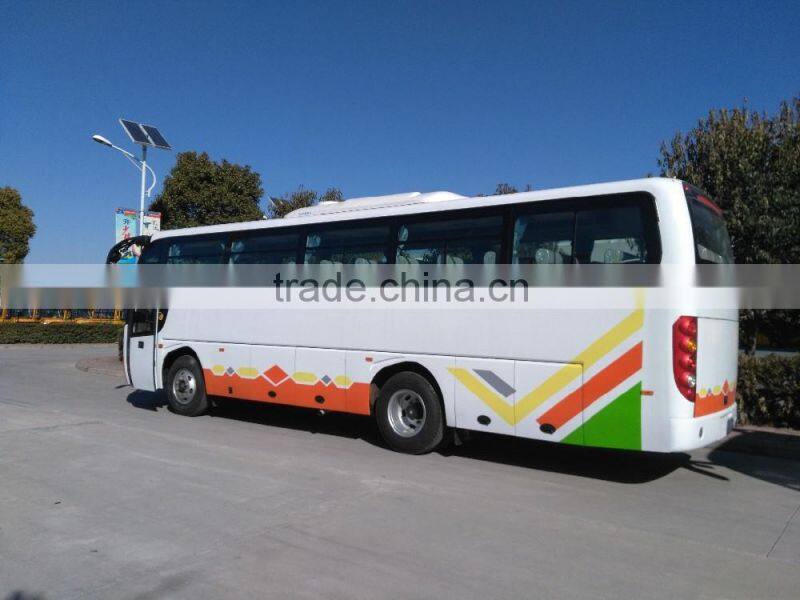

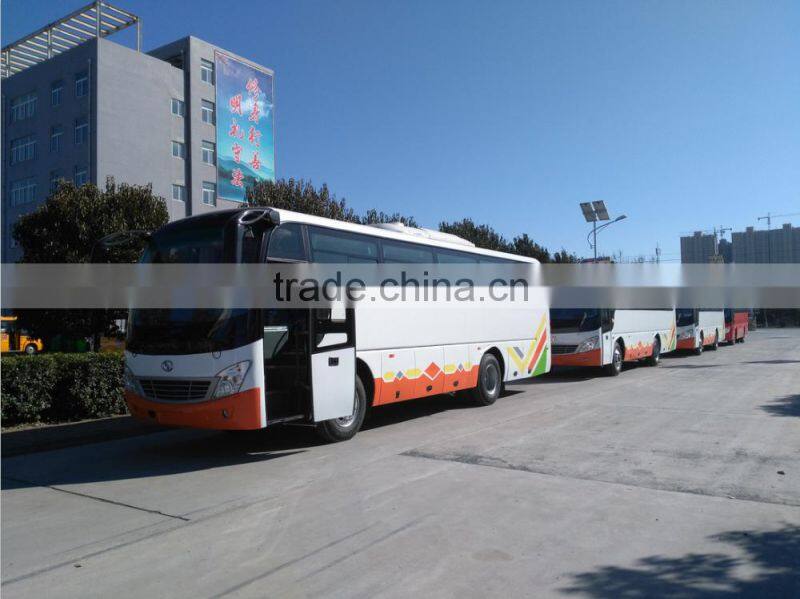

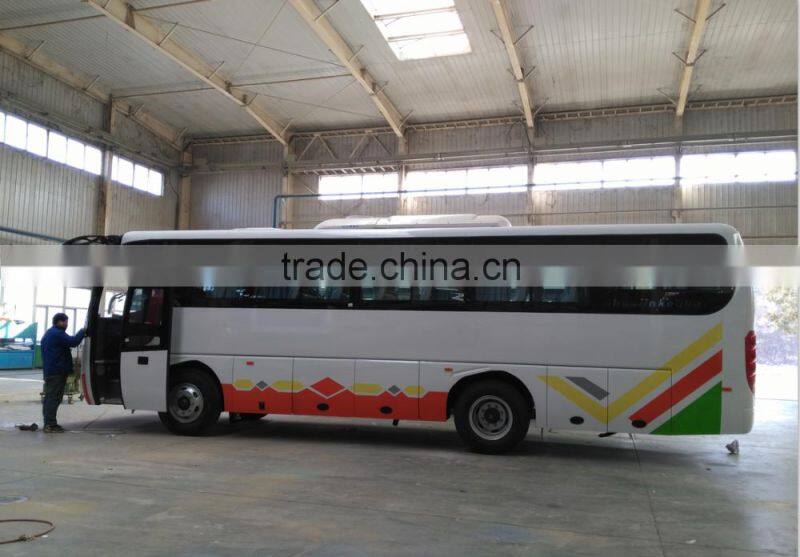

11m 55seats Luxury Passenger Coaster Bus

ITEM

SLG6109CE RHD

DIMENSION

L*W*H(MM)

10990*2500*3650

SEAT CAPACITY

53+1+1 seats

FRAMEWORK

STRAIGHT BEAM

ENGINE

MODEL

 FRONT Cummins EQB210-20

TYPE

4 CYLINDER IN-LINE

RATED-POWER (KW/R/MIN)

155KW

MAX. TORQUE (N.M)

600/600/600

EMISSION STANDARD

EURO II

FUEL TYPE

DIESEL

CLUTCH

TYPE

SINGLE PLATE DRY CLUCH

CLUTCH BOOST

WITH  PUMP

TRANSMISSION

MODEL

ZF TECHNOLOGY-QJ

MAX. TORQUE

700

SHIFTS

ZF TECHNOLOGY qijiang 6 SPEED MANUA

CONTROL SYSTEMS

FLEXIBLE  SHAFT

FRONT AXLE

5.0T

REAR AXLE

10.0T

BRAKING SYSTEM

STEERING

POWER STEERING

SERVICE BRAKE

DUAL-CIRCUIT AIR BRAKING SYSTEM

PARKING BRAKE

Diaphragm spring brake

F/R BRAKING DIA.

¢400

F/R BRAKING SHOE Width

130/155

SUSPENSION STYLE

STEEL LEAF SPRING

TYRE

10.00R20

OIL TANK CAPACITY

256L

ITEMS

NAME

SPECIFICATION

1

FRONT WINDSCREEN

FIXED, LAMINATED GLASS,

2

REAR WINDSCREEN

FIXED, TOUGHENED GLASS

3

INSTRUMENT BOARD

WHOLE SEALED

4

INNER DECORATION

PLASTICS

5

REARVIEW MIRROR

POLE TYPE

6

INSIDE MIRROR

STANDARD

7

PASSENGER DOOR

PNEUMATIC OUT SWING DOOR

8

SIDE WINDOW

WHOLE SLIDING

9

DRIVER SEAT

VINYL FRONT/ REAR ADJUSTABLE  DRIVING SEAT

10

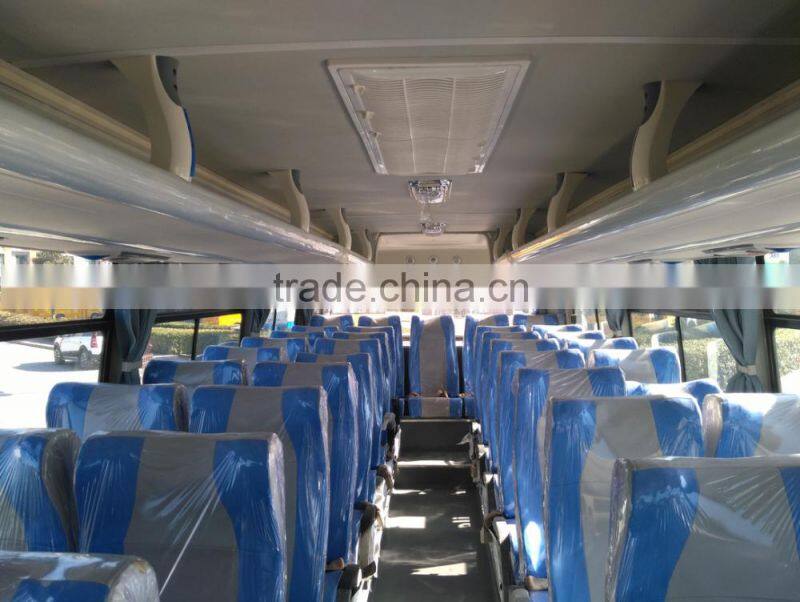

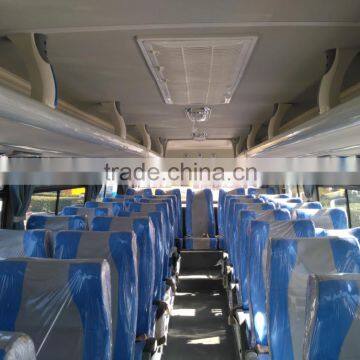

PASSENGER SEAT

ADJUSTABLE PASSENGER SEAT

11

CLEARSTORY

1UNIT

12

HANDRAIL

door handrail

13

FLOOR BOARD

BAMBOO AND RUBBER FLOWER

14

RAIN WIPER

YES

15

RADIO

AM/FM RADIO

16

FROTH

FRONT,REAR,TOP AND SIDE (10 MM THICK)

17

ANTISEPSIS GRADE

SUPERFINE

18

REAR LUGGAGE BOX

YES

19

FRONT DEFROST

YES

20

AIR CONDITIONER

YES
