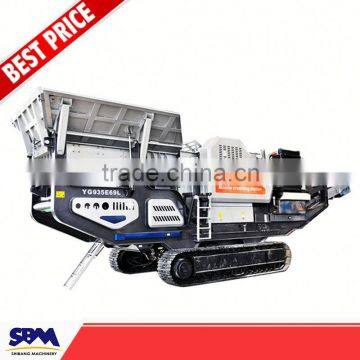

SBM Hot sale high quality and low price portable plant
- shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
China supplier High performance Goldmine mobile crushing plant
-
China supplier High performance Chalcopyrite mobile crushing plant
-
China supplier new product pyrite portable crushing machine price
-
SBM high performance and low price hpc 400 cone crusher
-
Hot sales high performance mobile cone crusher for Conglomerate
-
SBM hot sale high quality and low price portable impact crusher
Product Details
| Condition | New | Type | Other, mobile crusher | |
| Application | stone, ore | Motor Type | AC Motor | |
| Power(W) | 200kw | Capacity(t/h) | 50 - 800 TPH | |
| Place of Origin | Shanghai, China | Brand Name | SBM | |
| Model Number | Y3S1848CS75 | Dimension(L*W*H) | 13050*2830*4350 | |
| Weight | 100t | Certification | CE,ISO | |
| Warranty | 12 Months | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Introduction of portable plant
SBM portable plant is applied to multistage crush large materials, and then screen the discharged materials according to their different specifications.SBM is a professional supplier of portable plant . portable plant is mainly used in the fine crushing after primary crushing. It is used in crushing hard and abrasive materials.
In portable applications with requirements for efficient secondary, tertiary and fine crushing with high productivity, good reduction ratio and excellent cubicity requirements, the ultimate choice is the SBM portable plant. cone crushers feature a unique combination of crusher speed,This combination has proved superior in providing higher capacity and excellent product quality, and in providing a wider range of application suitability.
The capacity range of portable plant is70—800t/h.The portable plant has the advantage of reasonable matching, unobstructed discharge all line, reliable working, convenient operation, high efficiency and energy saving . Especially the mobility is very good, so it can extend with the raw material places or the construction site. It can also make multiple matching to get different product requirements
portable plant Advantages:
1.Great mobility:
portable plant and Screening Plants is of short length. Different crushing equpment is separately installed on a separate mobile chassis. Its short wheelbase and tight turning radius mean they can be transported on highway and moved at crushing sites
2.Lower transportation cost:
portable plant and Screening Plants can crush materials on-site. It is unnecessary to carry the matrials from one site and then crush them in another one, which can greatly lower the transporting cost for off-site crushing.
3.Equipped with efficient cone crusher, it has excellent crushing performance.
4.Optimized crushing cavity can significantly increase crushing ratio and output.
5.It features great production capacity, high reliability, easy maintenance, which greatly reduced the production costs.
portable plant Technical Data
| Model | Car Body | Vibrating Screen | Crusher | Belt Conveyor (standard configuration) | Engine (Optional) | Overall dimension (mm) | |||
| Model | Feeding Size (mm) | Power (kw) | Model | Feeding Size (mm) | Size(m) | Power (kw) | |||
| Y3S1848CS75 | Two-Spindle | 3YA1848 | ≤400 | 4-18.5 | CS75 | 6-75 | B800×7.5 | 200 | 13050×2830×4350 |
| Y3S1860CS160 | Three-Spindle | 3YA1860 | ≤400 | 4-22 | CS160 | 6-160/185 | B800×8.5 | 500 | 14300×2830×4380 |
| Y3S1860HP220 | Three-Spindle | 3YA1860 | ≤400 | 4-22 | HPC220 | 4-220 | B800×8.5 | 550 | 14300×2830×4380 |
| Y3S2160HP220 | Three-Spindle | 3YA2160 | ≤400 | 4-30 | HPC220 | 4-220 | B1000×8.5 | 550 | 14300×3150×4380 |
SHANGHAI SHIBANG MACHINERY CO., LTD is one high-tech enterprise, which involves R&D, production, sales and service as well. In the past 20 years, we devote to producing mining equipments, sand making machines and industrial grinding mills, offering expressway, rail way and water conservancy projects the solution of making high grade sand and matched equipments.
The head office of SBM is in Shanghai- the international financial centre. Here we have modern production base of 2.3 million square meters, professional R&D institution and technology team, which make us world-class company. Here all SBM machines are designed produced, assembled and texted according to the ISO9001:2008.
Till now, our products are sold to 130 countries, being the popular equipments in global crushing and grinding industry. With the development of our SBM, we would like to help more and more customers start their business in mining and construction industries, offer them the best solution, much more advanced machinery and better service.
1. We are Manufacturer (Not Dealer):
All machineries from SHANGHAI SHIBANG MACHINERY CO., LTD are made by ourselves, with lower price, good quality and assured full after service.
2. Training & Service:
1.We provide you with the prophase plan, process flow design and manufacture equipment according to your special demand.
2.Send technicians to the jobsite for guiding the installation and adjustment, training operators and finishing the check and accept together with you.
3.We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.
3. If you are new for this business:
Many thanks for your trust; we can provide you with design scheme for complete production lines, spot inspection and operator training according to your demands and the conditions of applied spot, we can help you choose the right equipments.
4. We’d like to recommend a suitable model for you and send you a best quotation. So please give us some more information about your requirement in your enquiry.
♥ What is the type and size of raw material?
♥ What is your required capacity(t/h)?
