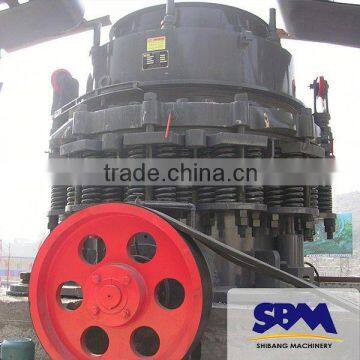

SBM high quality and large capacity Peridot cone crushing plant
- 100 Set / Sets per Month
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
High capacity professional crushers conic with CE approved
-
Hot sale german technical basalt processing machine in china with CE
-
ISO approved environmental protection pe 400x600 jaw crusher price
-
Hot sale competitive price hydraulic cone breakers with high quality
-
Hot sale high quality stone break machine, stone breaking machine with CE
-
German technical high quality lager capacity stone crusher plant prices
Product Details
Condition | New | Type | Cone Crusher | |
Application | stone,ore, Mining,Quarry,chemical industry and Construction | Motor Type | AC Motor | |
Power(W) | 30-280KW | Capacity(t/h) | 20-1000TPH | |
Place of Origin | Shanghai, China | Brand Name | SBM | |
Model Number | CS series | Dimension(L*W*H) | 5200x4300x4700 | |
Weight | 30t | Certification | CE,ISO | |
Warranty | 12 Months | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Peridot cone crushing plant is suitable to crush various kinds of ores and rocks of medium or above medium hardness, and Peridot cone crushing plant is of stable structure, high efficiency, easy adjustment, and economically etc. The spring system of crusher acts as an overloading protection system that allows metals to pass through the crushing chamber so as not to damage the Peridot cone crushing plant .
The safety system uses dry oil and water as two kinds of sealed formation to make plaster powder and engine oil separated to make sure reliable performance. The type of crushing chamber depends upon the size of feeding and fineness of the crushed product. The standard type (CS) is applied to medium crushing, the medium type is applied to medium or fine crushing and the short head type is applied to fine crushing.
Product features of Peridot cone crushing plant :
1. Higher capacity and less wear costs.
2. Wide range of application suitability.
3. Easy to maintain, reduce the downtime and maintenance costs.
4. Stable running performance and easy operation.
5. Stable bevel wheel transmission device.
6. Balanced runout rotation ensures best capacity.
7. Proper operation, continuously load until the machine shuts down scheduled.
Operation Principles of Peridot cone crushing plant :
1. Driven by the electric-motor, the eccentric shaft rotates with the triangle belt, big wheel, transmission shaft, small and big bevel gear.
2. Driven by the eccentric shaft the Peridot cone crushing plant axis will move in circle , which makes the mantle close or leave the cone from time to time. And then the materials will be crushed by continuously compacting, striking, and bending in the circle crushing cavity between the fixed and moving cone.
3. After several times’ repeating, the materials will be crushed to the required size and then they will be discharged by the discharging opening.
The application of Peridot cone crushing plant
Peridot cone crushing plant has been widely applied in the field of mining industry, metallurgical industry, chemical industry, silicate industry. And now Peridot cone crushing plant has been used to proceed the mid hard crushing of some materials like pebbles, iron ore, limestone, copper ore, quartz, granite, sandstone and so on.
Technical Parameter of Peridot cone crushing plant :
Model | Movable Cone Diametermm (inch) | Chamber Style | Opening Side | Closed Side | Discharging Opening (mm) | REV (r/min) | Power (kw) | Motor Model | Capacity (t/h) | Machine Size (mm) |
Max.Feeding (mm) | ||||||||||
CSB75 | 900 (3′) | medium | 83 | 102 | 9-22 | 580 | 6-75 | Y315S-6/75 | 45-91 | 2821x1880 x2164 |
coarse | 159 | 175 | 13-38 | 59-163 | ||||||
CSD75 | 914 (3′) | fine | 13 | 41 | 3-13 | 580 | 6-75 | Y315S-6/75 | 27-90 | 2821x1880 x2410 |
medium | 33 | 60 | 3-16 | 27-100 | ||||||
coarse | 51 | 76 | 6-19 | 65-140 | ||||||
CSB160 | 1295 (4 1/4′) | fine | 109 | 137 | 13-31 | 485 | 6-185 | Y355M2-6/185 | 109-181 | 2800x2342 x2668 |
medium | 188 | 210 | 16-31 | 132-253 | ||||||
coarse | 216 | 241 | 19-51 | 172-349 | ||||||
CSD160 | 1295 (4 1/4′) | fine | 29 | 64 | 3-16 | 485 | 6-160 | Y355M1-6/160 | 36-163 | 2800x2342 x2668 |
medium | 54 | 89 | 6-16 | 82-163 | ||||||
coarse | 70 | 105 | 10-25 | 109-227 | ||||||
CSB240 | 1650 (5 1/2′) | fine | 188 | 209 | 16-38 | 485 | 6-240 | 181-327 | 3911x2870 x3771 | |
medium | 213 | 241 | 22-51 | 258-417 | ||||||
coarse | 241 | 268 | 25-64 | 299-635 | ||||||
CSD240 | 1650 (5 1/2′) | fine | 35 | 70 | 5-13 | 485 | 6-240 | 90-209 | 3917x2870 x3771 | |
medium | 54 | 89 | 6-19 | 136-281 | ||||||
coarse | 98 | 133 | 10-25 | 190-336 | ||||||
CSB400 | 2134 (7′) | fine | 253 | 278 | 19-38 | 435 | 6-400 | 381-726 | 5200x4300 x4700 | |
medium | 303 | 334 | 25-51 | 608-998 | ||||||
coarse | 334 | 369 | 31-64 | 870-1400 | ||||||
CSD400 | 2134 (7′) | fine | 51 | 105 | 5-16 | 435 | 6-400 | 190-408 | 5200x4300 x4700 | |
medium | 95 | 133 | 10-19 | 354-508 | ||||||
coarse | 127 | 178 | 13-25 | 454-599 |
SHANGHAI SHIBANG MACHINERY CO., LTD is one high-tech enterprise, which involves R&D, production, sales and service as well. In the past 20 years, we devote to producing mining equipments, sand making machines and industrial grinding mills, offering expressway, rail way and water conservancy projects the solution of making high grade sand and matched equipments.
The head office of SBM is in Shanghai- the international financial centre. Here we have modern production base of 2.3 million square meters, professional R&D institution and technology team, which make us world-class company. Here all SBM machines are designed produced, assembled and texted according to the ISO9001:2008.
Till now, our products are sold to 130 countries, being the popular equipments in global crushing and grinding industry. With the development of our SBM, we would like to help more and more customers start their business in mining and construction industries, offer them the best solution, much more advanced machinery and better service.
In order to recommend suitable design for you, please kindly tell me:
♥ What is your raw material to be crushed, is it soft stone (like limestone, dolomite) or hard stone (like granite, basalt, river stone, etc)?
Impact crusher is suitable as secondary crusher for soft stone, while cone crusher is suitable as secondary crusher for hard stone.
♥ What is the maximum feed size of your raw material?
♥ What are output sizes you want?
Normally for road construction, it is 0-40mm, while for aggregate, it is 0-20mm.
♥ What is per hour capacity you want?
♥ Are you the end user or will you re-sell the machinery to your clients?
