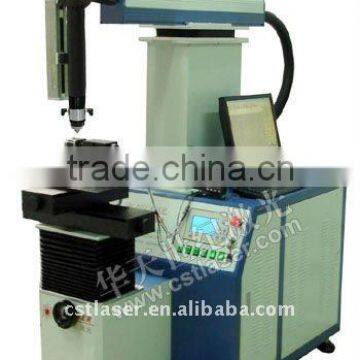

Metal laser cutter/welder
Negotiable
/ Set
1 Set(Min. Order)
- shenzhen
- Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | HTLASER | |
| Model Number | HT-LCW500 |
Product Description
Specifications
The pulse YAG laser generator uses ceramic reflecting converging cavity imported from the Britain and Nd:YAG double-lamp pump.
Introduction
The laser cutter/welder is a system equipment of optical, mechanical and electronic integration. It can implement noncontact cutting and welding on metal or nonmetal sheets or pipes. It is suitable for the laser cutting and welding of stainless steel plate, iron plate, silicon chip, ceramic plate, titanium alloy, epoxy, A3 steel, diamond, etc. It is a type of multifunctional process equipment, featuring stable running, high processing quality, high efficiency, simple operation and easy maintenance.
Features
The pulse YAG laser generator uses ceramic reflecting converging cavity imported from the Britain and Nd:YAG double-lamp pump. The control system uses industrial PC to control the laser power supply and work bench to realize the automatic control of space coordinates and laser switch.
Highly efficient protection and emergency shutdown devices are integrated to ensure safety.
Highly efficient protection and emergency shutdown devices are integrated to ensure safety.
Suitable materials and application
Laser cutting and welding: stainless steel plate, iron plate, silicon chip, ceramic plate, titanium alloy, epoxy, A3 steel, diamond, etc; ferrous metal and non-ferrous metal (e.g. carbon steel, stainless steel, ceramic).
Technical parameters
Model | HT-LCW500 |
Laser type | ND:YAG |
Maximum laser power | 500W |
Laser wavelength | 1064nm |
Minimum line width | 0.20mm |
Cutting depth | ≤3mm |
Repeating positioning precision | ±0.05mm |
Pulse frequency | ≤200Hz |
Control system | PC |
Power supply | 380V/50Hz/100A |
Work bench stroke | 200*200mm to 1200*1200mm |
System dimensions | |
Master unit | 1600*800*1800mm |
